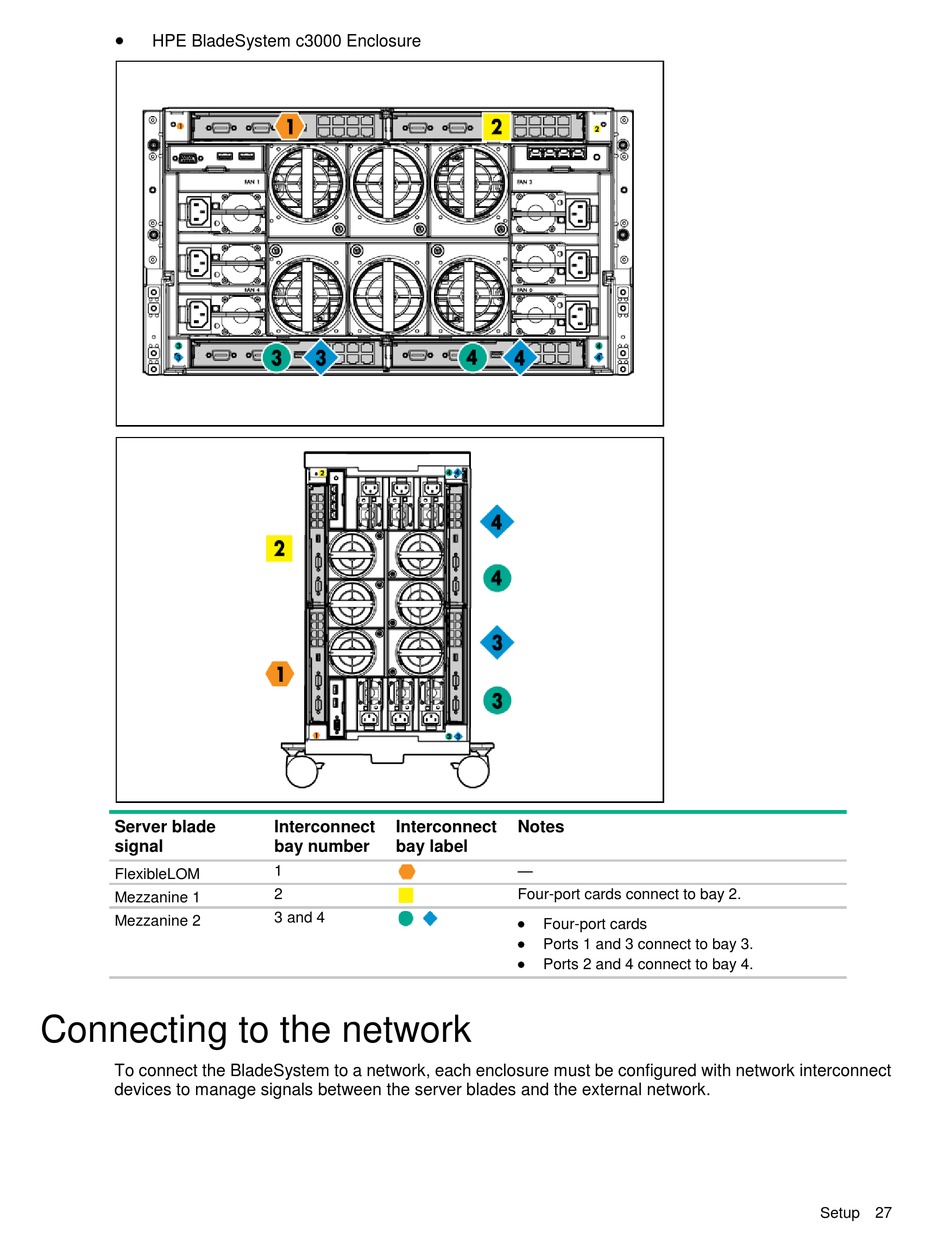

HPE BladeSystem c3000 Enclosure
Server blade
signal
FlexibleLOM
Mezzanine 1
Mezzanine 2

Connecting to the network

To connect the BladeSystem to a network, each enclosure must be configured with network interconnect
devices to manage signals between the server blades and the external network.
Interconnect
Interconnect
bay number
bay label
1
2
3 and 4
Notes
Four-port cards connect to bay 2.
Four-port cards
Ports 1 and 3 connect to bay 3.
Ports 2 and 4 connect to bay 4.
Setup 27
