INSTALLATION OF THE INDOOR UNIT

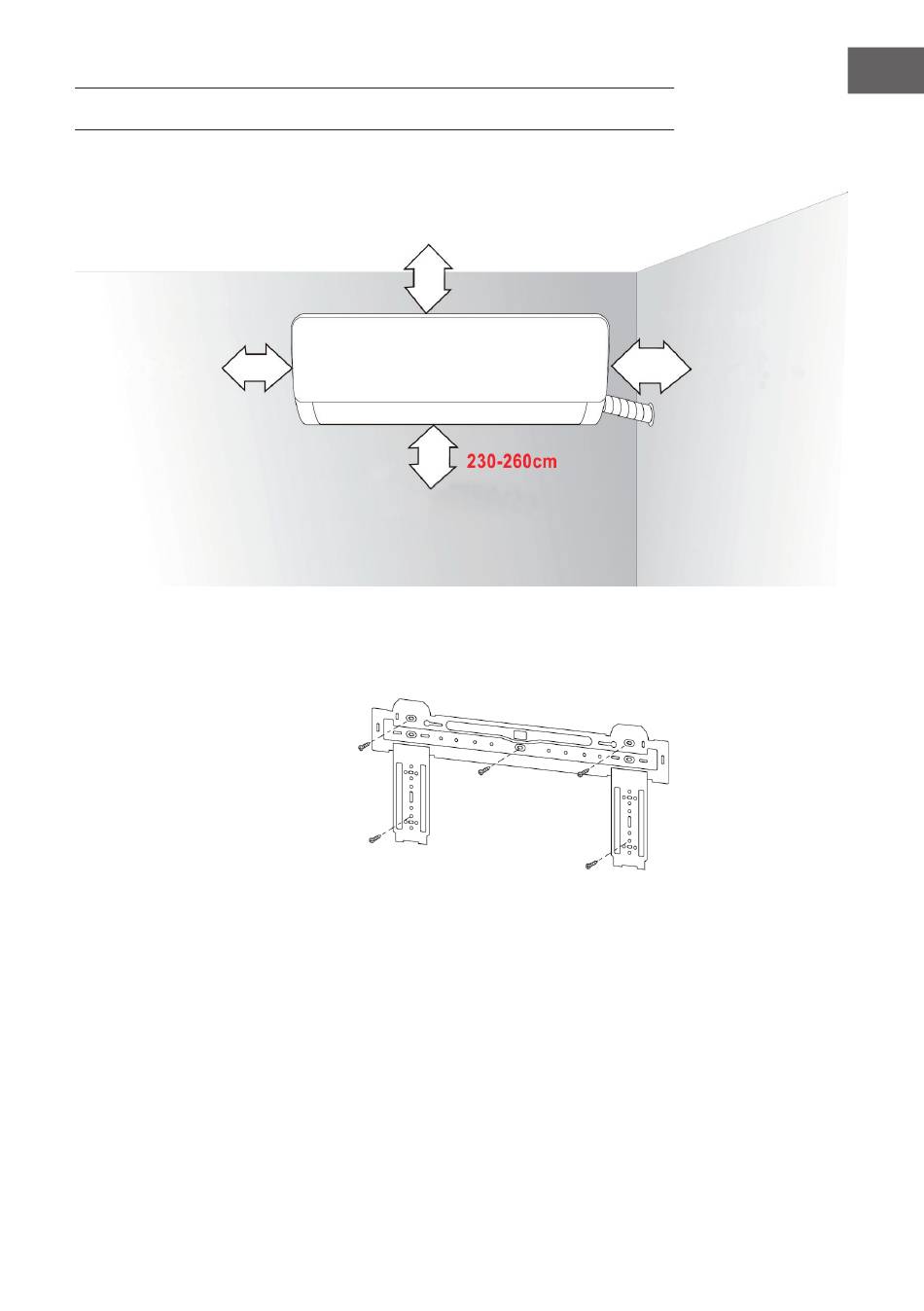

Dimension drawing
Space to the wall
20 cm
Mounting plate
1. The wall for installation of the
indoor unit shall be hard and
firm, so as to prevent vibration.
2. Use the "+" type screw to fasten
the peg board, horizontally
mount the peg board on the wall,
and ensure the lateral horizontal
and longitudinal vertical.
3. Pull the peg board by hand
after the installation, to confirm
whether it is solid.
Space to the ceiling
15 cm
Space to the floor
Space to the wall
20 cm
