GEZE Perlan KS series Montageanleitung Seite 90

5 Nm
4
5
6
30
GB

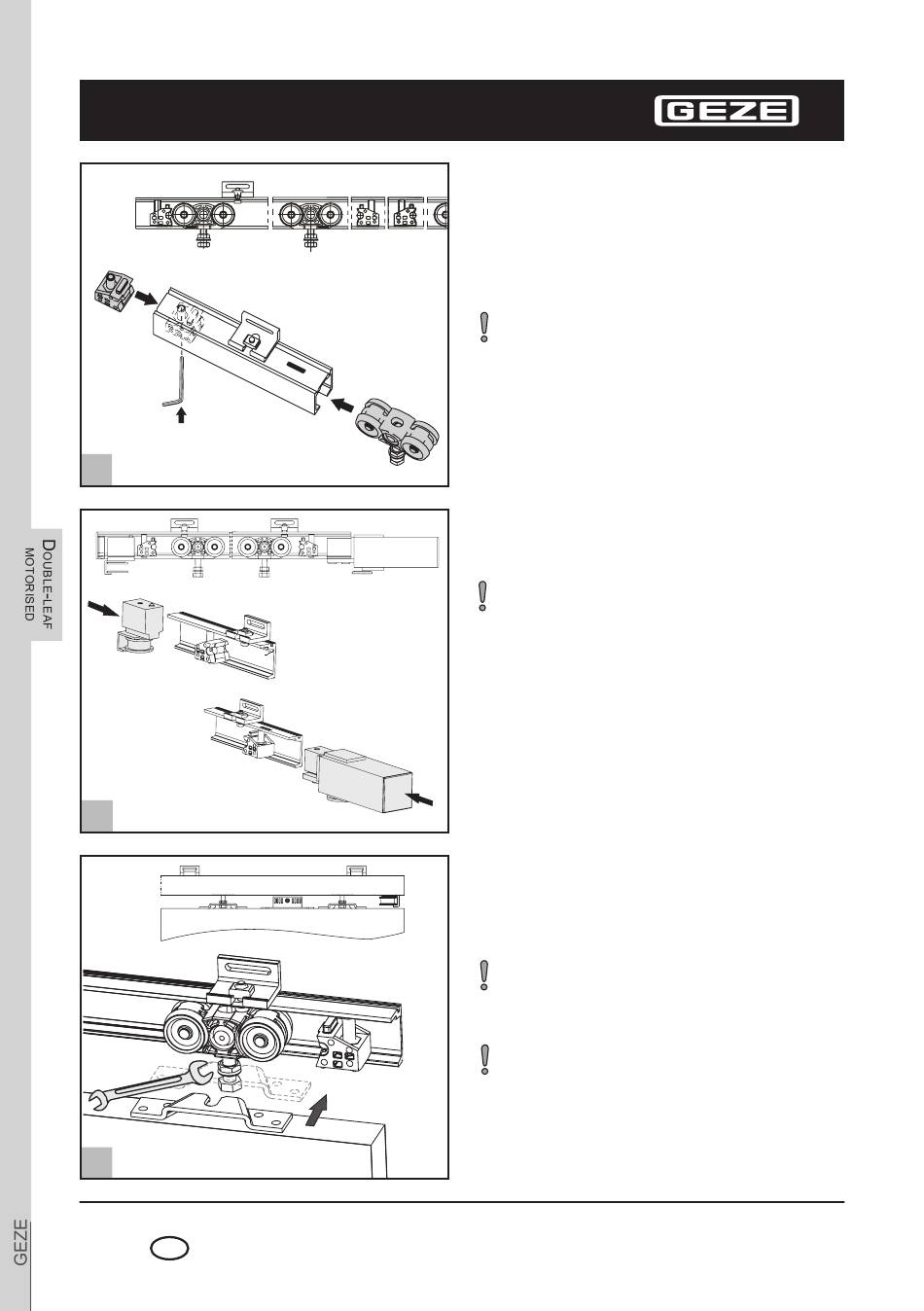

5.3 Assembling the running rail
► Starting from the left, slide components
into the track in the following order:
1× in rail buffer, 2× roller carriage, 2× in
rail buffer, 2× roller carriage, 1× in rail
buffer.
Observe direction of buffers.
► Slide in rail buffer to the desired end stop
position and tighten to 5 Nm.
►
Slide deflection pulley into the track.
Do not secure the deflection pulley.
►
At the opposite rail end, slide motor into
the track and secure.
5.4 Fitting the door leaves
► Engage door leaves in mounting bolt.
Firmly tighten lock nut.
For wall mounting: Fit the door leaf whose
coupling bracket faces the wall first as its
belt clamp screw is difficult to access.
Adjust leaf height by turning the suspen-
sion bolt clockwise or anticlockwise before
tightening the lock nut.
