GEZE Perlan KS series Montageanleitung Seite 105

8.2 c -
eilinG mounted railS
Clips cover panel for ceiling-mounting
120991 std. length 6000 mm
120437 cut to length (anodised)
120436 cut to length (RAL coated)
45 17
35
Ceiling mounting
►

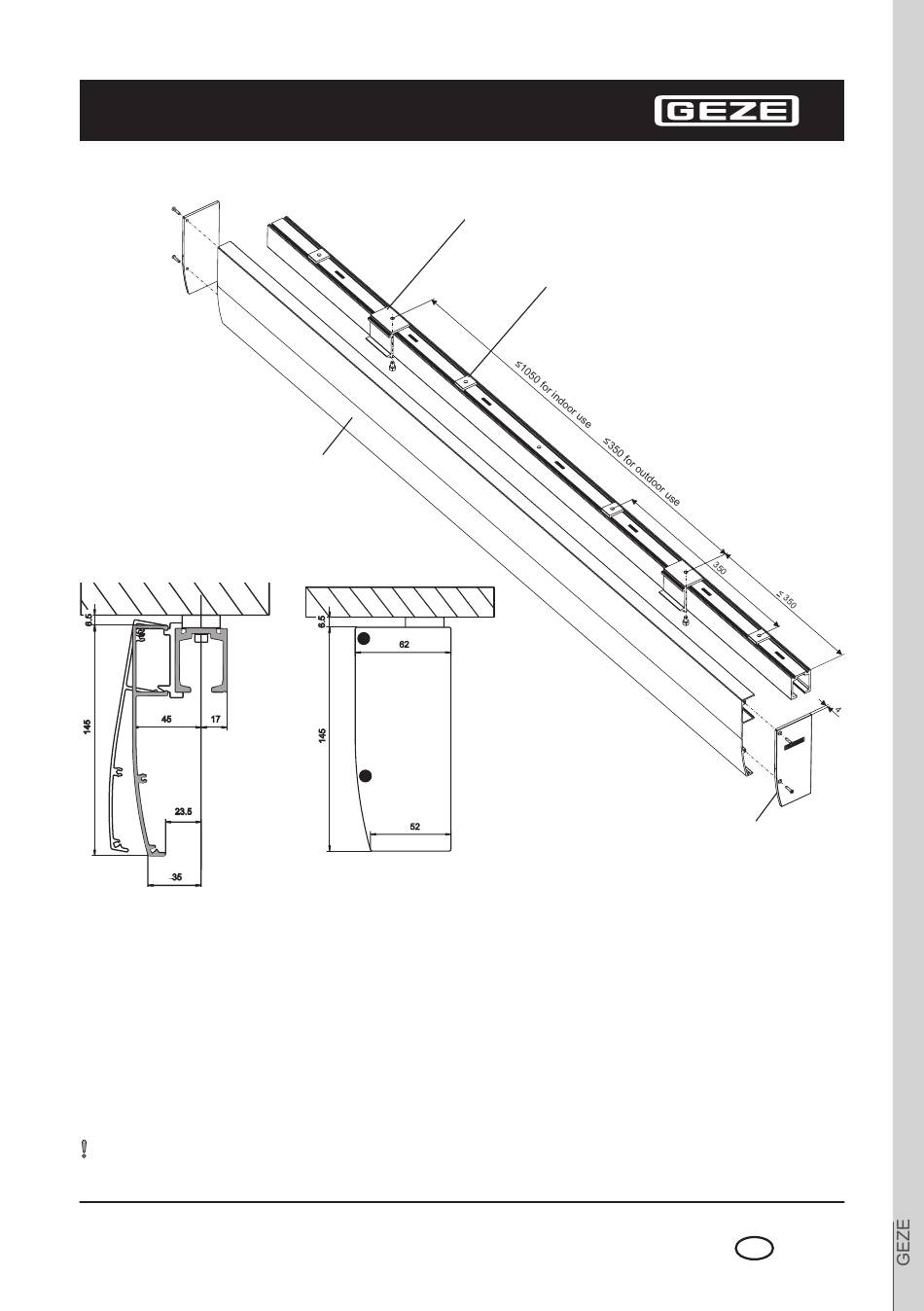

Glue the spacers with adhesive tape centred over the holes of the track. Observe the distances shown in the drawing: every
other hole is used.
►
Screw-fit the attachment parts in the free holes in the running rail. The space between the brackets should not exceed
1050 mm for indoor use or 350 mm for outdoor use.
►
Fit the prepared track to the ceiling through the spacers.
►
Lay the clips cover panel with its upper side onto the upper groove of the attachment parts and align it with the rail.
► Apply horizontal pressure to the bottom edge of the clips cover panel to engage the panel in the bracket.
►
Repeat this procedure at every attachment part.
►
If applicable, screw-fit the optional side parts to the clips cover panel.
To remove the trim panel, release the panel separately from each bracket.
attachment parts
122928 (set of 5)
Spacer for ceiling-mounting, self-adhesive
122943 (set of 20)
62
52
Pair of side parts
for ceiling mounting
119483 anodised
123703 RAL coated
45
