Windhager BioWIN 2 Touch Montageanleitung Seite 18

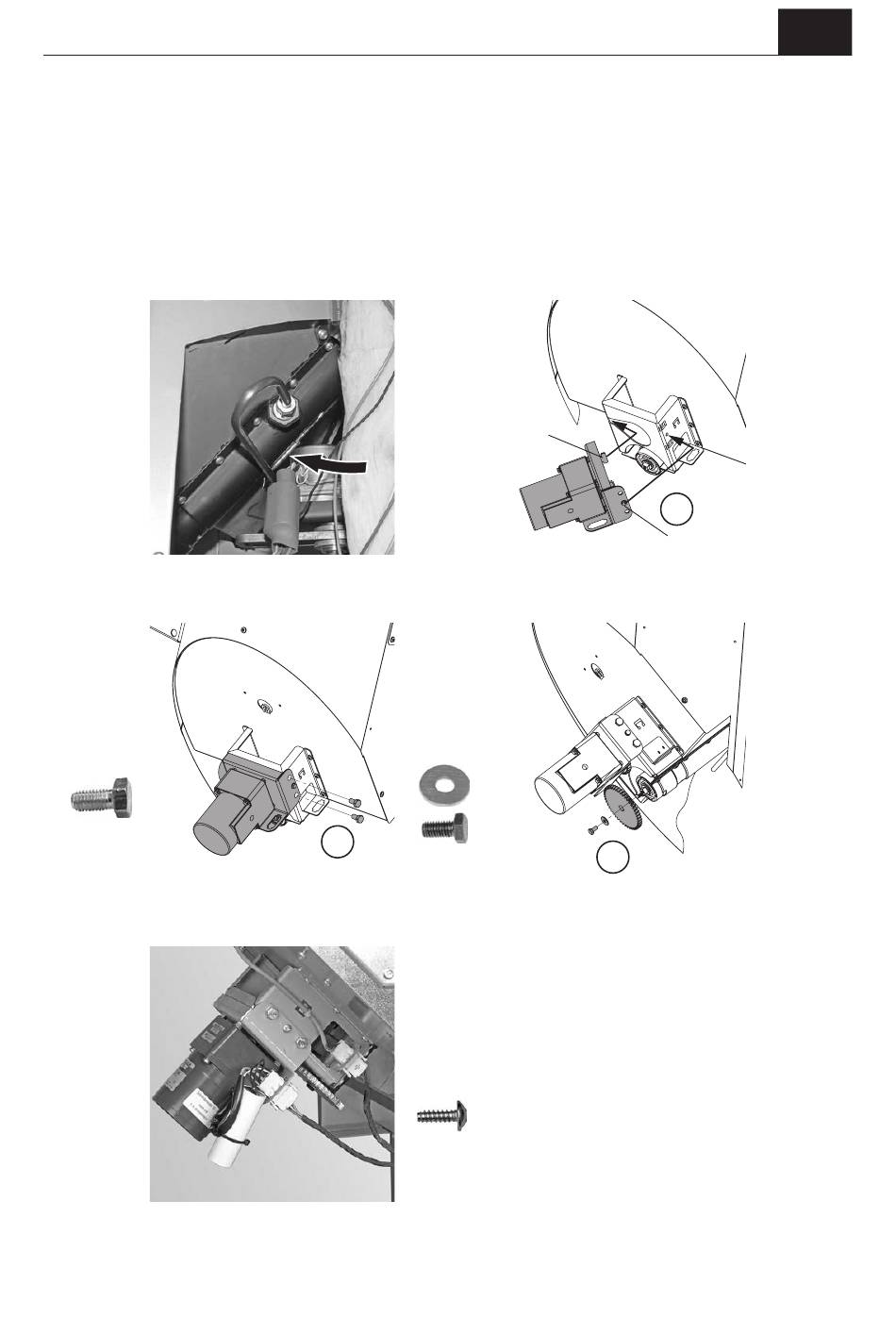

2. Installation sequence
– Insert sensor for safety thermostat auger tube into the holder as far as possible – Fig. 15.
– Suspend auger motor (located in the combustion chamber of the pellet boiler) at back via lug and at front from cen-
tering screw – Fig. 16.
– Secure auger motor with 2 M8x16 screws – Fig. 17.
– Screw gear to auger at the bottom of the hopper with M6x12 hexagon screws and a U-washer – Fig. 18.
– Plug in the auger motor and proximity switch plugs – Fig. 19.
Fig. 15
2 x
M8x16
Fig. 17
3
Fig. 19
Insert sensor for safety thermostat au-
ger tube as far as possible
2
Screw the auger motor into place
Connect plugs for auger motor
and proximity switch
Lug
1
Fig. 16 Hook the auger motor into place
1 x
M6x12
Fig. 18 Mount gear
2 x
18
1
Centering screw
3
EN
3
