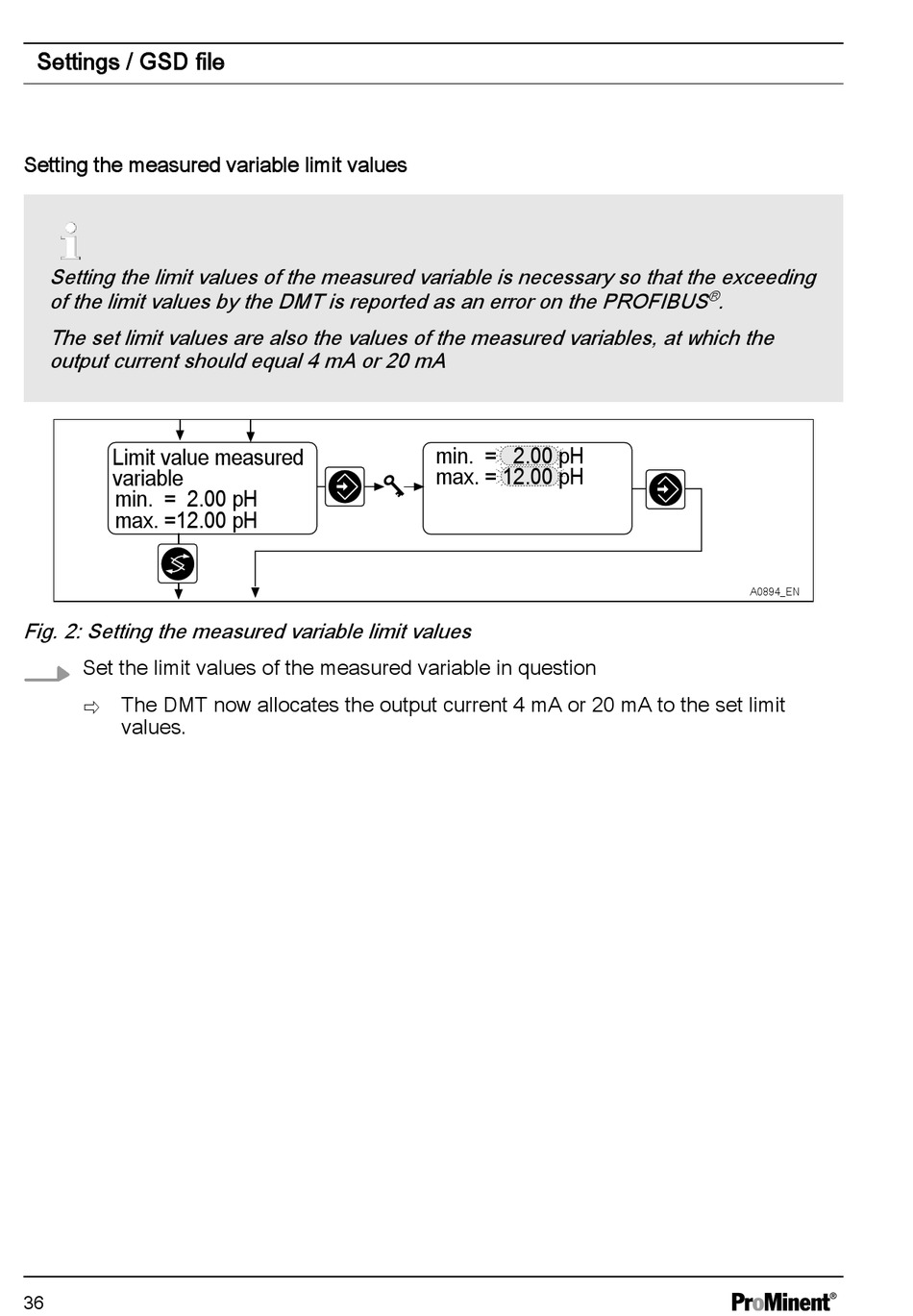

Settings / GSD file
Setting the measured variable limit values
Setting the limit values of the measured variable is necessary so that the exceeding
of the limit values by the DMT is reported as an error on the PROFIBUS
The set limit values are also the values of the measured variables, at which the
output current should equal 4 mA or 20 mA
Limit value measured
variable
min. = 2.00 pH
max. =12.00 pH
Fig. 2: Setting the measured variable limit values
Set the limit values of the measured variable in question
ð The DMT now allocates the output current 4 mA or 20 mA to the set limit
values.
36
min. = 2.00 pH
max. = 12.00 pH
® .
A0894_EN
