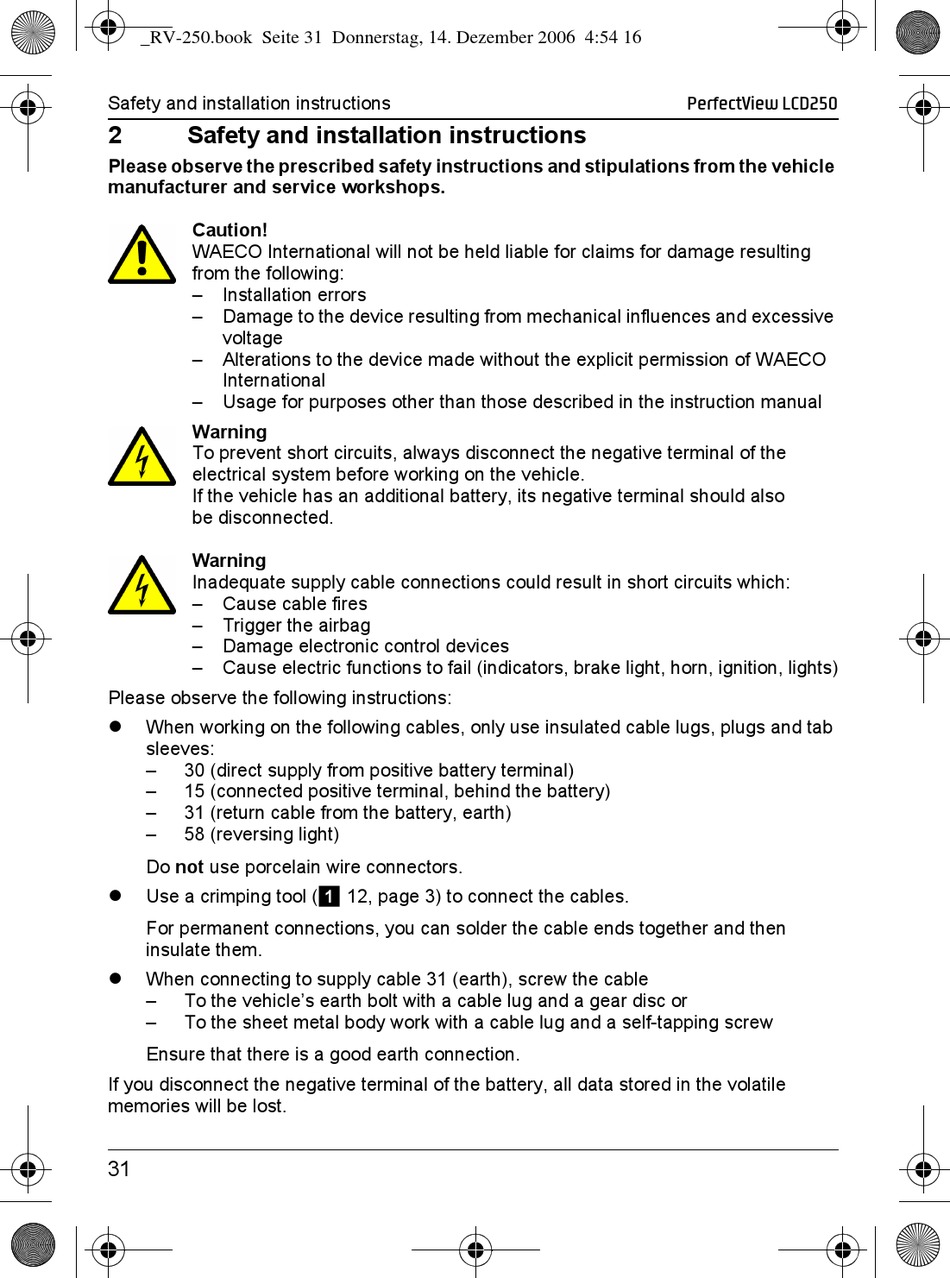

Safety and installation instructions

2 Safety and installation instructions
Please observe the prescribed safety instructions and stipulations from the vehicle
manufacturer and service workshops.
Caution!
WAECO International will not be held liable for claims for damage resulting
from the following:
– Installation errors
– Damage to the device resulting from mechanical influences and excessive
voltage
– Alterations to the device made without the explicit permission of WAECO
International
– Usage for purposes other than those described in the instruction manual
Warning
To prevent short circuits, always disconnect the negative terminal of the
electrical system before working on the vehicle.
If the vehicle has an additional battery, its negative terminal should also
be disconnected.
Warning
Inadequate supply cable connections could result in short circuits which:
– Cause cable fires
– Trigger the airbag
– Damage electronic control devices
– Cause electric functions to fail (indicators, brake light, horn, ignition, lights)
Please observe the following instructions:
When working on the following cables, only use insulated cable lugs, plugs and tab
sleeves:
– 30 (direct supply from positive battery terminal)
– 15 (connected positive terminal, behind the battery)
– 31 (return cable from the battery, earth)
– 58 (reversing light)
Do not use porcelain wire connectors.
Use a crimping tool (1 12, page 3) to connect the cables.
For permanent connections, you can solder the cable ends together and then
insulate them.
When connecting to supply cable 31 (earth), screw the cable
– To the vehicle's earth bolt with a cable lug and a gear disc or
– To the sheet metal body work with a cable lug and a self-tapping screw
Ensure that there is a good earth connection.
If you disconnect the negative terminal of the battery, all data stored in the volatile
memories will be lost.
31
PerfectView LCD250
