RTW DigitalMonitor 10500X-PLUS
3. Remove the two screws at the bottom of the DigitalMonitor 10500X-PLUS
(A) which hold the connector panel in place. Take out the three screws
(B) fixing the main pcb. Carefully remove connector panel and main pcb
(C) and store them at a ESD protected place.

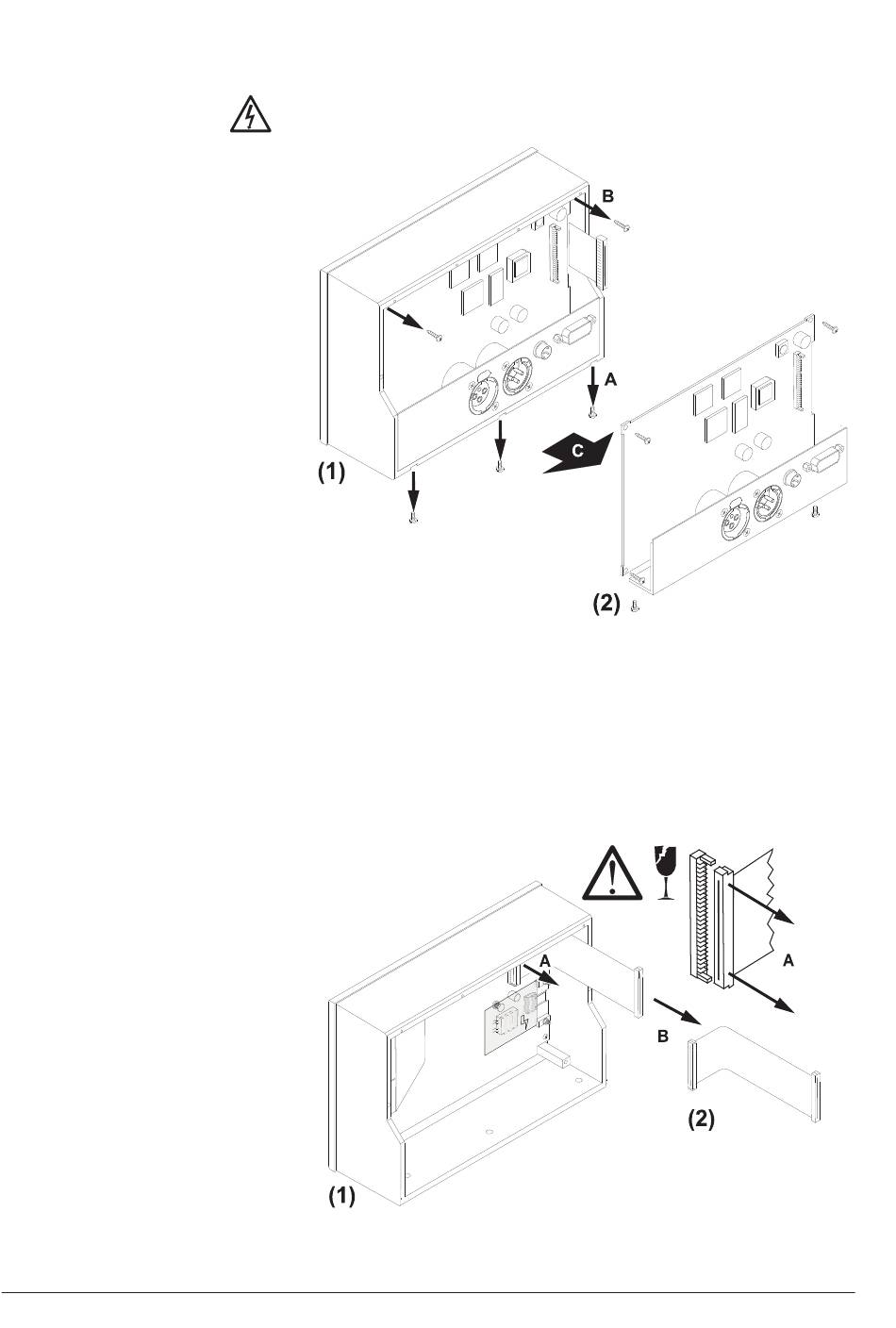

Fig. E 7-4: Unscrew and removal of connector panel and main pcb
4. Loose carefully the wide locker (right above on the display pcb) of the
other side of the connecting flat cable. Avoid damage of the locker and
the connecting flat cable because of canting. Store the cable with the
discarded main pcb. (Fig. E 7-5)
Fig. E 7-5: Removal of the connecting flat cable from the display pcb
E 7 Service • E 7.2 Display Exchange
(Fig. E 7-4)
230
