RTW DigitalMonitor 10500X-PLUS
The combination of the Phantom Source Indicator (PSI) with the correlator
bargraph is also possible. The selections can be made in the SSA menu (see
beneath and Chapter E 5.2.7.1)

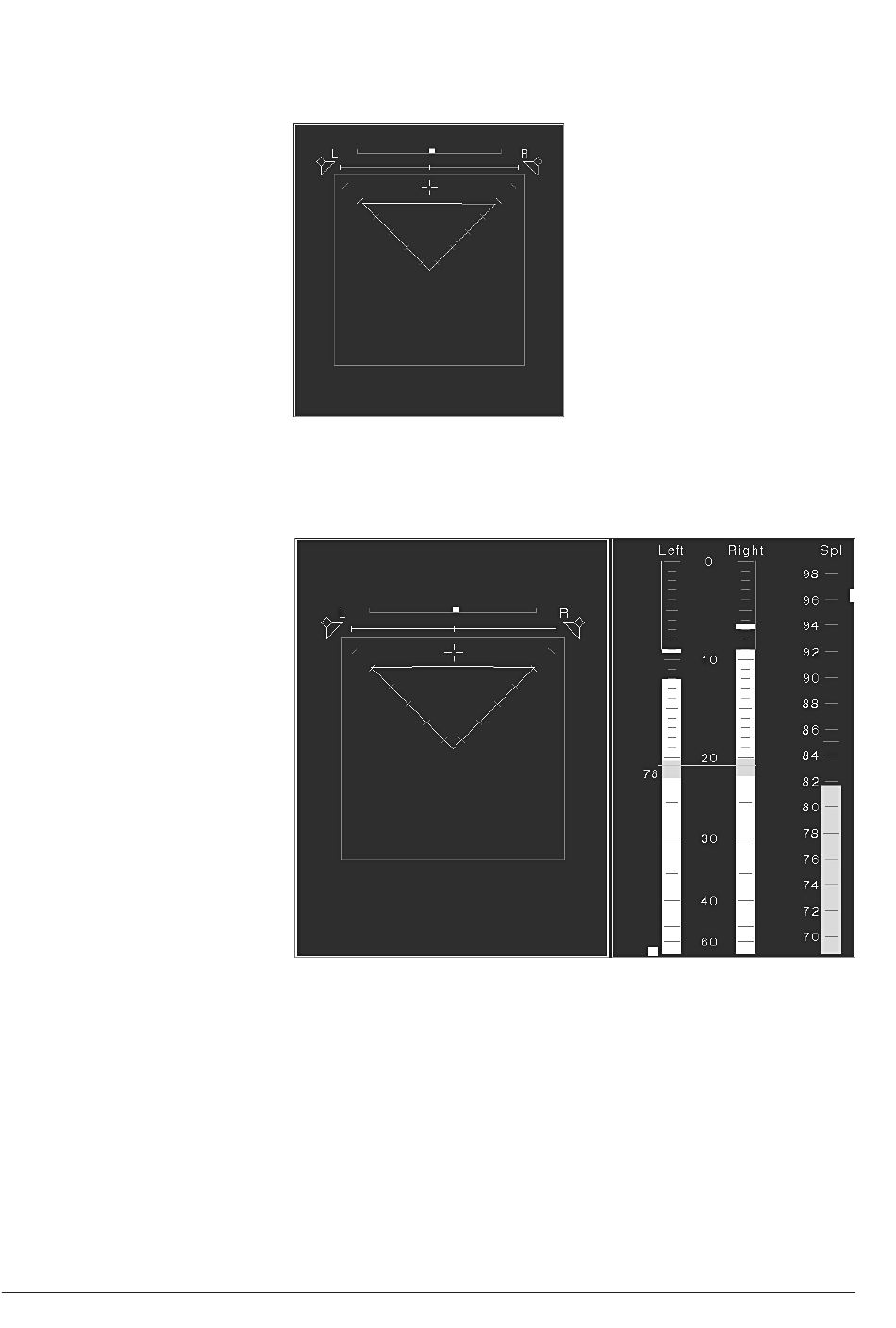

Fig. E 4-9: The Stereo Sound Analyzer with PSI and correlator display
Fig. E 4-10: The Stereo Sound Analyzer display with correlator display and deacti-
vated Multi Instrument 2
E 4 Display Modes • E 4.3 Stereo Sound Analyzer 172
