The pins labelled "not
used" in the table must
remain unconnected!
RTW DigitalMonitor 10500X-PLUS

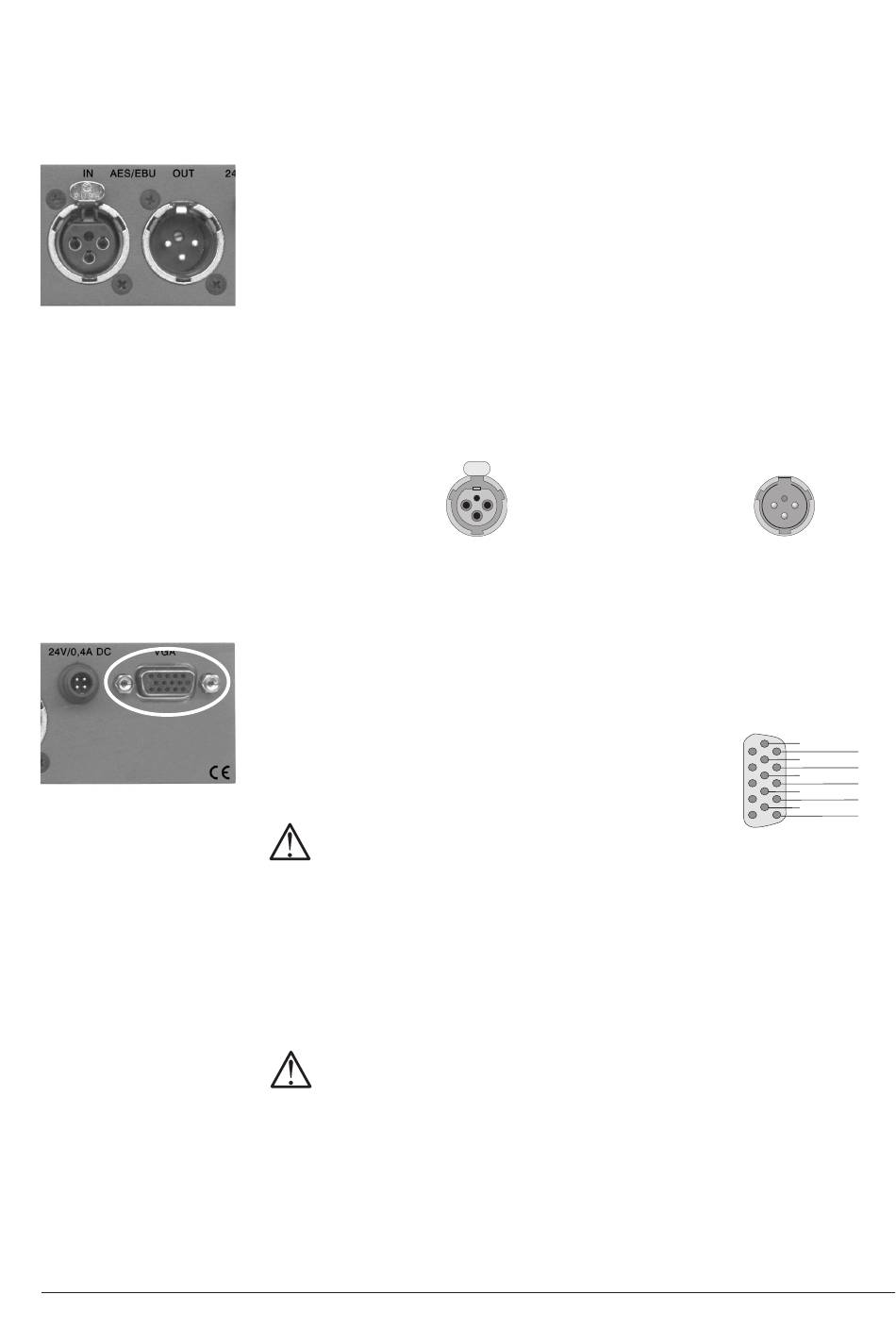

E 6.3 Connection

The DigitalMonitor 10500X-PLUS features connectors for digital inputs and
digital output, a VGA output and a locking 4-pin low voltage connector for
power supply (see Fig. E 6-1). The audio I/O's are balanced.

E 6.3.1 Connecting INPUT and OUTPUT: Signal connection

The incoming AES3 signal is passive looped through from the input
connector to the output connector.
XLR-connector
Pin:
Function:
1
common potential
2
+ (hot)
3
- (cold)
XLR-F:
Pin 2
Pin 3
(Außenansicht der Einbaubuchse)

E 6.3.2 Connecting VGA: VGA Monitor connection

15-pin Sub-D-F connector
Pin:
Function:
1
R
| Video signal
2
G
|
3
B
|
4
not used
5 - 8 GND
9
not used
10
GND
11
not used
12
not used
13
H-sync
14
V-sync
15
not used
Note:
The connecting VGA cable has to be of 10 - 15 m maximum length!
E 6 Installation • E 6.3 Connection
XLR-M:
Pin 1
(Außenansicht des Einbaustiftsteckers
Pin 1
Pin 2
Pin 3
P i n 6
P i n 1
P i n 1 1
P i n 7
P i n 2
P i n 1 2
P i n 8
P i n 1 3
P i n 3
P i n 9
P i n 1 4
P i n 4
P i n 1 0
P i n 5
P i n 1 5
(
)
External view of the connector
223
