E 5.2.3.2 Dig-Errors - RTW 10500X-PLUS Bedienungsanleitung

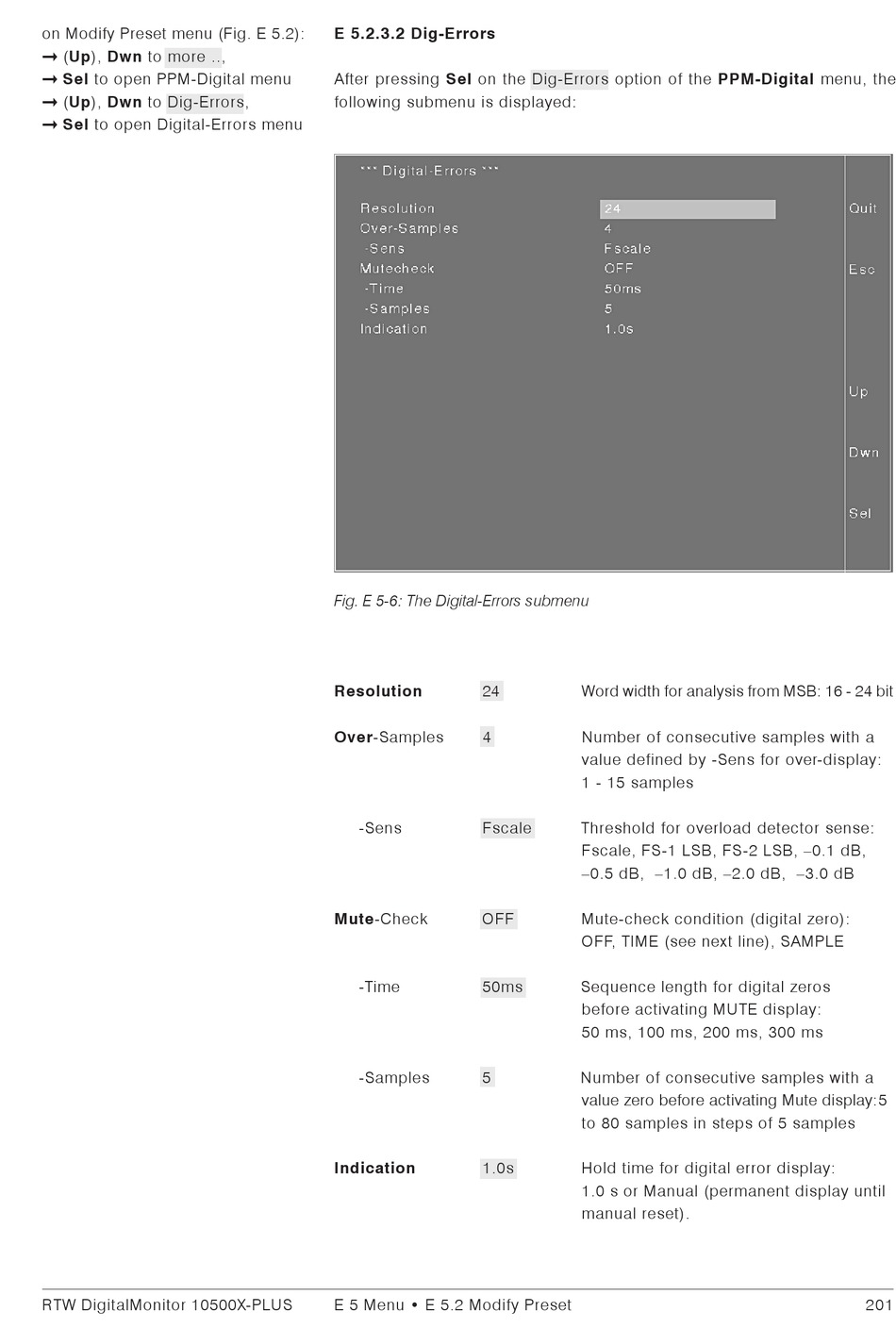

on Modify Preset menu (Fig. E 5.2):
 (Up), Dwn to more ..,
 Sel to open PPM-Digital menu
 (Up), Dwn to Dig-Errors,
 Sel to open Digital-Errors menu
RTW DigitalMonitor 10500X-PLUS

E 5.2.3.2 Dig-Errors

After pressing Sel on the Dig-Errors option of the PPM-Digital menu, the
following submenu is displayed:
Fig. E 5-6: The Digital-Errors submenu
Resolution 24
Over-Samples 4
-Sens Fscale
Mute-Check OFF
-Time 50ms
-Samples 5
Indication 1.0s
E 5 Menu • E 5.2 Modify Preset
Word width for analysis from MSB: 16 - 24 bit
Number of consecutive samples with a
value defined by -Sens for over-display:
1 - 15 samples
Threshold for overload detector sense:
Fscale, FS-1 LSB, FS-2 LSB, –0.1 dB,
–0.5 dB, –1.0 dB, –2.0 dB, –3.0 dB
Mute-check condition (digital zero):
OFF, TIME (see next line), SAMPLE
Sequence length for digital zeros
before activating MUTE display:
50 ms, 100 ms, 200 ms, 300 ms
Number of consecutive samples with a
value zero before activating Mute display:5
to 80 samples in steps of 5 samples
Hold time for digital error display:
1.0 s or Manual (permanent display until
manual reset).
