E 4.7 Channel Status Display - RTW 10500X-PLUS Bedienungsanleitung

See Chapter E 3.8 and
E 5.2.8
RTW DigitalMonitor 10500X-PLUS

E 4.7 Channel Status Display

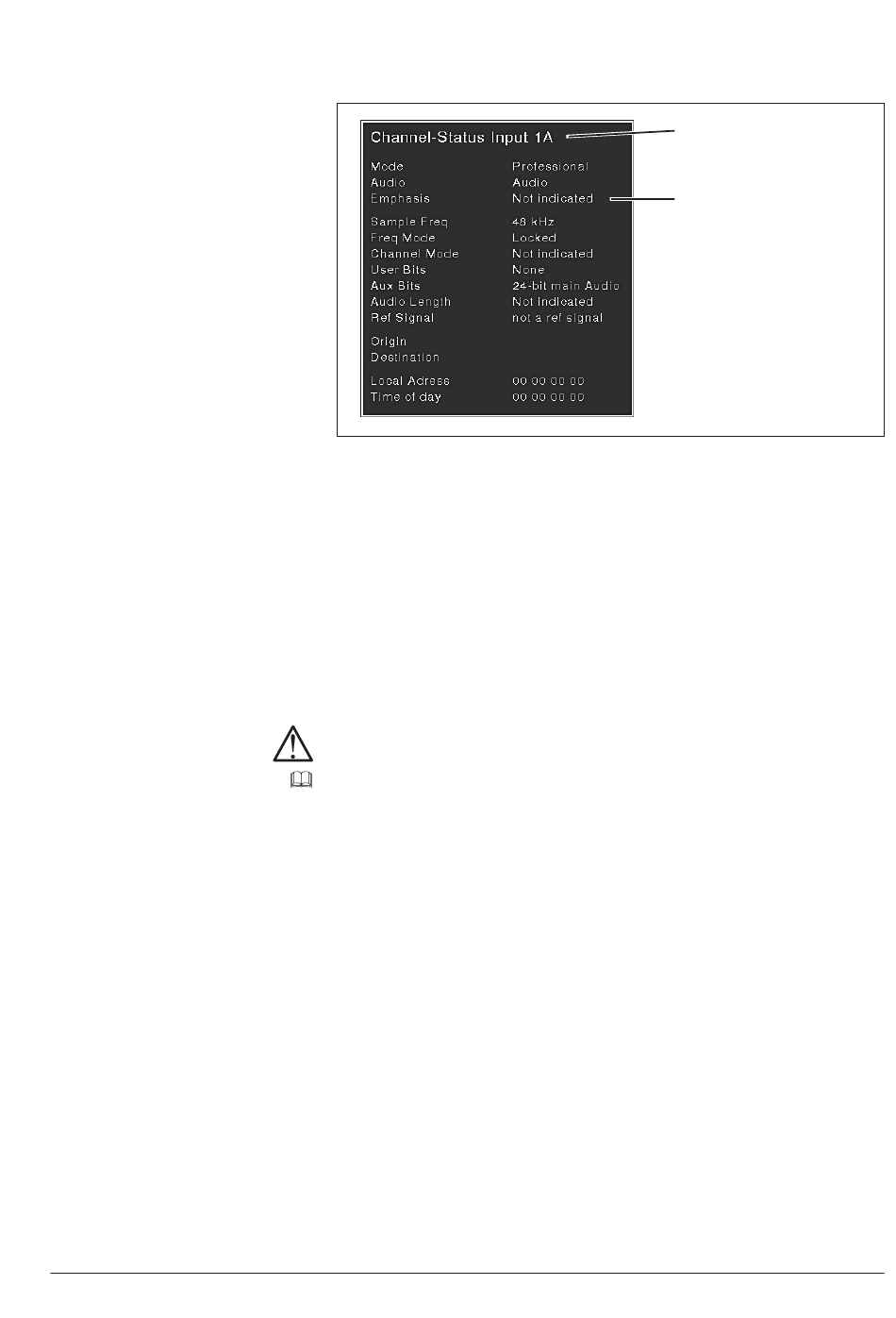

Fig. E 4-18: The Channel Status display in Multi Instrument 1 section
The Channel Status display is an integrated Status Monitor showing channel
status data for the digital input signals in AES-3 format.
The Channel Status display will show up in the Multi Instrument 1 after pres-
sing a MODE/SET button repeatedly - provided that it was activated in the
Toggle Selection of this mode before and it is available for the respective
mode.
Note:
Please refer to Chapter E 3.8 to learn about how to activate or deactivate
certain display modes in the Toggle Selection menu (for menu description
see Chapter E 5.2.8).
E 4 Display Modes • E 4.7 Channel Status Display
Selected input channel
Channel status display
(the display of hardware
status, binary and audio
data bits can be selected)
185
