Installation of the optional interface (Order No. 8315839)
The installation of options should only be carried out by properly trained
personnel observing the applicable regulations.
Disconnect the transmitter from its power supply and remove the upper
housing.

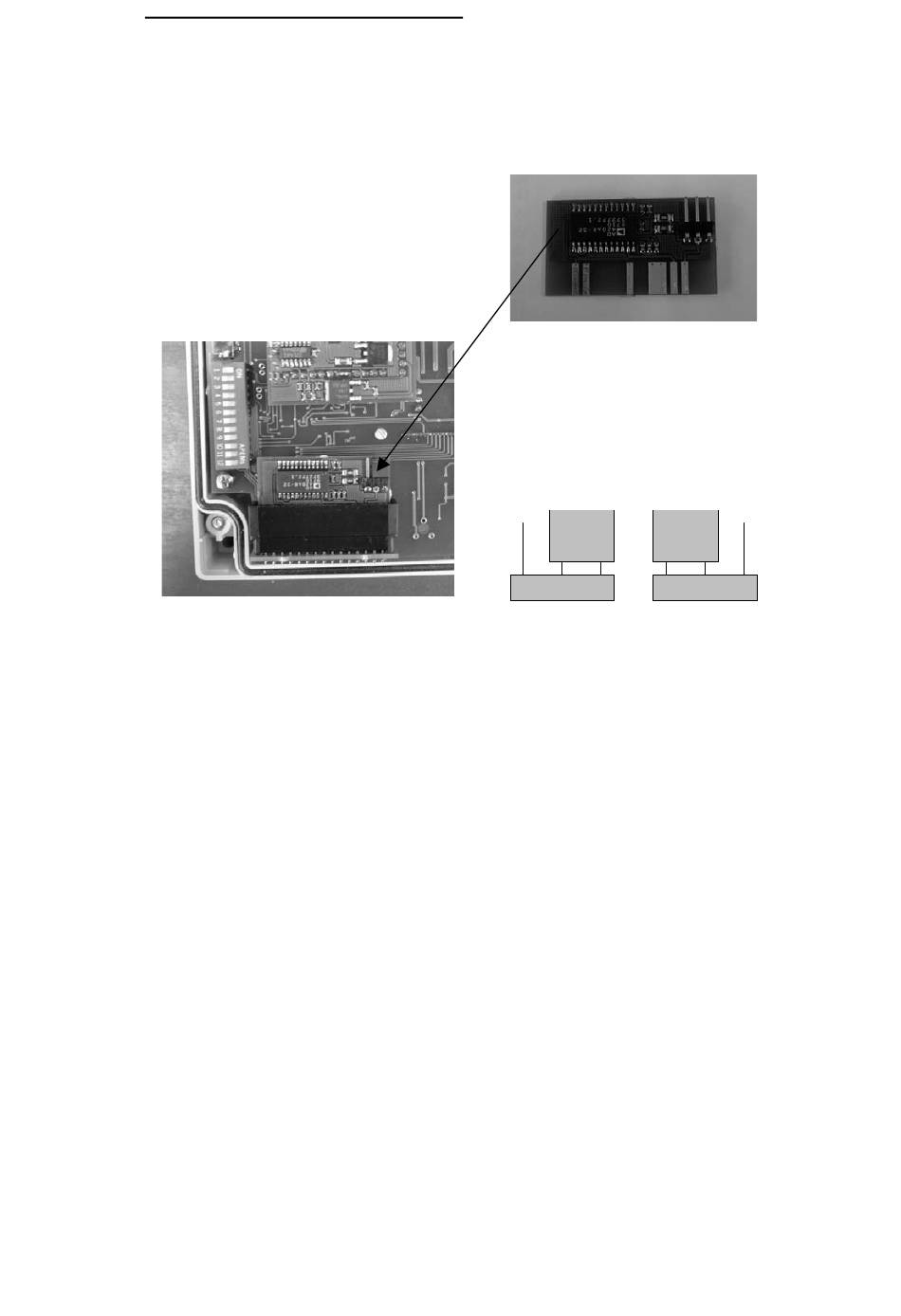

Then connect the 4 .. 20 mA interface in the slot provided (refer to drawing).
The Dip-Switch has a big effect on the
4 to 20 mA output. Therefore it is necessary
toread the article about the "Dip-switches"
first.
Attention:
The jumper on the 4 to 20 mA
card selects between voltage (U)
and current (I) output mode. The
default setting is current (I).
I - Betrieb
Seite 31
U - Betrieb
