2 Technical data

Electrical data

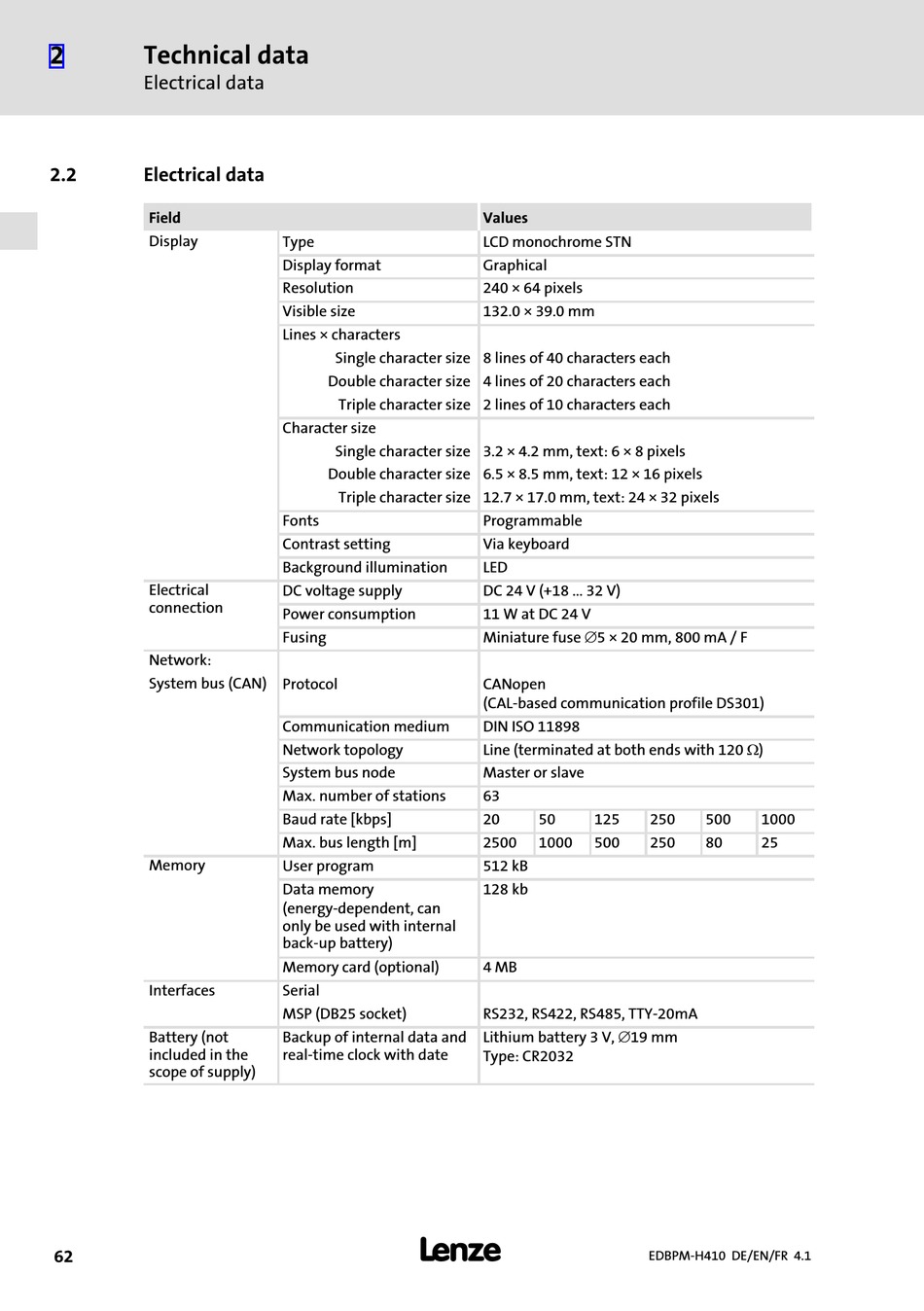

2.2 Electrical data
Field
Display
Electrical
connection
Network:
System bus (CAN) Protocol
Memory
Interfaces
Battery (not
included in the
scope of supply)
62
Type
Display format
Resolution
Visible size
Lines × characters
Single character size 8 lines of 40 characters each
Double character size 4 lines of 20 characters each
Triple character size 2 lines of 10 characters each
Character size
Single character size 3.2 × 4.2 mm, text: 6 × 8 pixels
Double character size 6.5 × 8.5 mm, text: 12 × 16 pixels
Triple character size 12.7 × 17.0 mm, text: 24 × 32 pixels
Fonts
Contrast setting
Background illumination
DC voltage supply
Power consumption
Fusing
Communication medium
Network topology
System bus node
Max. number of stations
Baud rate [kbps]
Max. bus length [m]
User program
Data memory
(energy−dependent, can
only be used with internal
back−up battery)
Memory card (optional)
Serial
MSP (DB25 socket)
Backup of internal data and
real−time clock with date
l
Values
LCD monochrome STN
Graphical
240 × 64 pixels
132.0 × 39.0 mm
Programmable
Via keyboard
LED
DC 24 V (+18 ... 32 V)
11 W at DC 24 V
Miniature fuse Æ5 × 20 mm, 800 mA / F
CANopen
(CAL−based communication profile DS301)
DIN ISO 11898
Line (terminated at both ends with 120 W)
Master or slave
63
20 50 125 250
2500 1000 500 250
512 kB
128 kb
4 MB
RS232, RS422, RS485, TTY−20mA
Lithium battery 3 V, Æ19 mm
Type: CR2032
EDBPM−H410 DE/EN/FR 4.1
500 1000
80 25
