3.2

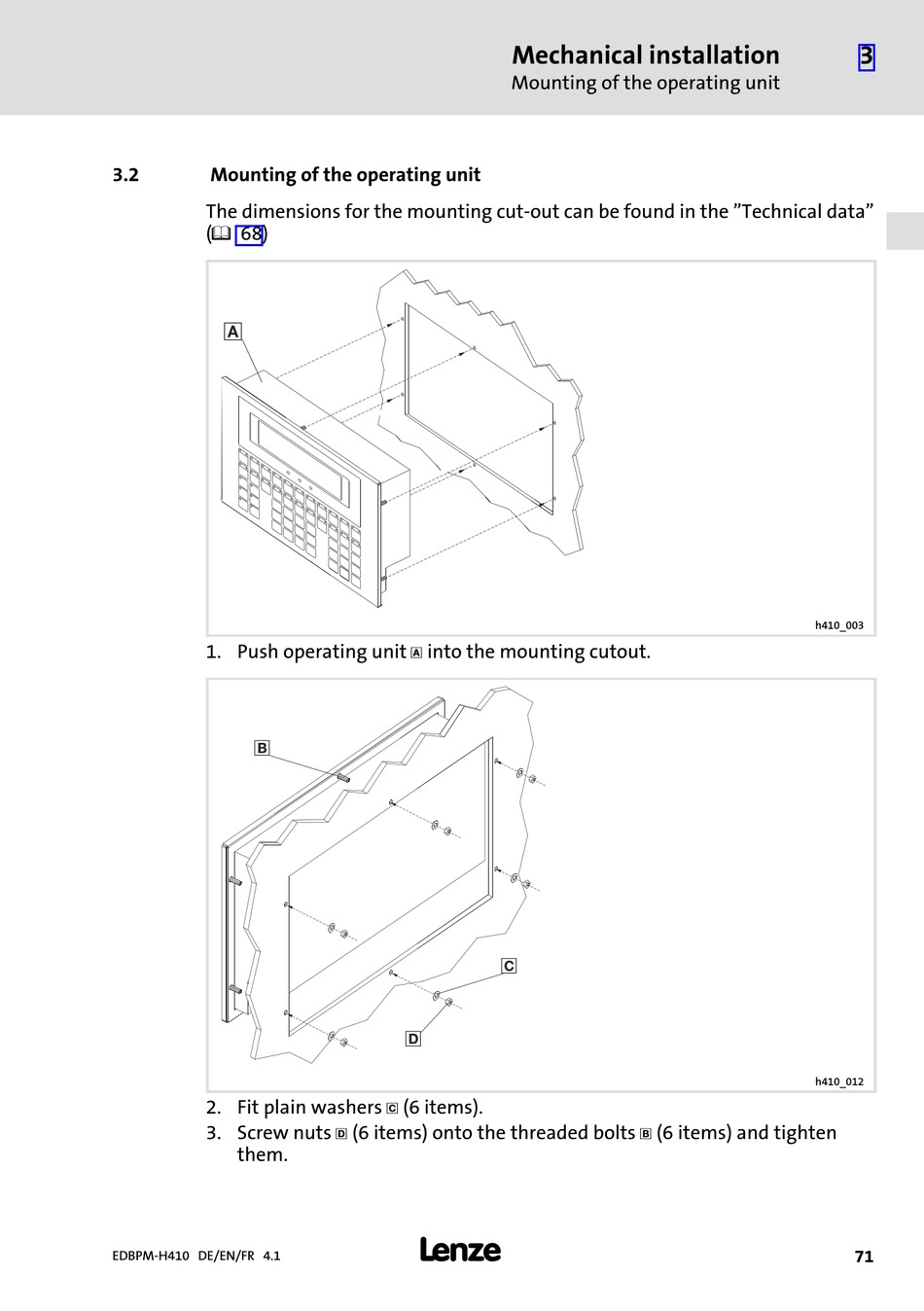

Mounting of the operating unit

The dimensions for the mounting cut−out can be found in the "Technical data"
(¶ 68)
0
1. Push operating unit
1
2. Fit plain washers
3. Screw nuts
them.
EDBPM−H410 DE/EN/FR 4.1
0 into the mounting cutout.
2
3
2 (6 items).
3 (6 items) onto the threaded bolts
l
Mechanical installation
Mounting of the operating unit
1 (6 items) and tighten
3
h410_003
h410_012
71
