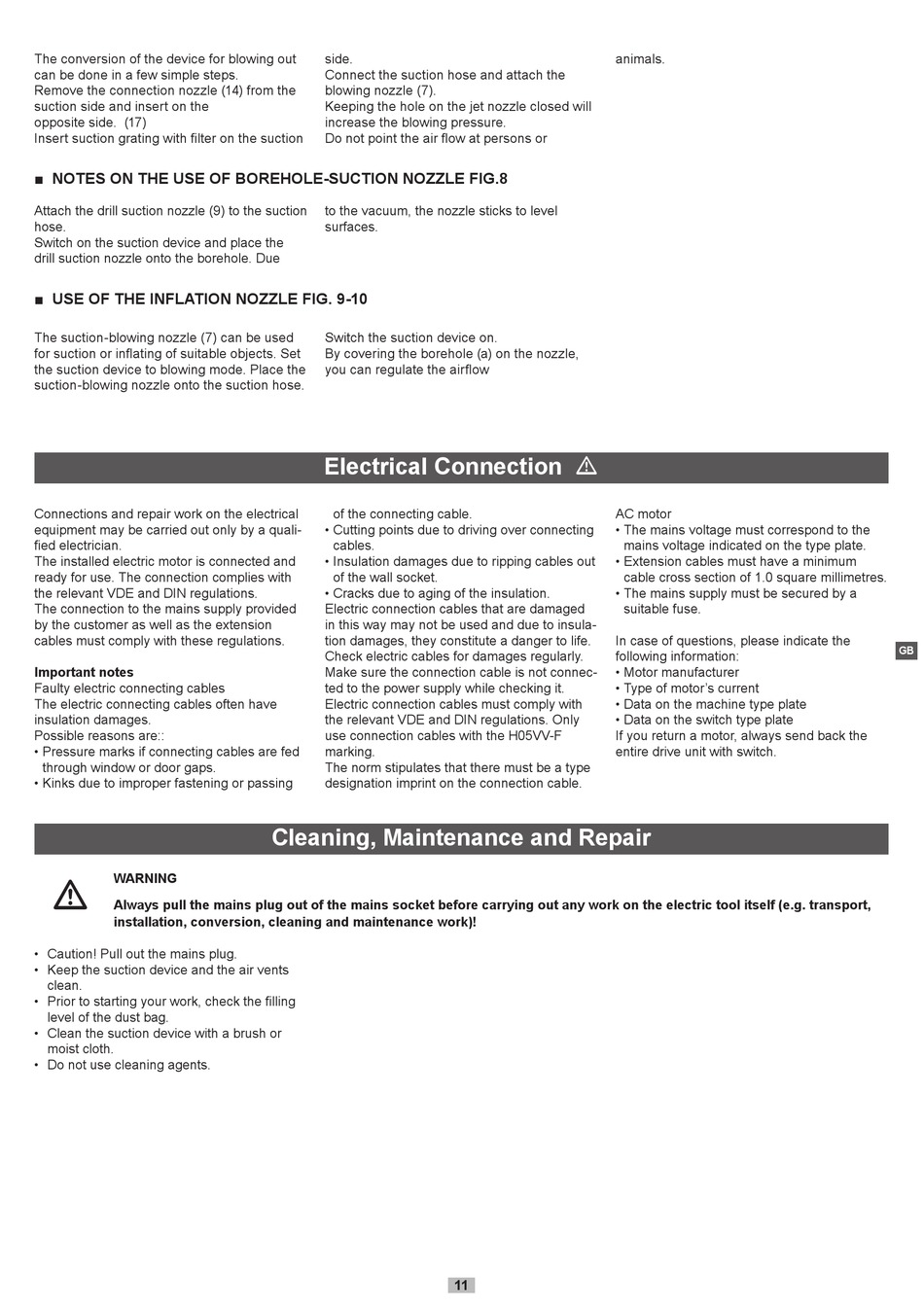

The conversion of the device for blowing out
can be done in a few simple steps.
Remove the connection nozzle (14) from the
suction side and insert on the
opposite side. (17)
Insert suction grating with filter on the suction
■ NoTES oN THE USE oF BoREHoLE-SUCTIoN NoZZLE FIG.8
Attach the drill suction nozzle (9) to the suction
hose.
Switch on the suction device and place the
drill suction nozzle onto the borehole. Due
■ USE oF THE INFLATIoN NoZZLE FIG. 9-10
The suction-blowing nozzle (7) can be used
for suction or inflating of suitable objects. Set
the suction device to blowing mode. Place the
suction-blowing nozzle onto the suction hose.
Connections and repair work on the electrical
equipment may be carried out only by a quali-
fied electrician.
The installed electric motor is connected and
ready for use. The connection complies with
the relevant VDE and DIN regulations.
The connection to the mains supply provided
by the customer as well as the extension
cables must comply with these regulations.
Important notes
Faulty electric connecting cables
The electric connecting cables often have
insulation damages.
Possible reasons are::
• Pressure marks if connecting cables are fed
through window or door gaps.
• Kinks due to improper fastening or passing
WARNING
m
Always pull the mains plug out of the mains socket before carrying out any work on the electric tool itself (e.g. transport,
installation, conversion, cleaning and maintenance work)!
• Caution! Pull out the mains plug.
• Keep the suction device and the air vents
clean.
• Prior to starting your work, check the filling
level of the dust bag.
• Clean the suction device with a brush or
moist cloth.
• Do not use cleaning agents.
side.
Connect the suction hose and attach the
blowing nozzle (7).
Keeping the hole on the jet nozzle closed will
increase the blowing pressure.
Do not point the air flow at persons or
to the vacuum, the nozzle sticks to level
surfaces.
Switch the suction device on.
By covering the borehole (a) on the nozzle,
you can regulate the airflow
Electrical Connection m
of the connecting cable.
• Cutting points due to driving over connecting
cables.
• Insulation damages due to ripping cables out
of the wall socket.
• Cracks due to aging of the insulation.
Electric connection cables that are damaged
in this way may not be used and due to insula-
tion damages, they constitute a danger to life.
Check electric cables for damages regularly.
Make sure the connection cable is not connec-
ted to the power supply while checking it.
Electric connection cables must comply with
the relevant VDE and DIN regulations. Only
use connection cables with the H05VV-F
marking.
The norm stipulates that there must be a type
designation imprint on the connection cable.
Cleaning, Maintenance and Repair
animals.
AC motor
• The mains voltage must correspond to the
mains voltage indicated on the type plate.
• Extension cables must have a minimum
cable cross section of 1.0 square millimetres.
• The mains supply must be secured by a
suitable fuse.
In case of questions, please indicate the
following information:
• Motor manufacturer
• Type of motor's current
• Data on the machine type plate
• Data on the switch type plate
If you return a motor, always send back the
entire drive unit with switch.
11
GB
