7. SET-UP ENVIRONMENT

The scale has various parameters that can be configured in the SET-UP environment.
To enter in the SET-UP environment press during the start-up the MODE key during the countdown.
- The display will show the first function, which is "F1 Unt":
- Pressing the TARE will cycle through the other functions.
- Pressing ZERO will allow you to set the function.
- Use MODE to select the value, or set a value using the % key and the PCS key to move the active digit and then using
the TARE key to increment a digit
- Press the ZERO key to confirm the modification and pass to the following step or use the PRINT/M+ key to leave a
parameter unchanged or to escape set-up environment.

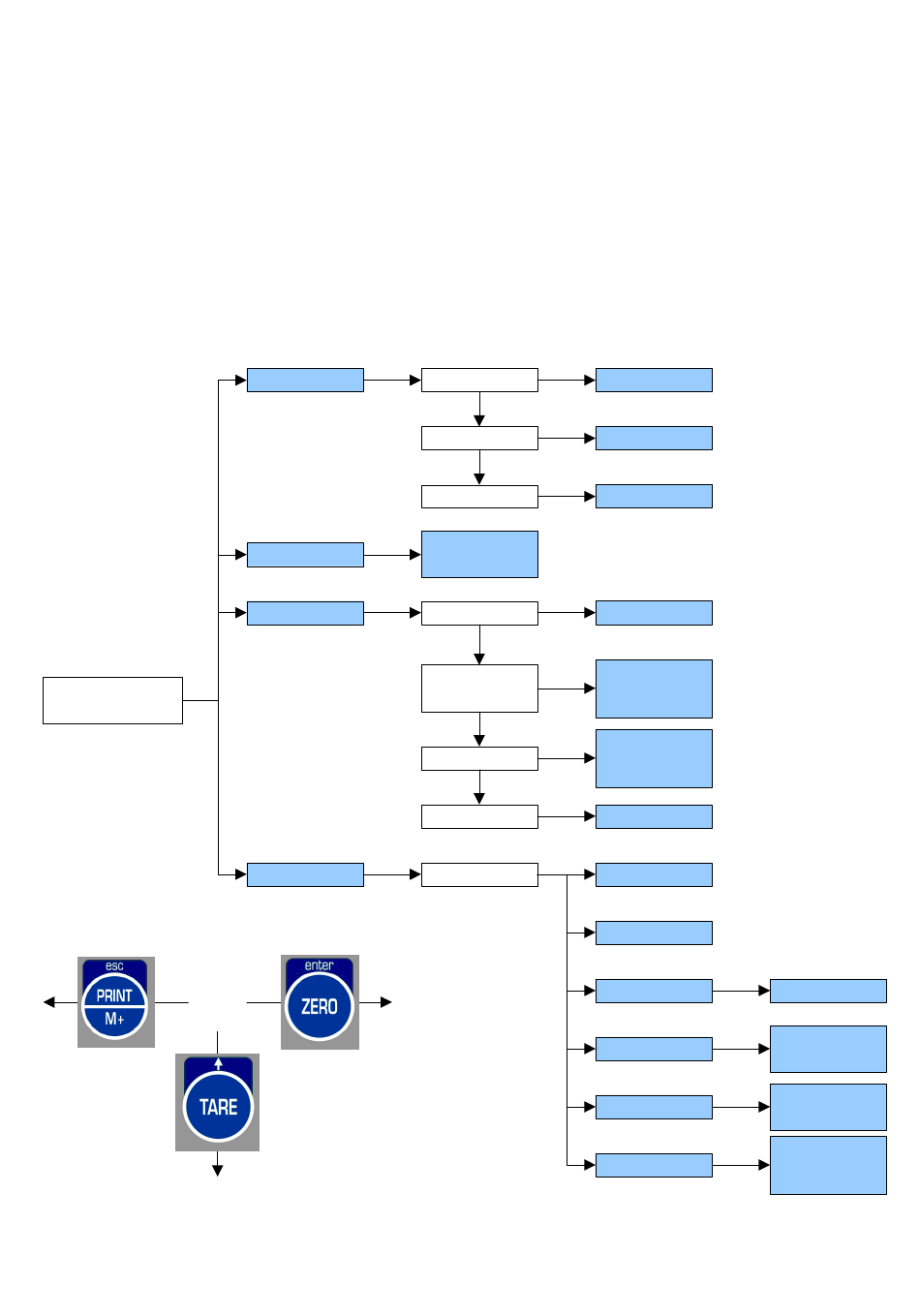

7.1 SET-UP ENVIRONMENT BLOCK DIAGRAM

SETUP
ENVIRONMENT
In the parameter description:
- The METRIC parameters are shown with the (*) symbol, and, with approved instrument, these are read only. See
section 9.
F1 unt
EL on, EL AU,
F2 bL
F3 CoM Printer port
Transmission
Printer type
tEch
g Ut on, Ut oFF
... Ut on, Ut oFF
n Ut on, Ut oFF
EL oFF,
232, USB
P Prt, P Cont,
mode
b600, b1200,
baud b2400, b4800,
tP, LP-50
Pin
P5 GRA
10
P AUto,
WirELE
b9600
P1 Lin
P2 CAL
P3 Cnt XXXXXX
0.5d, 1d,
P4 Azn
X.XXXXX
P6 CAP
600, 1500,
3000, 6000
2d, 4d
150, 300,
