3. INSTALLATION

a) Unpack then product.

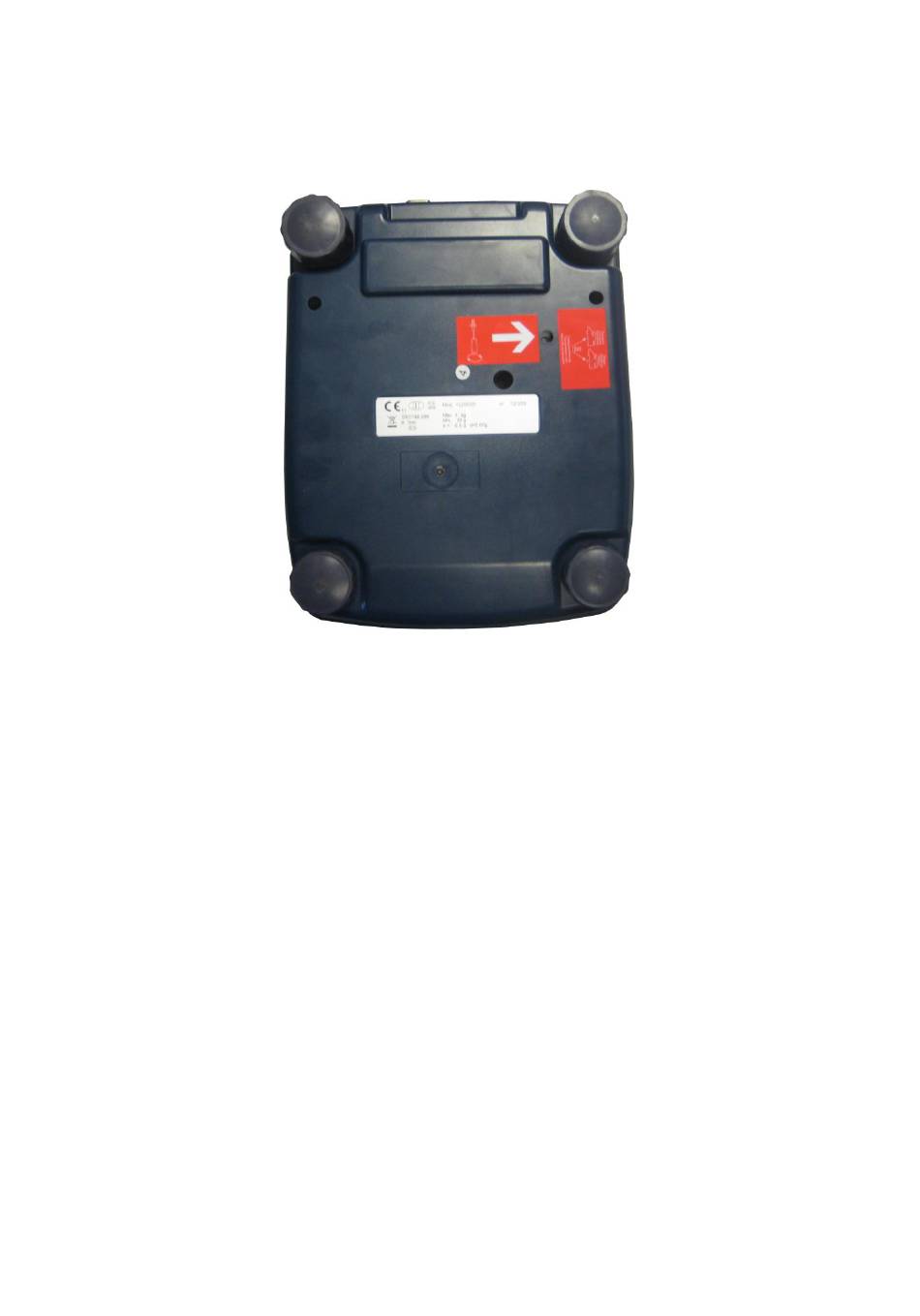

b) If present (depending on the model), it is necessary to unscrew and remove the locking screw for the transportation
placed under the scale, as shown in the figure below:
c) Level the platform by adjusting the adjustable feet until the bubble is in the centre of the level. The stability of the
platform is very important.
ALL THE CORNERS MUST REST IN A UNIFORM WAY. Carefully check that all feet fully rest on the ground and that the
platform, loaded on the corner, is not unstable (if a corner is not resting on the ground its relative foot is easier to turn).

3.1 POWER SUPPLY AND START-UP

The indicator can be powered with a fitted 240 Vac external power adapter or just with the fitted battery.
NOTE: it is advisable to completely recharge the battery (12 hours) with the first installation of the instrument.
TO POWER the instrument through the 240 Vac mains put the AC/DC power plug in the appropriate socket under the
scale and the power adapter in the 240 Vac mains socket.
TO TURN ON/TURN OFF the instrument press the ON/OFF key.
The display shows:
HLD is the name of the model
XXXX g is the capacity of the scale
V1.YYY is the installed software version
V1.05
The indicator has an "auto zero at start-up" function: in other words it means that if at start-up a weight within +/- 10% of
the capacity is detected, it will be zeroed; if the weight is not within this tolerance, with a non approved instrument the
display shows the present weight after a few instants, while with an approved instrument "ZerO" is shown continuously on
the display, until the weight does not re-enter within this tolerance.
After this, it shows "hi rES" (in case of NOT approved instrument) or "LEGAL" (in case of approved instrument).
