Installation

2. INSTALLATION

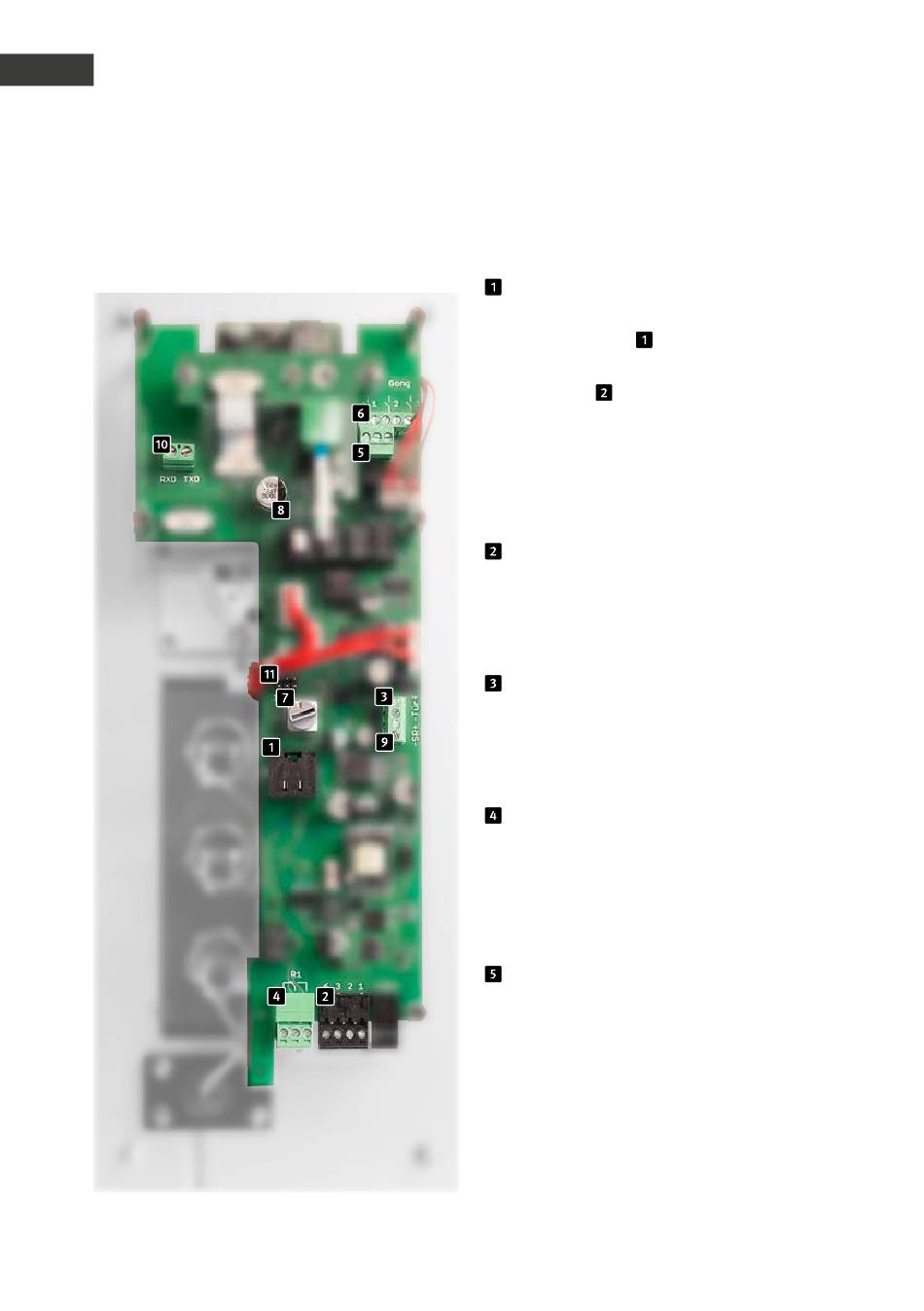

The door station's electronics
52
Ethernet socket
The LAN connection is usually made via
an RJ-45 connector . Alternatively, the
individual wires can also be connected via a
terminal strip : The network is connected
to the terminals marked with 1 (orange-white),
2 (orange), 3 (green-white) and 6 (green) to
EIA / TIA 568 B. The number denotes the pin
number of the RJ45 connector/the RJ45 box.
Alternative ethernet connection
Simultaneous connection of socket and screw
terminals is not allowed! This can cause a
defect in the door station!
Door opener connection
Connection option for one door opener (12
V max. 9 W). See Chapter 2.4 Door opener/
Relay/ Gong.
Relay 1 (door opener relay)
Isolated connection (rating: 30 VDC / max. 1
A) for one door opener, which is activated by
the "myintercom" app. See Chapter 2.4 Door
opener / Relay/ Gong.
Relay 2 (additional relay)
Isolated connection (rating: 30 VDC / max.
1 A), which can be activated by the "myin-
tercom" app. See Chapter 2.4 Door opener /
Relay / Gong.
