Installation
The myintercom Plus IP video door station
provides several options for supplying the
door station and the add-on modules with
power.

2.1. POE

This option can be used as soon as a
PoE-compatible router or switch or a PoE
injector (to IEEE 802.3af-2003) is available.

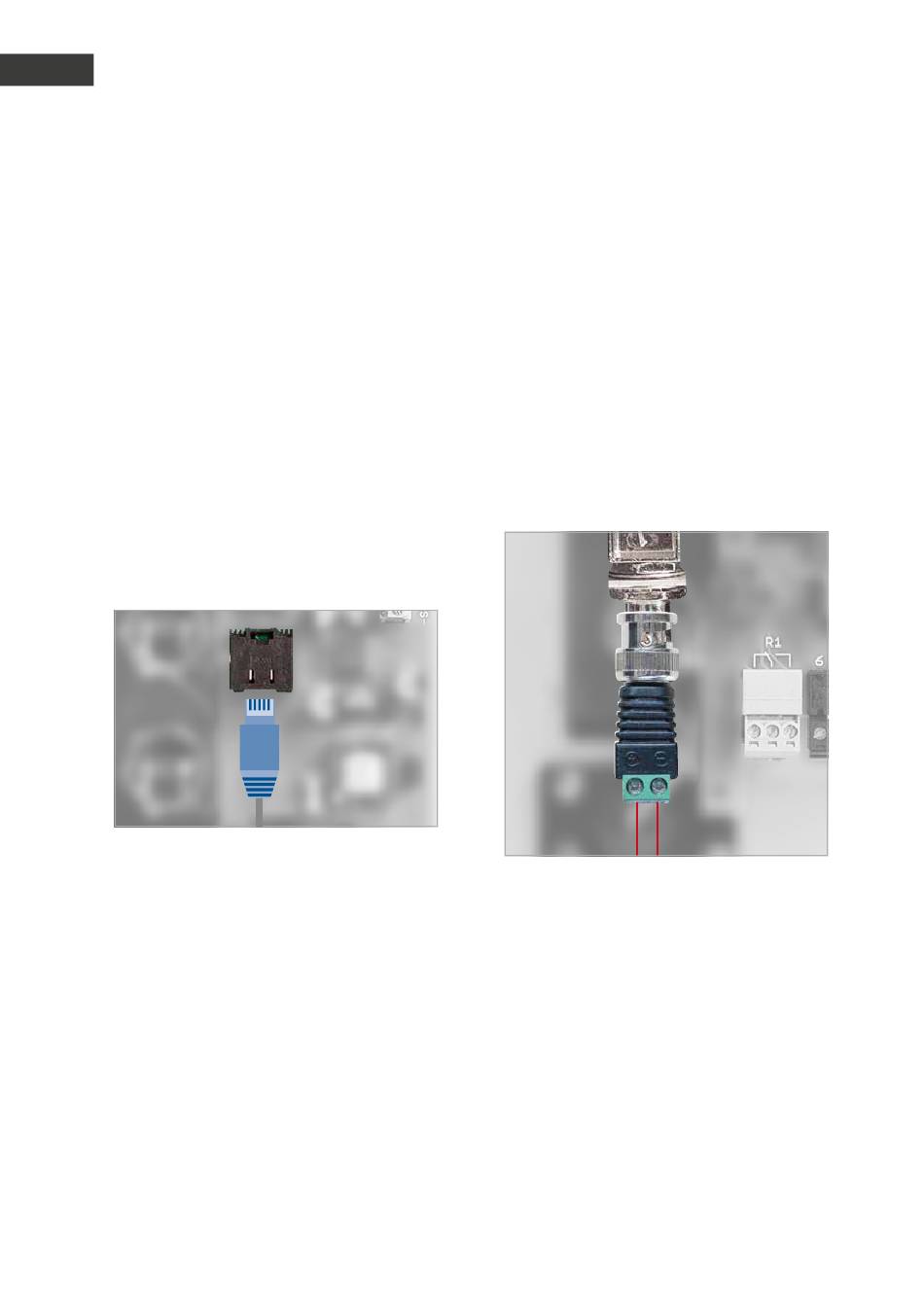

To connect the door station, please remove
the housing cover and plug the patch cable
into the RJ45 socket provided.
Important! The housing cover must be
screwed back on again in order for the tamper
protection to work!
54

2.2. Two-wire technology

Another option for supplying the door station
with power is to use the add-on 2-wire trans-
mitter module. Remove the cover of the door
station housing and connect a coaxial cable to
the socket provided on the two-wire trans-
mitter. If you do not have a coaxial cable, but
only two wires, please used the coaxial cable
adapter supplied.
Important! The housing cover must be
screwed back on again in order for the tamper
protection to work!
The second end of the coaxial cable is
connected to the two-wire receiver. Feed PoE
via the cable, which is plugged into the RJ45
socket of the two-wire receiver. To do this,
please use a PoE injector or a PoE-compatible
router or switch to IEEE 802.at standard.
