Cable Management

Cords may be routed using cable ties (P).

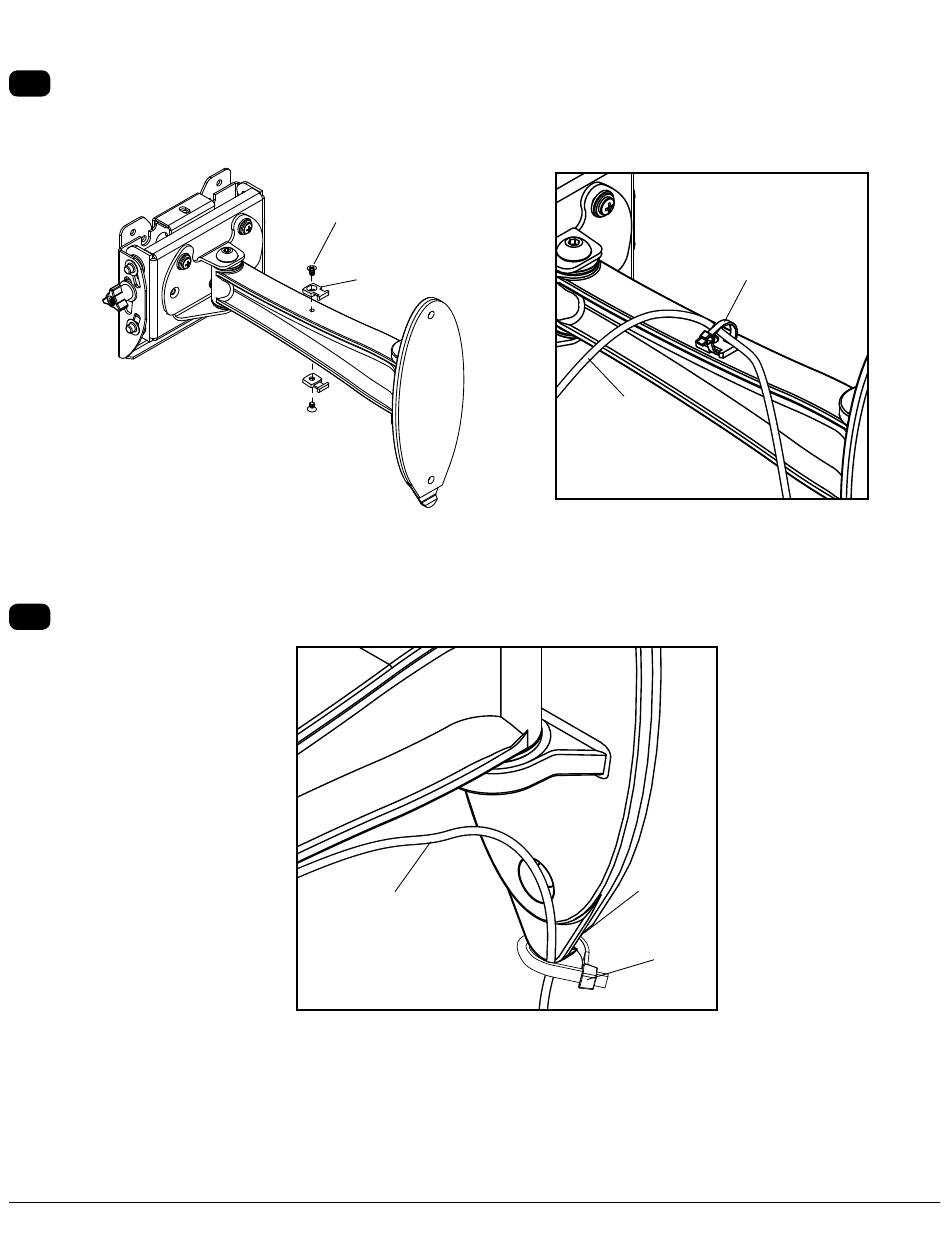

Attach cable tie anchor (Q) to top or bottom of wall arm (A) using 8-32 x 1/4" phillips screw (R) as shown in
5-1
figure 5.1.
Secure cables to top or bottom of wall arm (A) using cable ties (P) as shown in figure 5.2.
Secure cables to bottom of wall plate using a cable tie (P) as shown below.
5-2
R
Q
fig. 5.1
CABLE
CABLE
9 of 42
P
fig. 5.2
SLOT
P
ISSUED: 05-18-05 SHEET #: 095-9235-9 12-05-09
