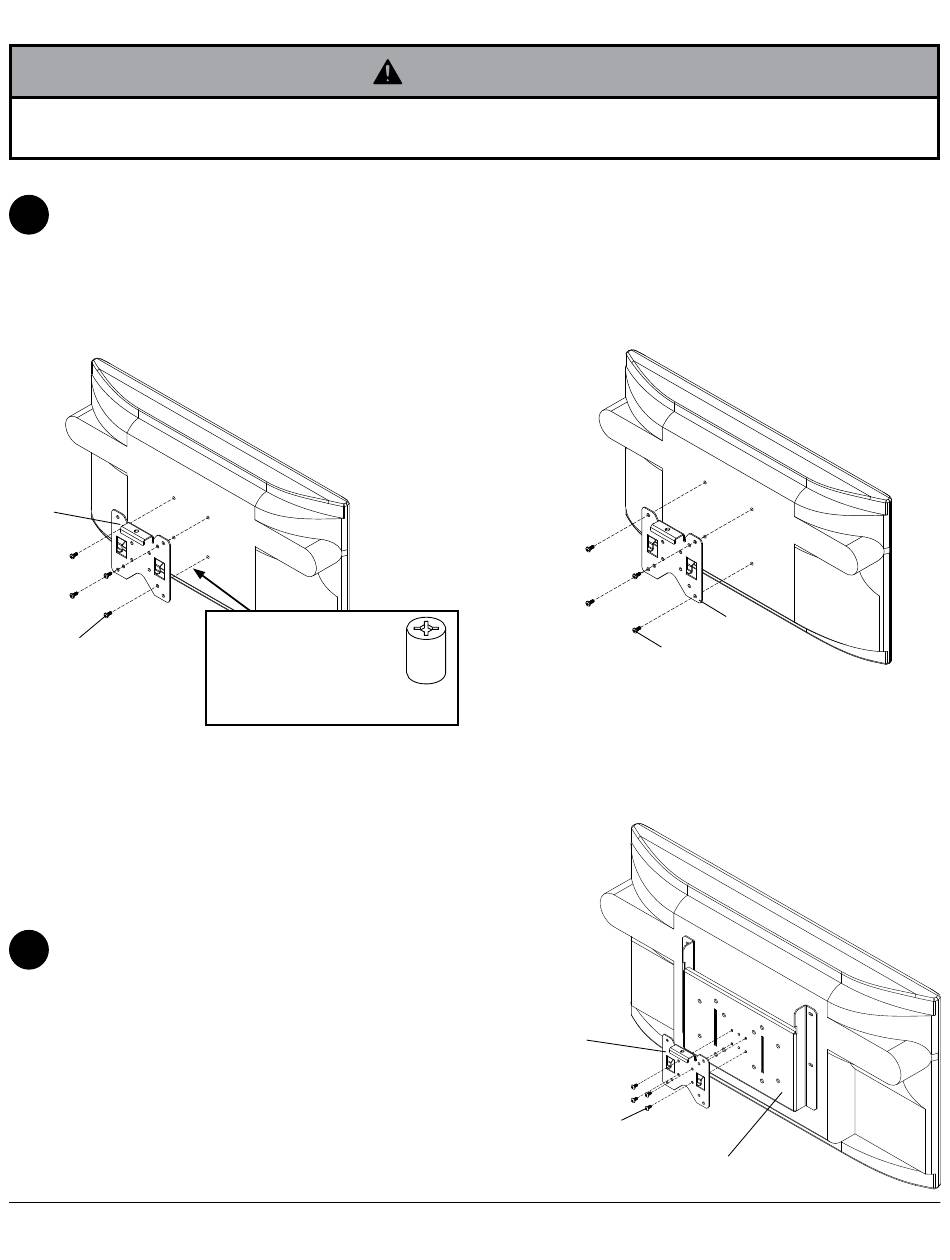

Attaching Hook Bracket to Screen with VESA 75 or 100 Mounting Pattern
• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly
secured, damage may occur to screen or product may fail.
FOR VESA ® 75 MOUNTING PATTERN:
Choose hole pattern as shown below. Attach hook
2
bracket (M) to back of screen using four
M4 x 10 mm screws (E) as shown below.
NOTE: If hole pattern is in a pocket, attach hook
bracket (M) to back of screen using four
M4 x 20 mm screws (F) and four retaining spacers
(C) as indicated below.
M
E
For screen compatibility please refer to the LCD or plasma interface list on our website www.peerlessmounts.com or
call customer care for a screen specific adapter bracket LC or PLP models (not UL evaluated).
FOR INSTALLING TO PEERLESS PLP MODEL ADAPTER BRACKET
NOTE: Refer to PLP model adapter bracket instruc-
tion sheet for attachment of adapter bracket to
screen.
NOTE: M5 x 10 mm screws are included with the
PLP model adapter bracket.
Attach hook bracket (M) to adapter bracket using
2
four M5 x 10 mm screws.
For screens with a hole
pattern in a pocket,
spacers (C) go between
hook bracket (M) and
screen.
WARNING
FOR VESA 100 MOUNTING PATTERN:
Choose hole pattern as shown below. Attach hook
bracket (M) to back of screen using four
M4 x 10 mm screws (E) as shown below.
C
M
M5 X 10 mm SCREW
7 of 42
M
E
GENERIC ADAPTER
BRACKET
ISSUED: 05-18-05 SHEET #: 095-9235-9 12-05-09
