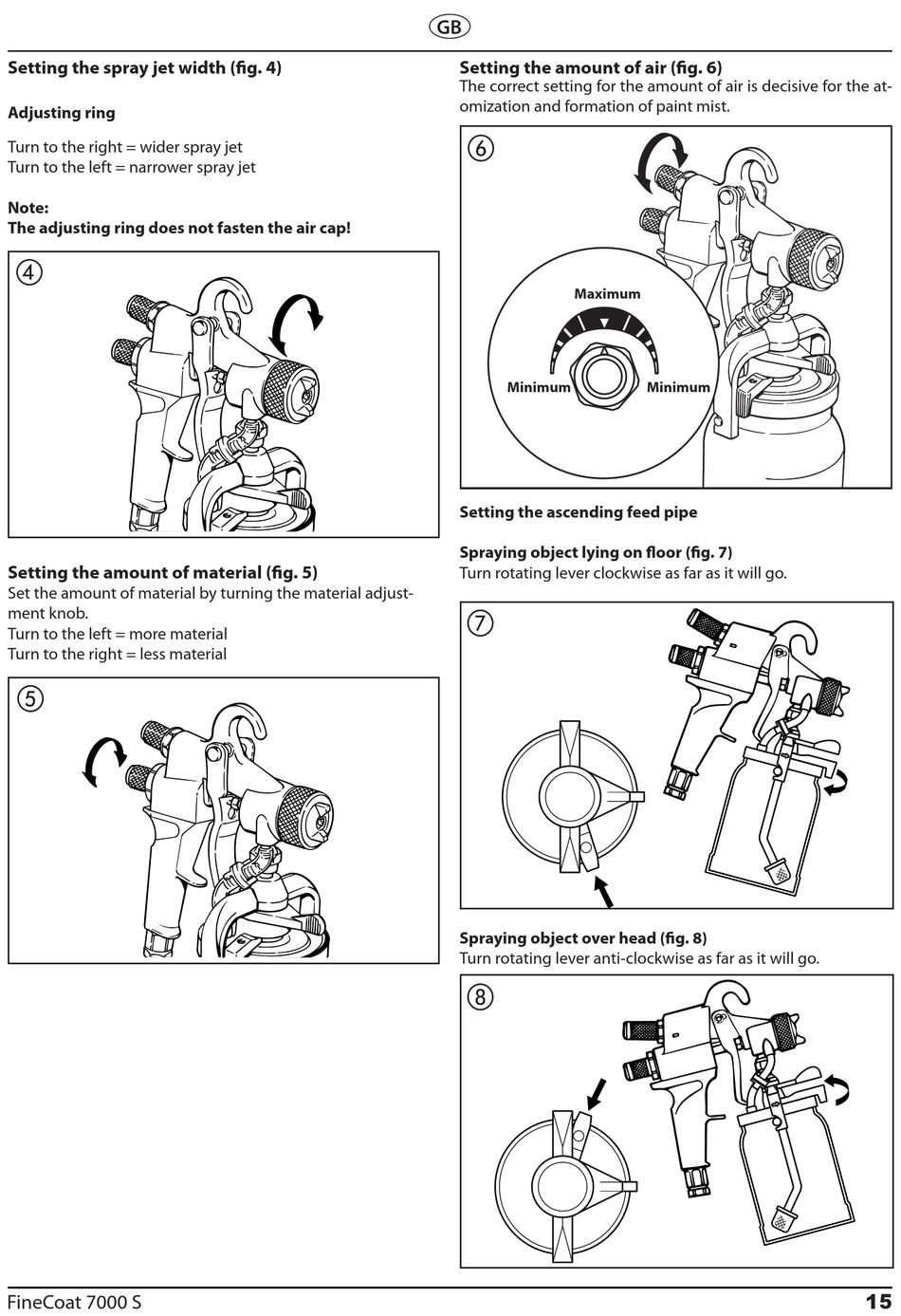

Setting the spray jet width (fig. 4)
Adjusting ring
Turn to the right = wider spray jet
Turn to the left = narrower spray jet
Note:
The adjusting ring does not fasten the air cap!

Setting the amount of material (fig. 5)
Set the amount of material by turning the material adjust-
ment knob.
Turn to the left = more material
Turn to the right = less material

FineCoat 7000 S
GB
Setting the amount of air (fig. 6)
The correct setting for the amount of air is decisive for the at-
omization and formation of paint mist.

Maximum
Minimum

Setting the ascending feed pipe

Spraying object lying on floor (fig. 7)
Turn rotating lever clockwise as far as it will go.

Spraying object over head (fig. 8)
Turn rotating lever anti-clockwise as far as it will go.

Minimum
15
