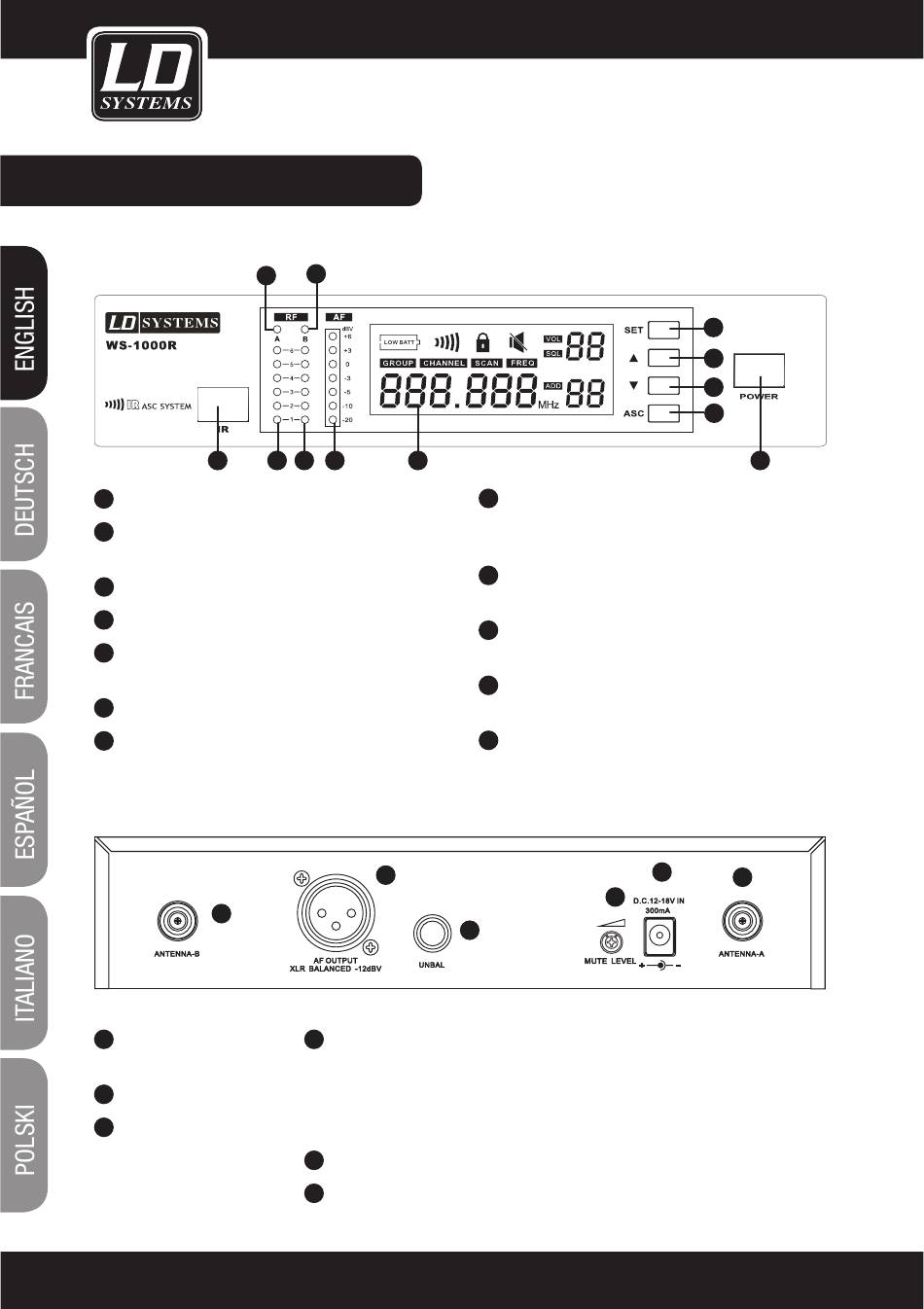

LD WS1000R RECEIVER:
1
INFRARED (IR) WINDOW
1
ANTENNA A RECEIVER INDICATOR
2
Indicator lights up to signal that Receiver A is on.
ANTENNA A SIGNAL STRENGTH INDICATOR
3
ANTENNA B SIGNAL STRENGTH INDICATOR
4
ANTENNA B RECEIVER INDICATOR
5
Indicator lights up to signal that Antenna B is on.
CHANNEL AUDIO INDICATOR
6
CHANNEL LCD INDICATOR
7
Please refer to the system settings.
ANTENNA CONNECTOR B
1
50 Ω
XLR OUTPUT SOCKET
2
6.3 MM OUTPUT SOCKET
3
8
5
2
3 4 6
2
1
FINE ADJUSTMENT OF THE MUTE THRESHOLD VALUE
4
Fine adjustment of the mute threshold value. Generally, it should not be
necessary to change this value. It is set correctly at the factory. If, however,
you receive interference, then you can increase this threshold value by
turning the control to the right until the RF signal LED goes out.
AC ADAPTER CONNECTOR
5
ANTENNA CONNECTOR A 50 Ω
6
7
SYNC BUTTON (ASC)
8
Press here to establish an infrared link
between transmitter and receiver.
DOWN ARROW BUTTON
9
Use this button to navigate the menu.
UP ARROW BUTTON
10
Use this button to navigate the menu.
SYSTEM SETTINGS BUTTON
11
Please refer to the system settings.
ON/OFF SWITCH
12
3

FRONT PANEL:

11
10
9
8
12

BACK PANEL

5
6
4
