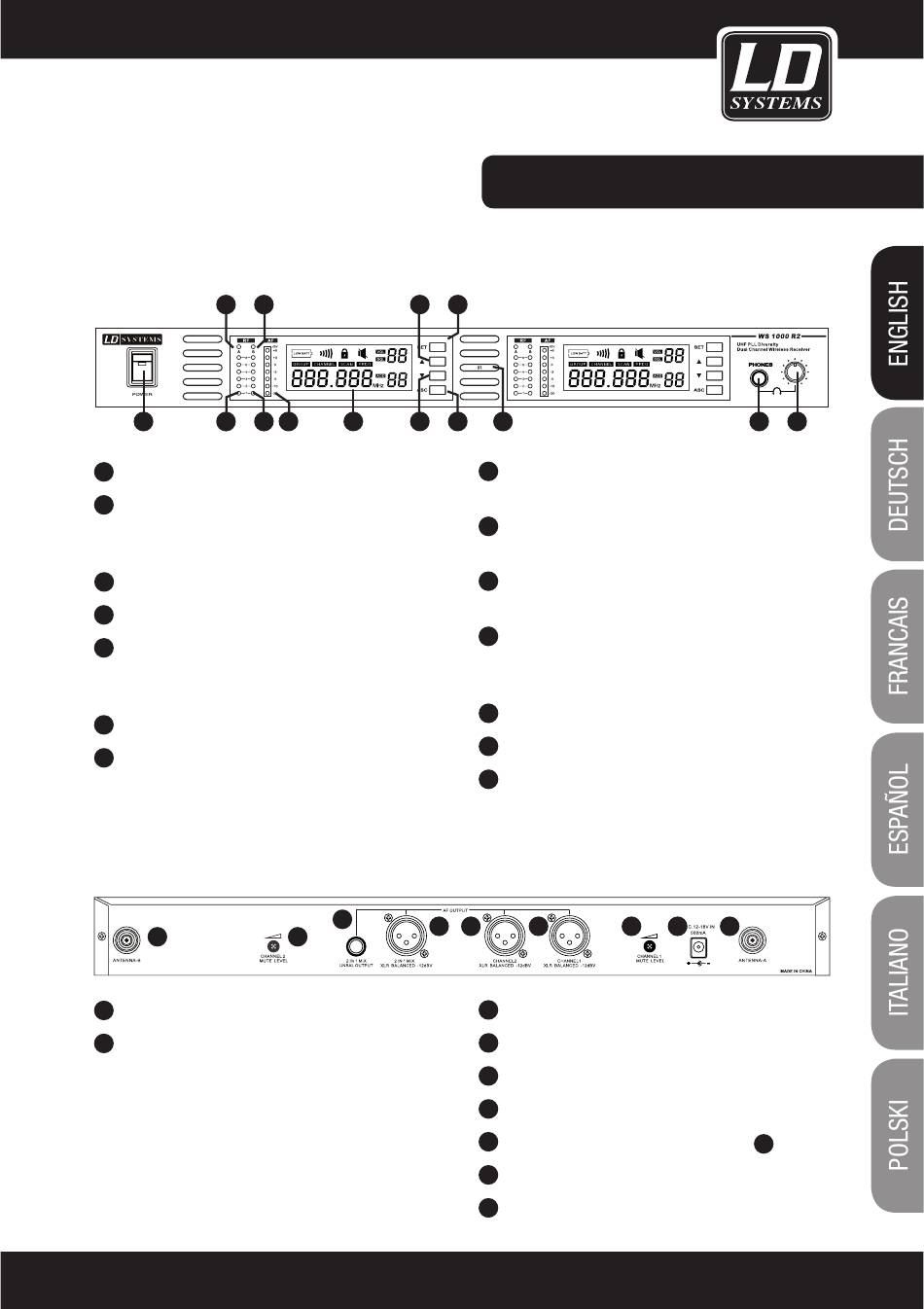

FRONT PANEL:
2 5
1 3 4
ON/OFF SWITCH
1
ANTENNA A RECEIVER INDICATOR
2
Indicator lights up to signal that Antenna A is
receiving.
ANTENNA A RF INDICATOR
3
ANTENNA B RF INDICATOR
4
ANTENNA B RECEIVER INDICATOR
5
Indicator lights up to signal that Antenna B is
receiving.
CHANNEL 1 AUDIO AF LEVEL INDICATOR
6
CHANNEL / GROUP 1 LCD INDICATOR
7
Please refer to the system setup.
BACK PANEL
1
ANTENNA CONNECTOR B
1
MUTE THRESHOLD CHANNEL 2
2
Fine adjustment of the mute threshold value for
channel 2. Generally, it should not be necessary to
change this value. It is set correctly at the factory.
If, however, you receive interference, then you can
increase this threshold value, when the
transmitters are off, by turning the control to the
right until the RF signal LED goes out.
8 9
6 7 10 11
3
4
2
LD WS1000R2 RECEIVER:
12
UP ARROW BUTTON
8
Use this button to navigate the menu.
SYSTEM SETUP BUTTON
9
Please refer to the system setup.
DOWN ARROW BUTTON
10
Use this button to navigate the menu.
SYNC BUTTON (ASC)
11
Press here to establish an infrared link
between receiver and transmitter.
INFRARED (IR) WINDOW
12
6.3 MM JACK HEADPHONE CONNECTION
13
HEADPHONE VOLUME
14
5 6 7
6.3 MM JACK OUTPUT SOCKET FOR MIX
3
XLR OUTPUT SOCKET FOR MIX
4
CHANNEL 2 XLR OUTPUT SOCKET
5
CHANNEL 1 XLR OUTPUT SOCKET
6
MUTE THRESHOLD CHANNEL 1 (SEE
7
AC POWER ADAPTER
8
ANTENNA CONNECTOR A
9
13 14
8 9
)
