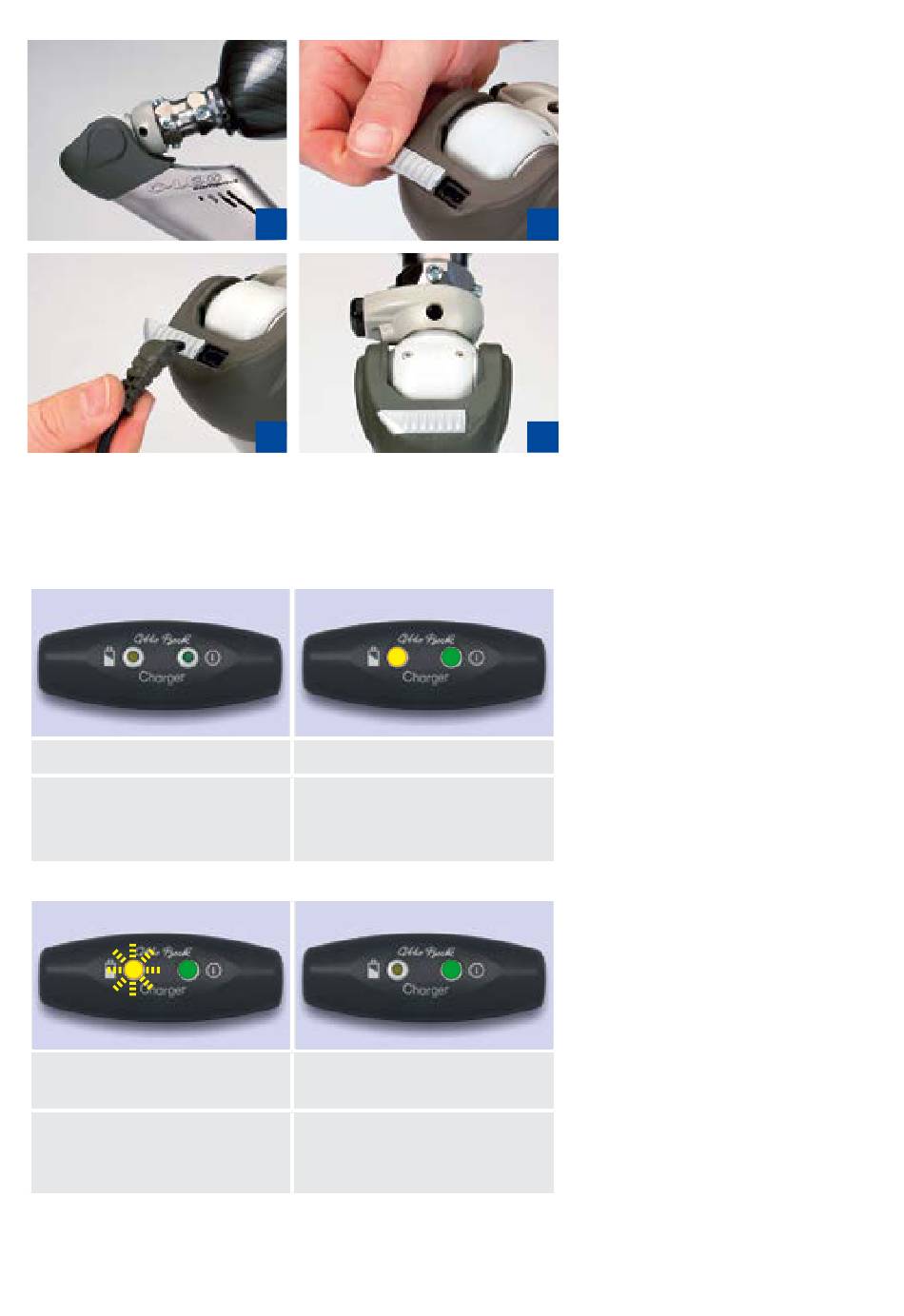

1 Bend the C-Leg compact until it hits the stop.
2 Open the plastic slide of the protective elastomer cap.
3 Connect the 4E50-* Charger and verify the charging status (see following figures).
Both LEDs are off.
No power supply
(or defective charger)
Yellow LED flashes;
green LED is lit.
Battery is being charged.
Battery capacity
is above 50%.
4 After charging, remove the charging plug (C-Leg compact performs self-test) and close the plastic
slide before your extend the prosthesis.
