3. Installation

3.1 Fixed IR Display

Install the IRmax following instructions in the IRmax manual (M07028). Mount using the
bracket provided or connect to an auxiliary junction box via a spigot gland.

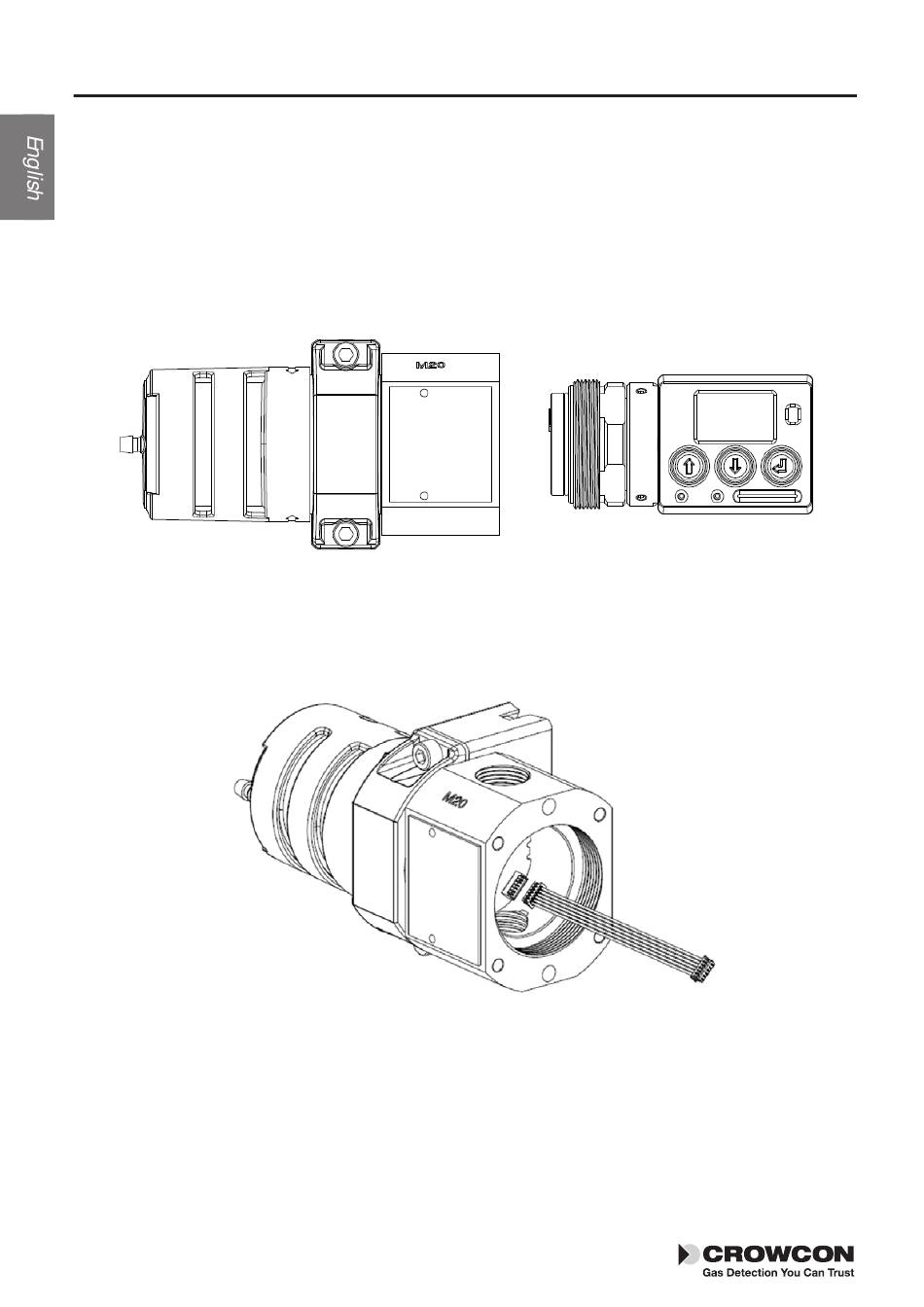

The IR Display attaches to the IRmax via the threaded collar (Diagram 5). Before bringing
the two units together, link the PCBs installed in the units using the Molex connector.
Diagram 5
Diagram 6
First disconnect the field cable connector from the IRmax PCB. Then attach the Molex
connector to the Molex socket on the PCB. Do not forget to replug the field connector
into the PCB.
