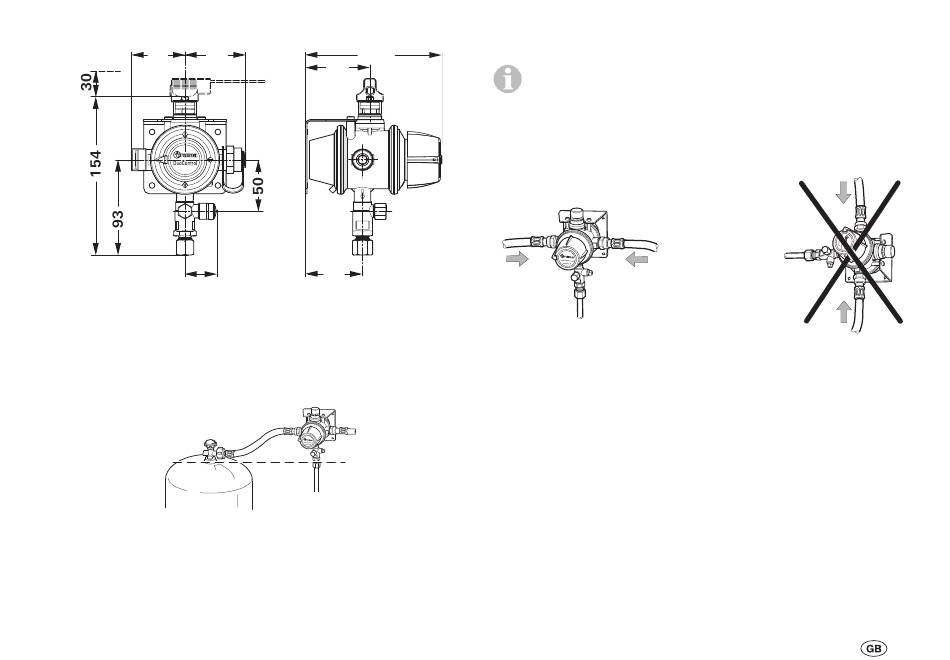

Installation dimensions

52 59
30
Fig. 3 Dimensions in mm. Not shown to scale

DuoControl installation and connection

Figure 4
The DuoControl must be installed in such a way that the
high-pressure hose connections are in the highest possible
location, which must be at least higher than the cylinder valve
level (broken line).
The high-pressure hoses must slope downwards all the way
to the cylinder valve.
133
63
pressure regulation system, particularly while driving.
The DuoControl must always be installed in such a way that the
high-pressure hose connections are arranged horizontally.
56
Figure 5
If the height available in the cylinder box is limited, we rec-
ommend fastening the DuoControl to the cylinder box cover.
The DuoControl is connected to the high-pressure line via the
M20 x 1.5 (G.13) male thread on the inlet side and is connec-
ted to the gas pipe via an olive screw connection (8 or 10 mm)
on the outlet side.
For 8 mm gas pipes, use the enclosed adapter Z 10 / RVS 8
(part no. 50020-04000) (retail only). For 10-mm pipes use the
enclosed adapter Z 8 / RVS 10 (part no. 50000-06500).
The DuoControl is intended for installation in the gas cylinder
box of the caravan or motor home.
Installation above the cylinder valves makes it more
difficult for gas in the liquid phase to penetrate the gas
19
