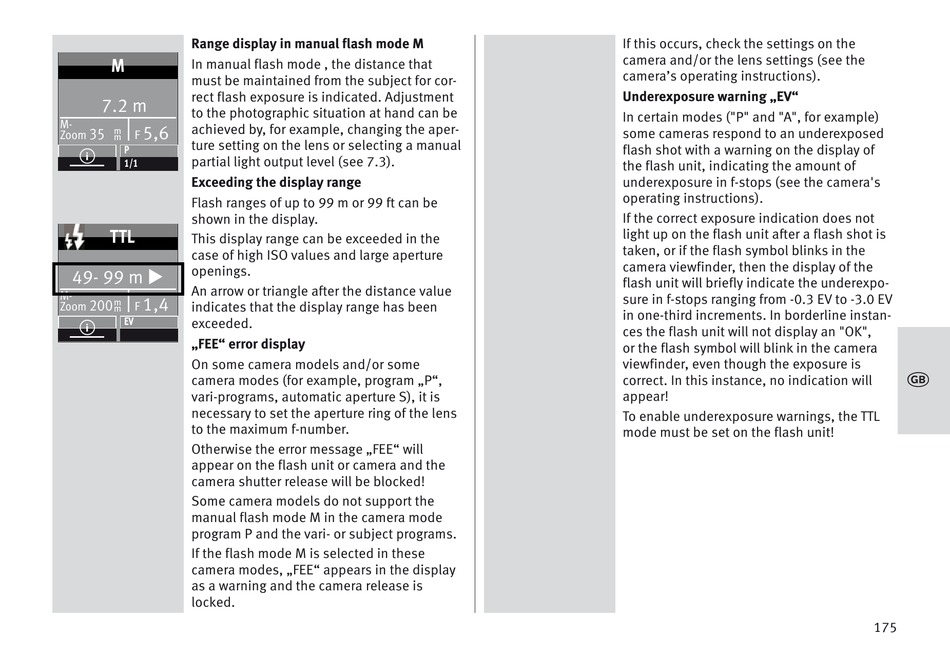

Metz mecablitz 64 AF-1 digital Bedienungsanleitung Seite 175

Range display in manual flash mode M
M
In manual flash mode , the distance that
must be maintained from the subject for cor-
rect flash exposure is indicated. Adjustment
7.2 m
to the photographic situation at hand can be
M-
achieved by, for example, changing the aper-
5,6
m
35
Zoom F
m
ture setting on the lens or selecting a manual
P
partial light output level (see 7.3).
1/1
Exceeding the display range
Flash ranges of up to 99 m or 99 ft can be
shown in the display.
TTL
This display range can be exceeded in the
case of high ISO values and large aperture
49- 99 m u openings.
An arrow or triangle after the distance value
M-
1,4
m
200
Zoom F indicates that the display range has been
m
EV exceeded.
„FEE" error display
On some camera models and/or some
camera modes (for example, program „P",
vari-programs, automatic aperture S), it is
necessary to set the aperture ring of the lens
to the maximum f-number.
Otherwise the error message „FEE" will
appear on the flash unit or camera and the
camera shutter release will be blocked!
Some camera models do not support the
manual flash mode M in the camera mode
program P and the vari- or subject programs.
If the flash mode M is selected in these
camera modes, „FEE" appears in the display
as a warning and the camera release is
locked.
If this occurs, check the settings on the
camera and/or the lens settings (see the
camera's operating instructions).
Underexposure warning „EV"
In certain modes ("P" and "A", for example)
some cameras respond to an underexposed
flash shot with a warning on the display of
the flash unit, indicating the amount of
underexposure in f-stops (see the camera's
operating instructions).
If the correct exposure indication does not
light up on the flash unit after a flash shot is
taken, or if the flash symbol blinks in the
camera viewfinder, then the display of the
flash unit will briefly indicate the underexpo-
sure in f-stops ranging from -0.3 EV to -3.0 EV
in one-third increments. In borderline instan-
ces the flash unit will not display an "OK",
or the flash symbol will blink in the camera
viewfinder, even though the exposure is
correct. In this instance, no indication will
appear!
To enable underexposure warnings, the TTL
mode must be set on the flash unit!
