Compressed Air - 3D Systems ProX DMP100 Originalanleitung

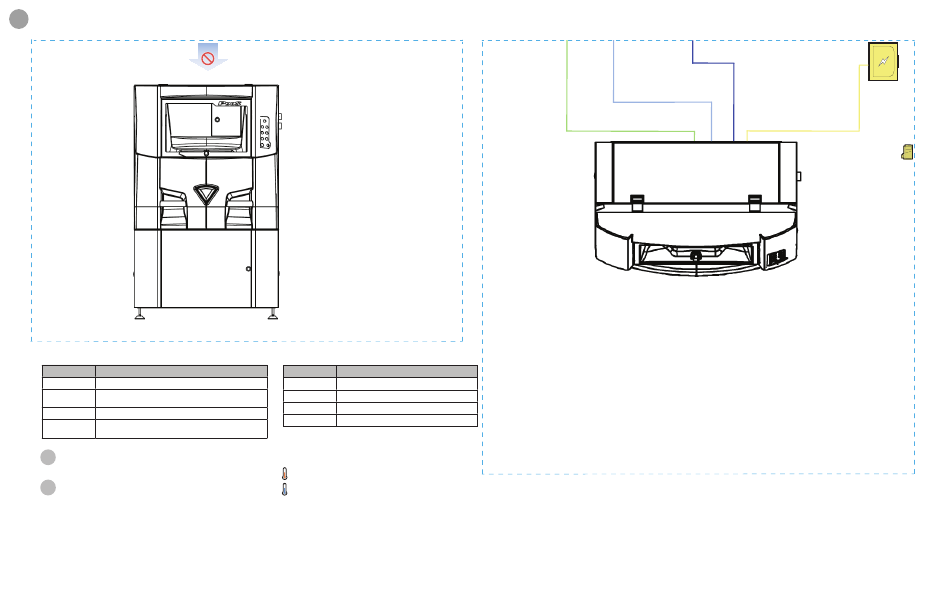

POSTER FÜR ANLAGENANFORDERUNGEN
18
Gas
Gas ProX DMP 100
Art der Verbindung Schnellkupplungsanschluss, Innendurchmesser 6 mm
Fertigung: 5 – 10 l/min
Durchflussrate
Spülung: 30 l/min
Versorgungsdruck Mindestens 5,5 bar (80 psi) - Maximal 6,9 bar (100 psi)
Stickstoff: 99,99 %
Qualität
Argon: 4,8 oder besser
Bulk gas tank
1
▪ Nitrogen : 99.99% pure nitrogen
▪ Argon : Quality 4.8
Gas cylinders
2
▪ Nitrogen : 99.99% pure nitrogen
▪ Argon : Quality 4.8
▪ Connect cylinders with auto-switching
manifold to ensure constant gas
supply during build
3D SYSTEMS, INC.
A/C
Air Conditioning
• required
• do not install vent directly above process station

Compressed Air

DRUCKLUFT
Art der Verbindung Schnellkupplungsanschluss, Innendurchmesser 6 mm
Durchflussrate 10 l/min
Versorgungsdruck Minimum 6 Bar (87 psi) - Maximum 8 Bar (116 psi)
Qualität Klasse 4,4,4 gemäß ISO 8573-1:2010
Atmosphere
max
30° C (86° F)
min 15° C (59° F)
Room temperature
setpoint and stability
• set temperature between 20° C and 25° C (68° F and 77° F)
• temperature should be constant to ±5° C (± 9° F)
ProX DMP 100
Note : the painting pipe colors are only for indication, and might not fit with your local, state and federal regulations.
Always refer to the pipe color coding standards of your local, state and federal regulations.
16
Network connection
• recommended
Control Cabinet
power panel
Compressed Air
• 230 VAC
• customer supplied/installed
• 50/60 Hz
• 5 kVA
• 1ph + neutre + PE
Inert gas
• customer supplied/installed
Room oxygen monitor
• recommended
• customer supplied/installed
• safety interlock contact rating: 10 A
PN: 80-D47-DE Rev A
