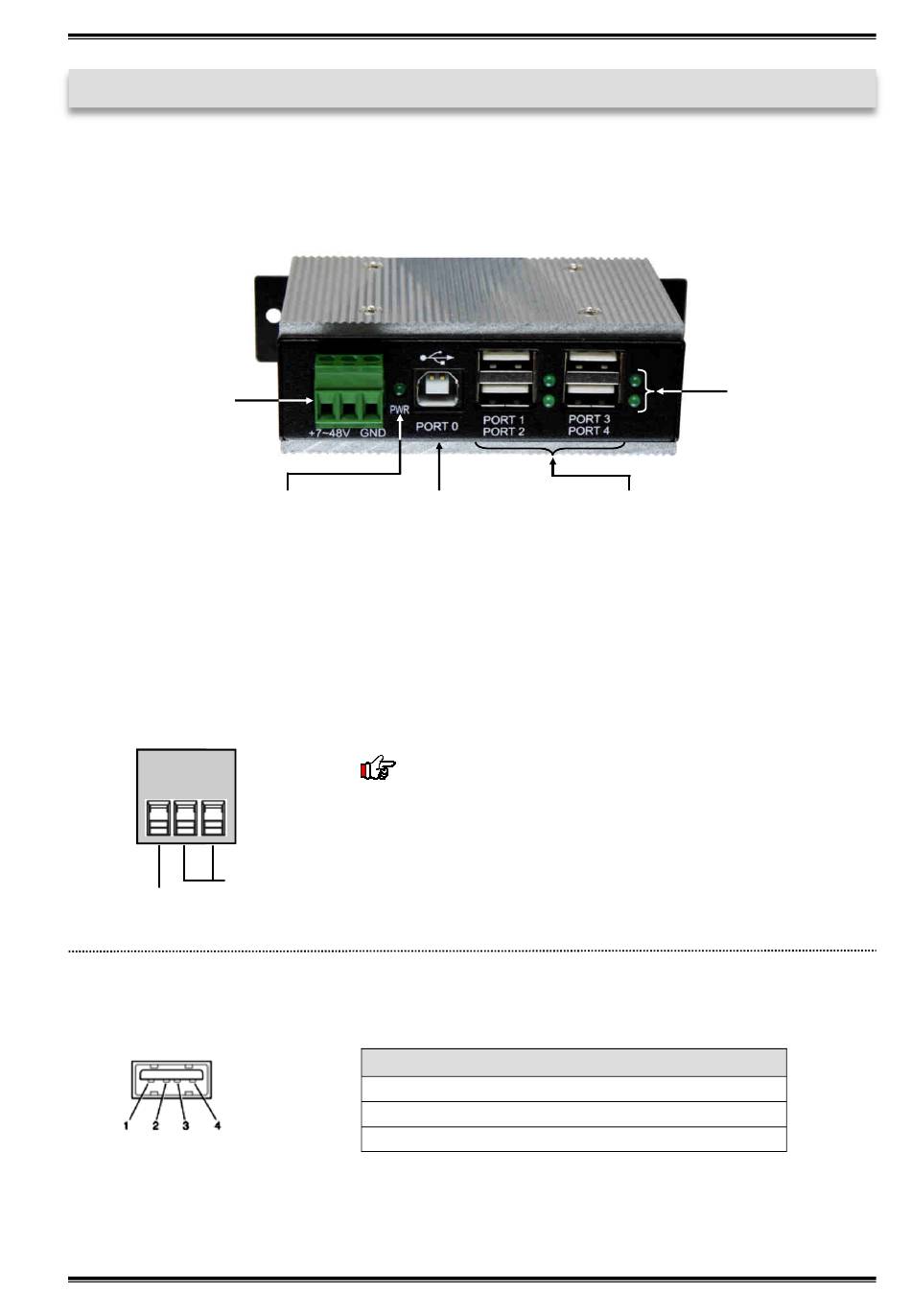

3. Layout & Connections

3.1 Layout

7-48V T-Block
for optional external
Power Supply

3.2 Connections

+7V - 48V T-Block:
GND (Ground)
GND (Ground)
+7V - 48V
USB 2.0 A-Port:
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
Power LED
1x USB 2.0
Upstream B-Port
ATTENTION!!!
Never connect power to GND, it will destroy
your Hardware!!!
USB 2.0 A-Port
Pin
1
2
4x USB 2.0
Downstream A-Port
Signal
Pin
VCC
3
DATA-
4
9
English
Status LED
for each Port
Signal
DATA+
GND
