Tecma Privilege Bedienungs- / Installations- / Wartungshandbuch Seite 66

Operation/installation/service manual
Manuale di utilizzo / installazione / manutenzione
X-light / Privilege/ Evolution/ Breeze/ E-Breeze/ Silence Plus 2G/ Elegance 2G

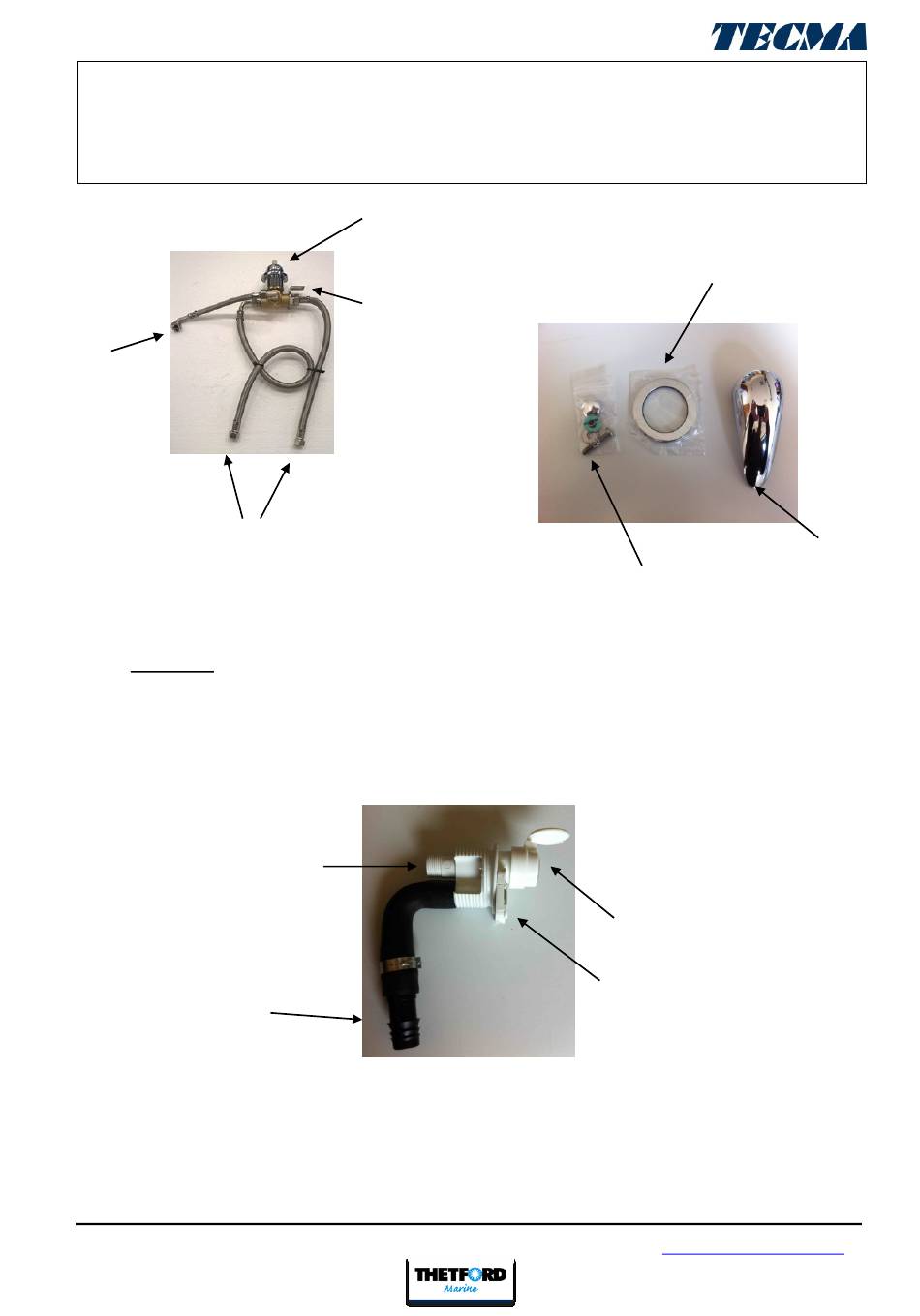

Mixed water
to toilet nozzle
Hot or cold water supply
3/8" connection (threaded female)
The nozzle
The nozzle is mounted directly on the toilet ceramic body.
Plug the hoses and the installation is done!
Bidet mixed water
supply (from mixer)
3/8" female threaded
connection
Toilet flush clean
water supply
(from solenoid or
inlet pump)
20 mm hose plug
TECMA SRL – Via Flaminia / Loc Castel delle Formiche/ 05030 Otricoli (TR) / Italy-
Manual rev1.6.2015
Mixer body
42mm OD
55mm lenght
Mounting bracket
1111111111111111
MACERATOR TOILETS
TOILET MACERATRICI
Flange OD 60mm / ID 42mm
Hardware +
gaskets
Bidet nozzle
Toilet flush nozzle
(clean water)
www.thetfordmarine.com
111111111111111111111
Standard
Handle
