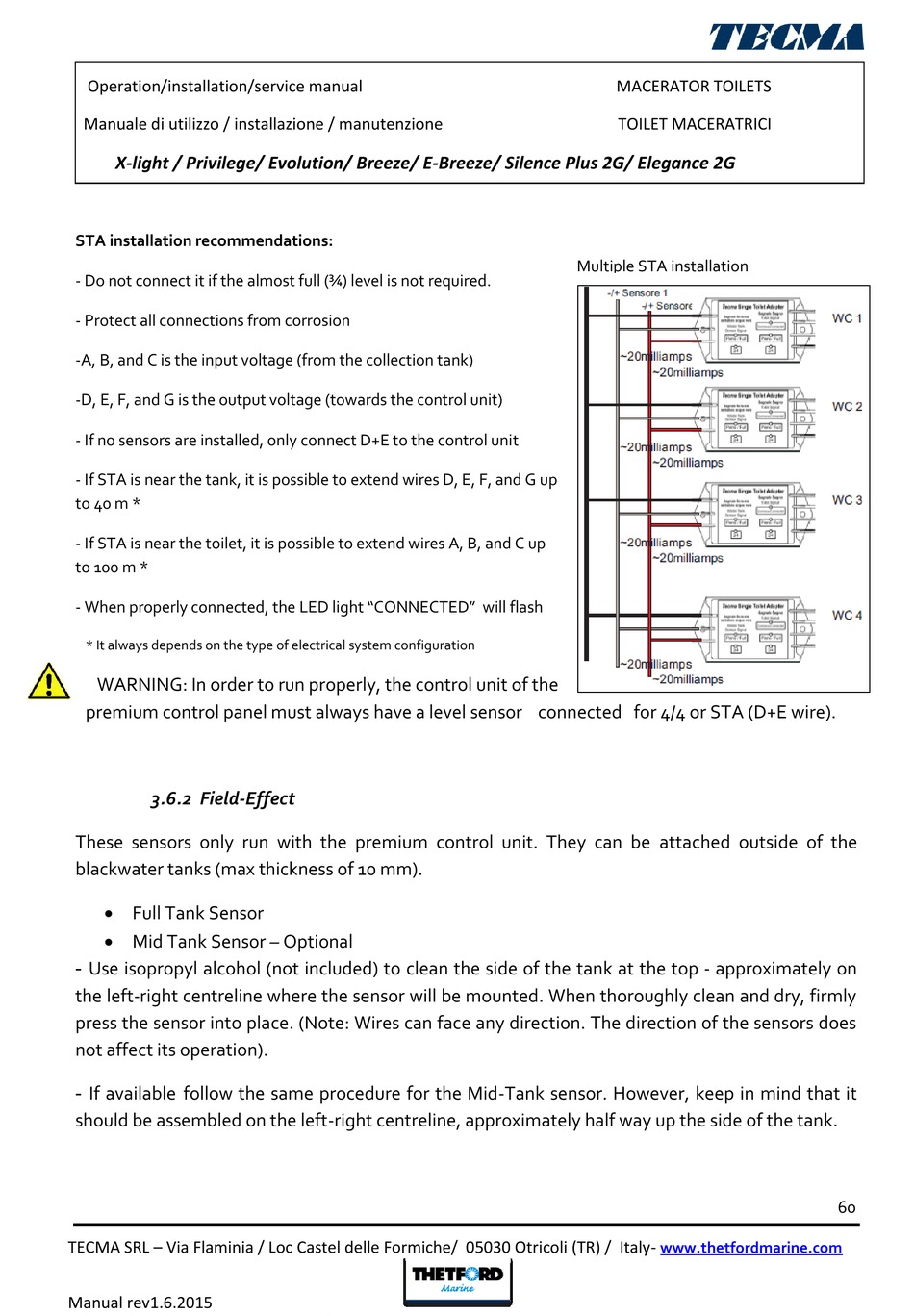

Field-Effect - Tecma Privilege Bedienungs- / Installations- / Wartungshandbuch

Operation/installation/service manual
Manuale di utilizzo / installazione / manutenzione
X-light / Privilege/ Evolution/ Breeze/ E-Breeze/ Silence Plus 2G/ Elegance 2G
STA installation recommendations:
- Do not connect it if the almost full (¾) level is not required.
- Protect all connections from corrosion
-A, B, and C is the input voltage (from the collection tank)
-D, E, F, and G is the output voltage (towards the control unit)
- If no sensors are installed, only connect D+E to the control unit
- If STA is near the tank, it is possible to extend wires D, E, F, and G up
to 40 m *
- If STA is near the toilet, it is possible to extend wires A, B, and C up
to 100 m *
- When properly connected, the LED light "CONNECTED" will flash
* It always depends on the type of electrical system configuration
WARNING: In order to run properly, the control unit of the
premium control panel must always have a level sensor connected for 4/4 or STA (D+E wire).

3.6.2 Field-Effect

These sensors only run with the premium control unit. They can be attached outside of the
blackwater tanks (max thickness of 10 mm).
 Full Tank Sensor
 Mid Tank Sensor – Optional
- Use isopropyl alcohol (not included) to clean the side of the tank at the top - approximately on
the left-right centreline where the sensor will be mounted. When thoroughly clean and dry, firmly
press the sensor into place. (Note: Wires can face any direction. The direction of the sensors does
not affect its operation).
- If available follow the same procedure for the Mid-Tank sensor. However, keep in mind that it
should be assembled on the left-right centreline, approximately half way up the side of the tank.
TECMA SRL – Via Flaminia / Loc Castel delle Formiche/ 05030 Otricoli (TR) / Italy-
Manual rev1.6.2015 1111111111111111
MACERATOR TOILETS
TOILET MACERATRICI
Multiple STA installation
www.thetfordmarine.com
111111111111111111111
60
