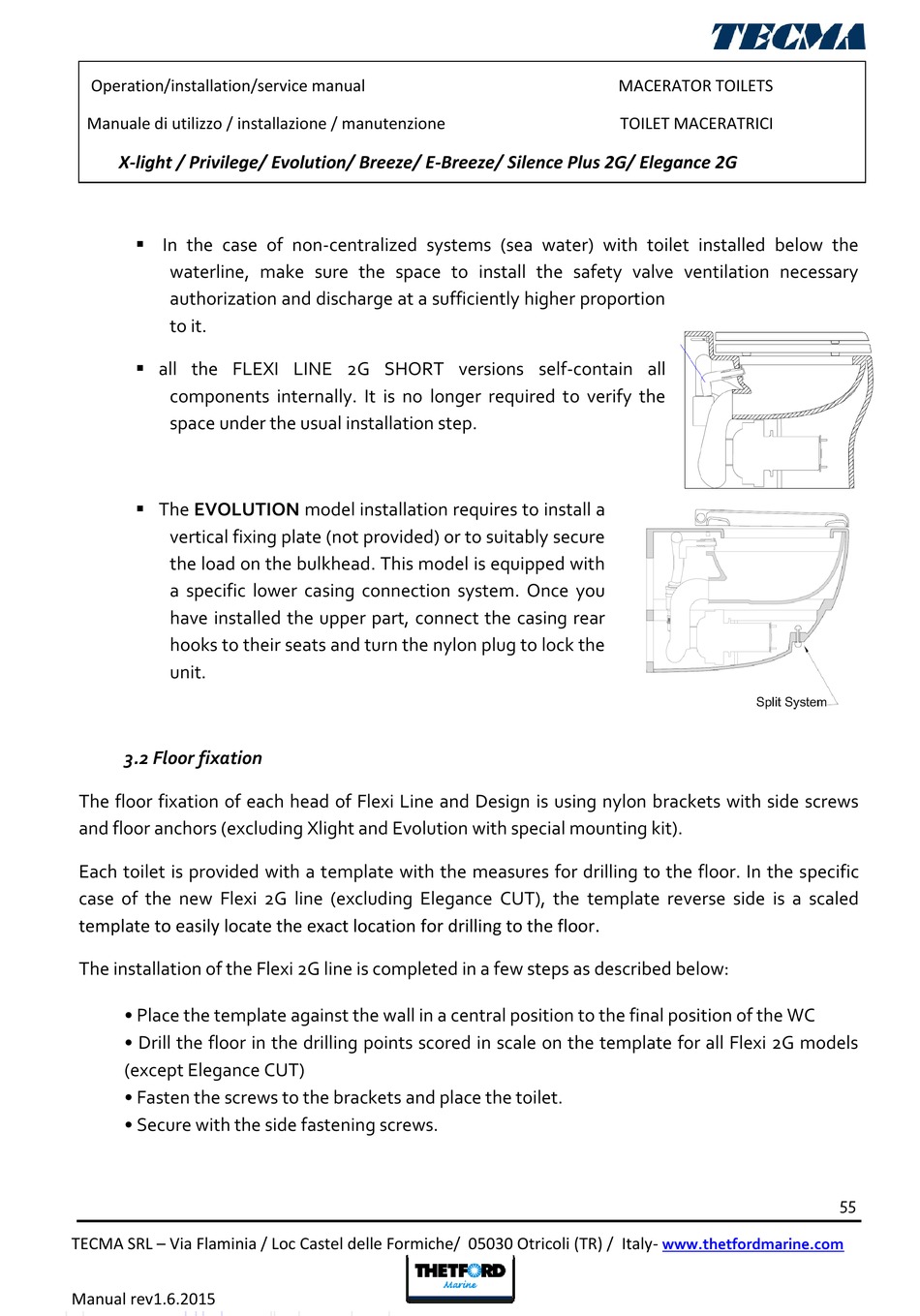

 In the case of non-centralized systems (sea water) with toilet installed below the
waterline, make sure the space to install the safety valve ventilation necessary
authorization and discharge at a sufficiently higher proportion
to it.
 all the FLEXI LINE 2G SHORT versions self-contain all
components internally. It is no longer required to verify the
space under the usual installation step.
 The EVOLUTION model installation requires to install a
vertical fixing plate (not provided) or to suitably secure
the load on the bulkhead. This model is equipped with
a specific lower casing connection system. Once you
have installed the upper part, connect the casing rear
hooks to their seats and turn the nylon plug to lock the
unit.

3.2 Floor fixation

The floor fixation of each head of Flexi Line and Design is using nylon brackets with side screws
and floor anchors (excluding Xlight and Evolution with special mounting kit).
Each toilet is provided with a template with the measures for drilling to the floor. In the specific
case of the new Flexi 2G line (excluding Elegance CUT), the template reverse side is a scaled
template to easily locate the exact location for drilling to the floor.
The installation of the Flexi 2G line is completed in a few steps as described below:
• Place the template against the wall in a central position to the final position of the WC
• Drill the floor in the drilling points scored in scale on the template for all Flexi 2G models
(except Elegance CUT)
• Fasten the screws to the brackets and place the toilet.
• Secure with the side fastening screws.
