11. Electroforming with the DeguDent Solaris:

Step Action Menu Display
1 Selection of • Main Menu
"Electroforming"
mode
2 Selection of • Number of electrodes, supra-
Parameter 1 structures and Plaster Release
ON/OFF are displayed
3 Selection of • Coating thicknesses and sample
Parameter 2 types are displayed
• Automatic determination and
display of calculated liquid amount,
activator and glass size
4 Preparation • Coating thicknesses, sample types
and resulting slots are displayed
• Liquid amount, activator and glass
size are displayed
• Visualization of sample placement
5 Starting • Slots and contact detection are
Electroforming displayed
• Dynamic display of time remaining
(heating the electroforming bath,
electroforming, plaster removal)
• Current bath temperature is
displayed
• Dynamic updating of the process
status
30
User Actions
• Select "Electroforming" from
the menu
• Confirm your selection by pressing
ENTER
• Adjust the number of electrodes or
suprastructures
• Activate/deactivate plaster release
• Press START to change the menu
• Separately adjust the coating
thicknesses of all samples
• Select all sample types
• Press START to change the menu
• Fill in the calculated goldplating bath
amount and the activator in the
specified glass
• Place the glass slide according to
what is shown in the display
• If necessary, fill with 500 ml of plaster
remover
• Press START to change the menu
• Press START to begin electroforming

12. Recycling of residual gold:

• The recycling process is effected directly through the unit (see the unit's Instructions for Use).
• The recycling cathode is colour-coded in red.
• The amount of liquid has to be entered.
• Alternatively, the recycling sponge can also be used.

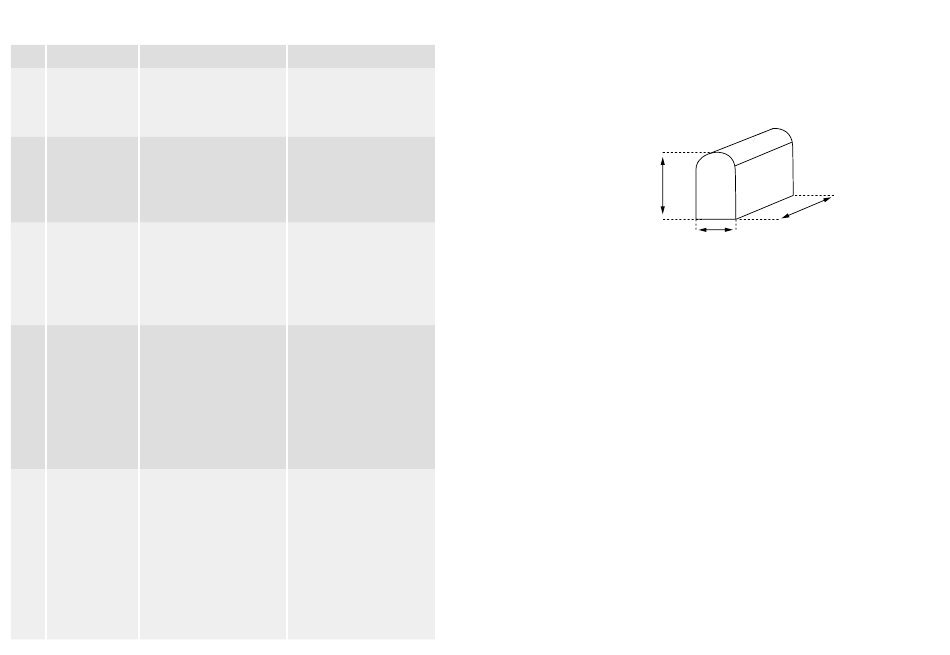

13. Solaris: Examples of bar attachments:

H
The DeguDent Solaris galvano system can be used for electroplating bar sleeves with a surface
of up to 2200 mm for one bar and a surface of 1100 mm
2
With bars, you should aim at a thickness of the electroplating layer of 300 µm.
Example for bars:
Formula: Surface F = (width x length) + 2 x (height x length)
Approximations:
Current level 1: 50 mm 2
Current level 2: 65 mm 2
Current level 3: 90 mm 2
Current level 4: 115 mm 2
Current level 5: 150 mm 2
Current level 6: 200 mm 2
Current level 7: 265 mm 2
Current level 8: 300 mm 2
Example:
2 bar abutments (current levels 4 and 5) plus bar sleeve (length, 25 mm; height, 4 mm; width, 3 mm)
Calculation:
2 bar abutments = 115 mm 2 + 150 mm 2 = 265 mm
Bar sleeve = (3 mm x 25 mm) + 2 x (4 mm x 25 mm) = 275 mm
Total area: 265 mm 2 + 275 mm 2 = 540 mm 2
Glass slides 3 and 6 are available for electroplating bars.
• Separate work instructions are available for the bar attachments process.
L
W
each for two bars in a single process.
2
2
2
