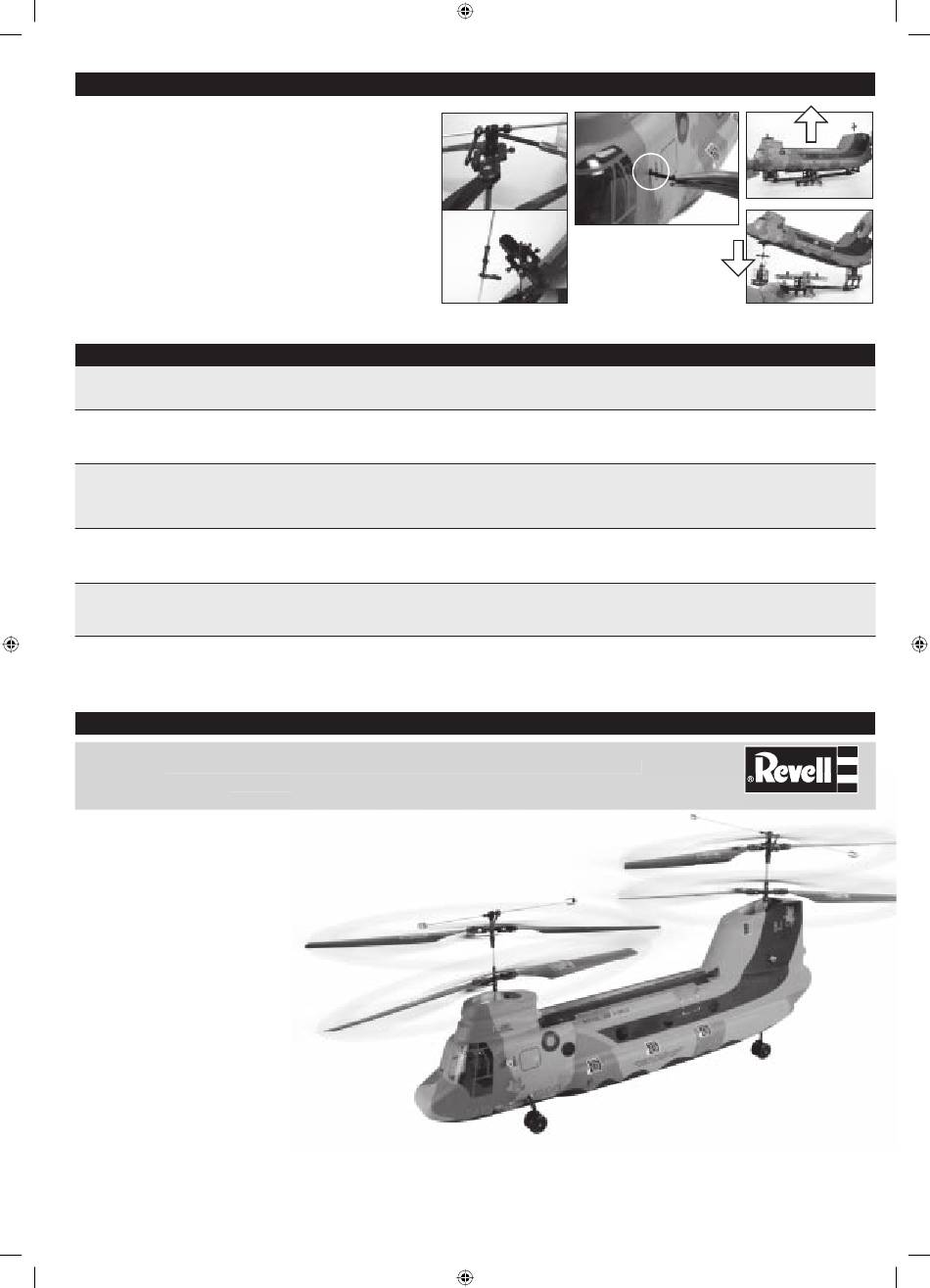

Service Information - REVELL Control CHINOOK Bedienungsanleitung

If the helicopter's fuselage is damaged and needs to be replaced, switch the controller to
OFF and remover the connector from the helicopter battery. Proceed as follows:
1. Remove all rotor blades from the helicopter as described above.
2. Remove the stabilizer from the fi xture. To do this, use a Phillips head (cross-head)
screwdriver to prise open the fi xture (pic. 1/pic. 2).
3. Remove all wheels from the helicopter as described above.
4. Remove both fuselage fi xing pins. (pic. 3)
5. Now carefully lift the fuselage off the helicopter (pic. 4).
6. Place the new fuselage on the helicopter and reassemble all parts in reverse order. (pic. 5)
Problem:
The rotor blades are not turning.
Problem:
Radio control is not working.
Problem:
Helicopter does not respond
to the controller.
Problem:
The helicopter is not taking off.
Problem:
The helicopter suddenly stops
fl ying and drops.
Problem:
The helicopter lands too fast.
Go to www.revell-control.de to order options and tips on replacing spare parts,
10
Chinook_Anleitung_03.indd 10 Chinook_Anleitung_03.indd 10
Replacing the fuselage
Causes:
• The ON/OFF switch is "OFF".
• The battery is too weak or dead.
Causes:
• The ON/OFF switch is "OFF".
• The batteries were not inserted correctly.
• The batteries are too weak.
Causes:
• The controller's ON/OFF switch is "OFF".
• The helicopter's ON/OFF switch is "OFF".
• The controller's antenna is incorrectly inserted
and/or not fully extended.
Causes:
• The rotor blades are turning too slowly.
• There is not enough battery power.
Causes:
• The battery is too weak.
Causes:
• Loss of throttle control.
• Throttle is pulled down too fast.
plus other useful information on all Revell Control models. useful information on all Revell Control models.
pic. 1
pic. 3
pic. 2
Troubleshooting Safety Tips
Solutions:
Solutions:
Solutions:
Solutions:
Solutions:
Solutions:

Service Information

pic. 4
• Turn the ON/OFF switch to "ON".
• Recharge the battery (see "Charging the Helicopter Battery" section).
• Set ON/OFF switch to "ON".
• Check that the batteries are correctly inserted.
• Insert new batteries.
• Turn the controller's ON/OFF switch to "ON".
• Turn the helicopter's ON/OFF switch to "ON".
• Check antenna and extend to full height.
• Push the throttle stick up.
• Recharge the battery (see "Charging the
Helicopter Battery" section).
• Recharge the battery
(see "Charging the Helicopter Battery" section).
• Slowly move the throttle stick to the down position.
www.revell-control.de www.revell-control.de
13.05.2009 15:11:13 Uhr 13.05.2009 15:11:13 Uhr
pic. 5
