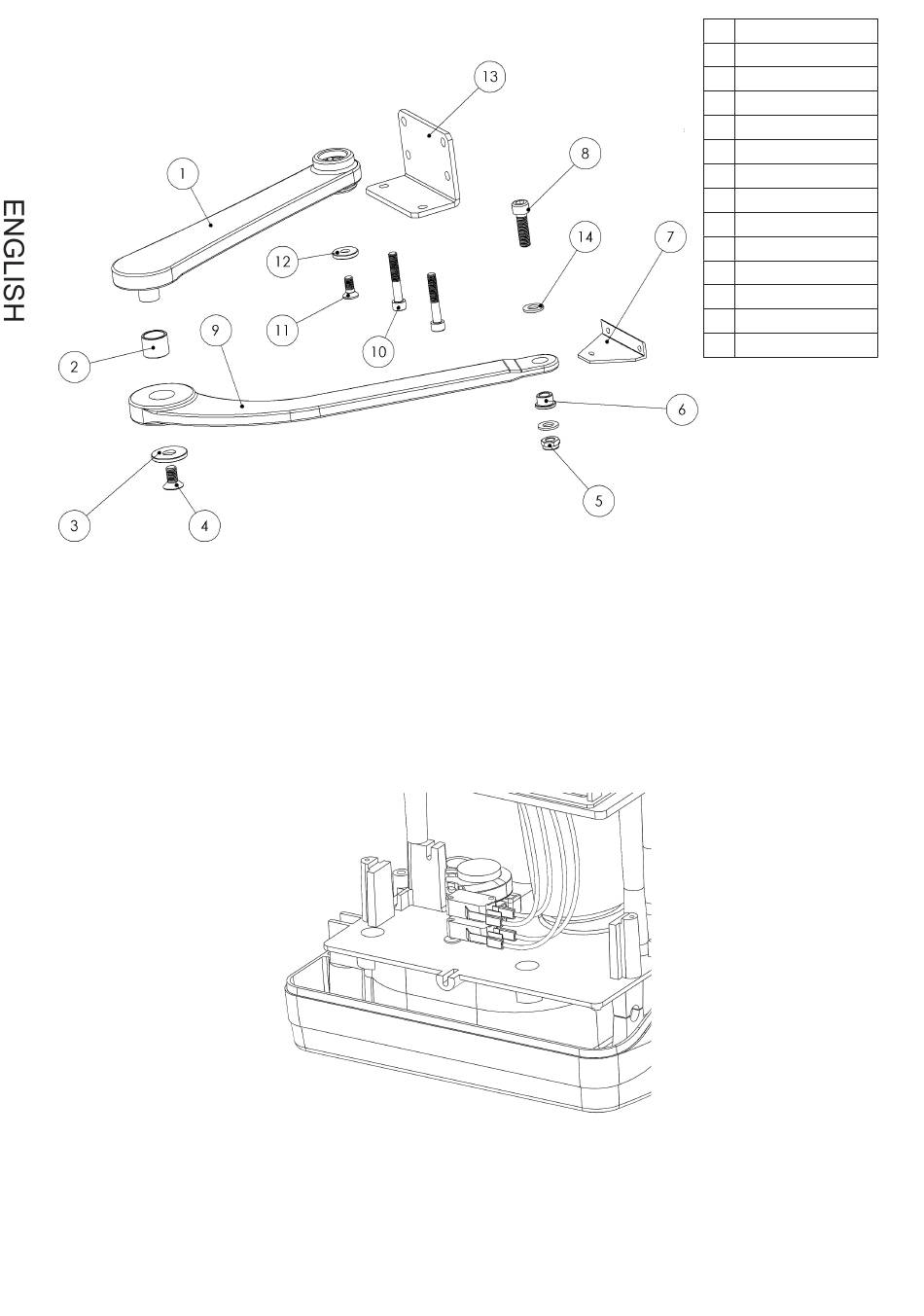

APPLICATION OF THE ARTICULATED ARM

ADJUSTMENT OF STOP MICROSWITCH

Adjustment of stop microswitch during opening: release the gearmotor and allow the door to reach
the opening position desired. Turn the lower cam clockwise until the microswitch is inserted and
lock it with the central screw.
20
1 500BRMOT
2 450BR20X25H20
3 410RPS35X4FIS
4 390V10X20TPS
5 400DAM10B
6 700BOCD24X12
7 520SANPS2
8 390V10X35TCE
9 500BRCANC
10 390V8X50TCE
11 390V8X20TPS
12 410RPS25X4FIS
13 520STARMUR20
14 410RD10
