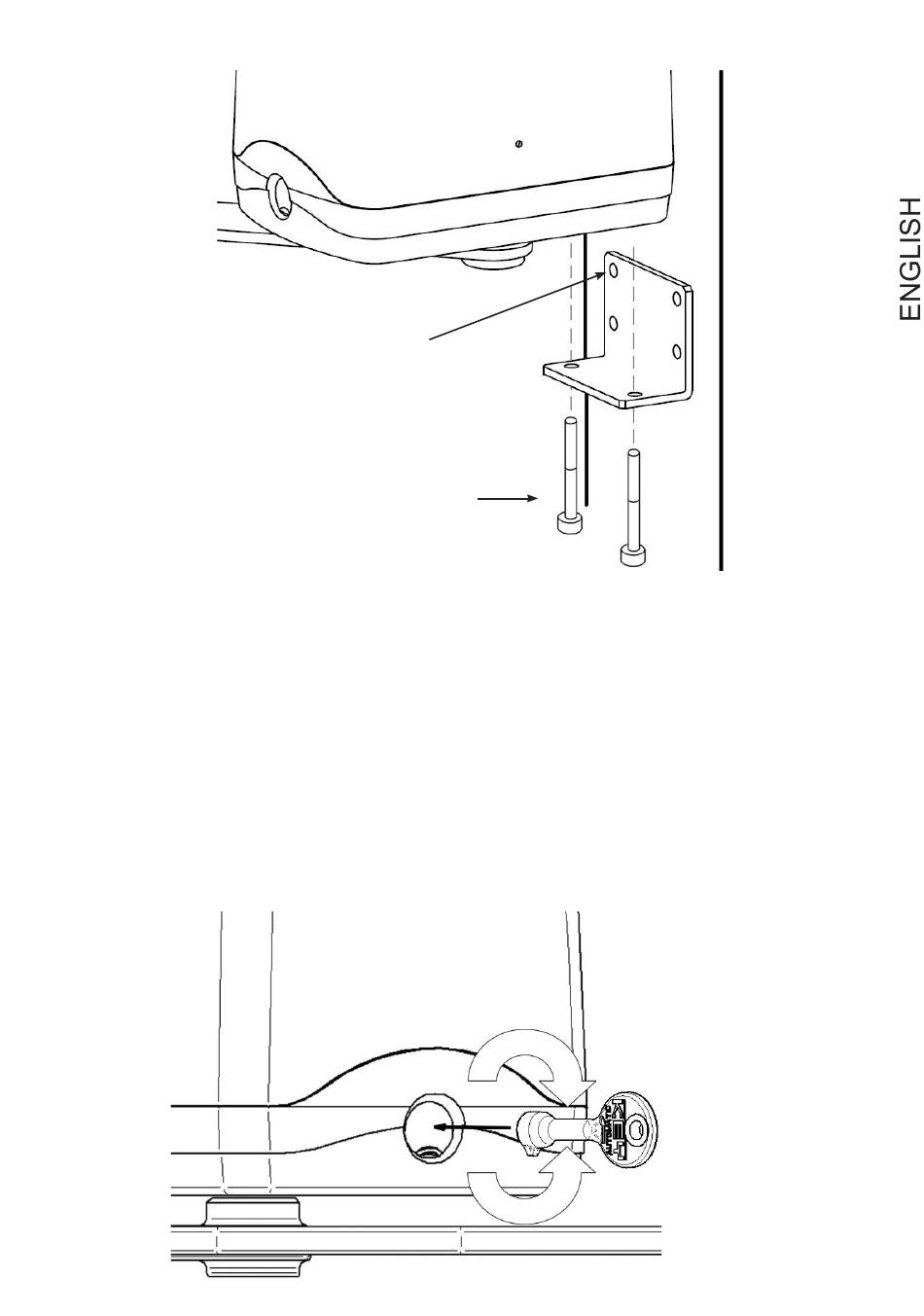

INSTALLATION.

Hole for wall fix
screw M8x50 TCE UNI 593 ZN 8.8
- Use M8 screws and ø14 screw anchors to mount the base plate on the pillar.
Be sure to respect the 100 mm. minimum distance from the pavement.
- Attach the bracket to the gate wing (use M6 screws or wlds). Be sure to respect the offsets "C"

UNLOCK

To unlock the engine you must follow these steps:
1) to lift the lid plastic on the front of the engine.
2) add the key to triangle;
3) turn the key clockwise until it clicks;
For lock rotate counter-clockwise to its initial position.
UNLOCK
LOCK
