Adjustment screw
for movement detection
sensitivity
Polarity "-"
of the battery
3V lithium CR123A
battery

Fitting the battery


– Unscrew the 4 screws of the top of CANIBEEP PRO collar using a Philips screwdriver.
– Insert the battery (3V lithium CR123A) paying attention to follow the polarity indicated on the
battery housing (see Diagram 2).
– A beep sound (low pitch) is emitted and the red indicator flashes, indicating the battery has
been properly inserted.
– Replace the top cover in the right way. Check that the led window is located right above the
led indicator inside the collar (see Diagram 1). Ensure that the rubber seal is in its groove,
and check that both rubber seal and groove are clean in order to avoid any watertightness
problem.
– Firmly screw up the 4 screws in order to maintain your product's watertightness.
You can now turn your CANIBEEP PRO collar On.
GB -21

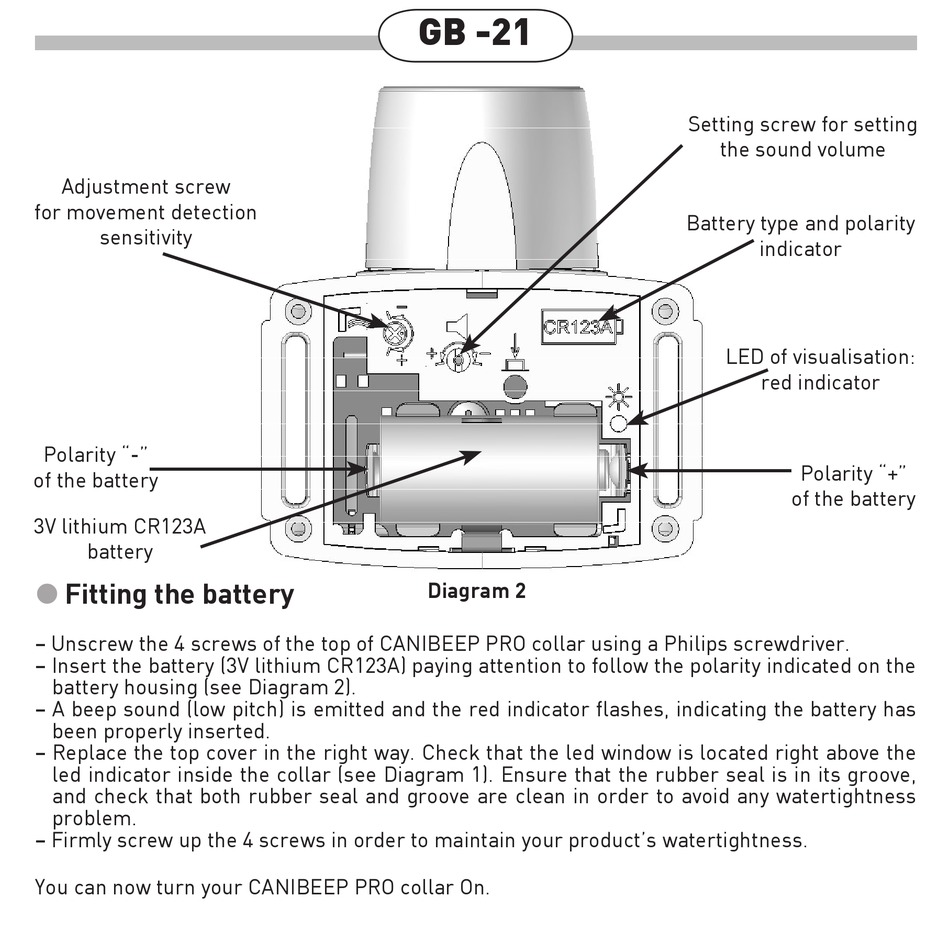

Diagram 2
Setting screw for setting
the sound volume
Battery type and polarity
indicator
LED of visualisation:
red indicator
Polarity "+"
of the battery
