Grease layer thickness measuring device Multi Control
Installation of below ground separators

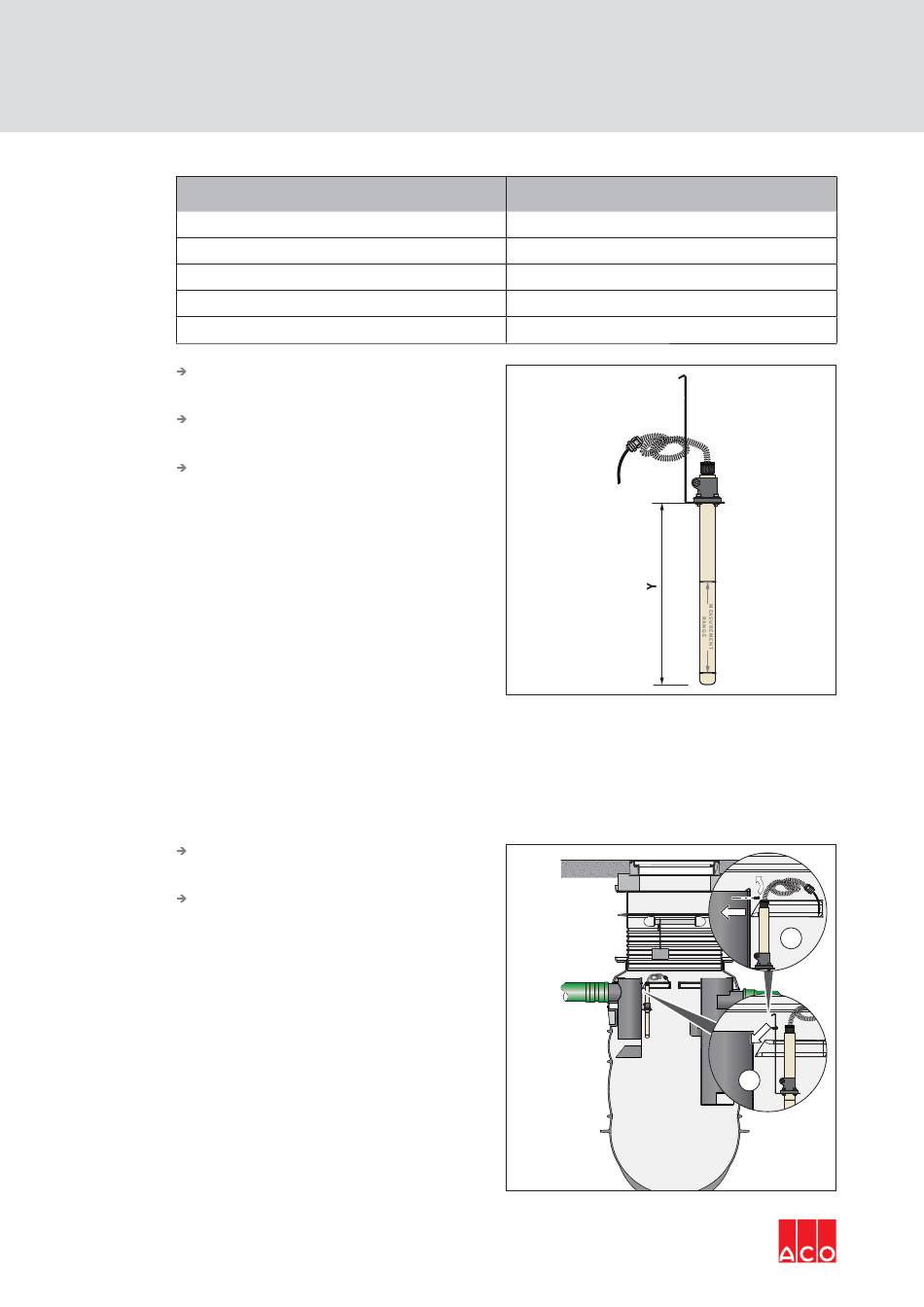

Loosen the screws on the compression
fitting.
Move the measuring rod to setting level
Y.
Tighten the screws on the compression
fitting fingertight again.
4.2 Mount the measuring rod unit in the
IMPORTANT Protect the end of the connecting cable against the penetration of moisture.
Hang the measuring rod unit on the
inflow dip tube (1).
Attach the mounting bracket to the inflow
dip tube with the supplied screws (EJOT)
(2).
54/ 72
Nominal size/NS
2 and 4
5.5
7
8.5
10
separator
Setting level Y [mm]
240
260
315
370
415
1.
2.
