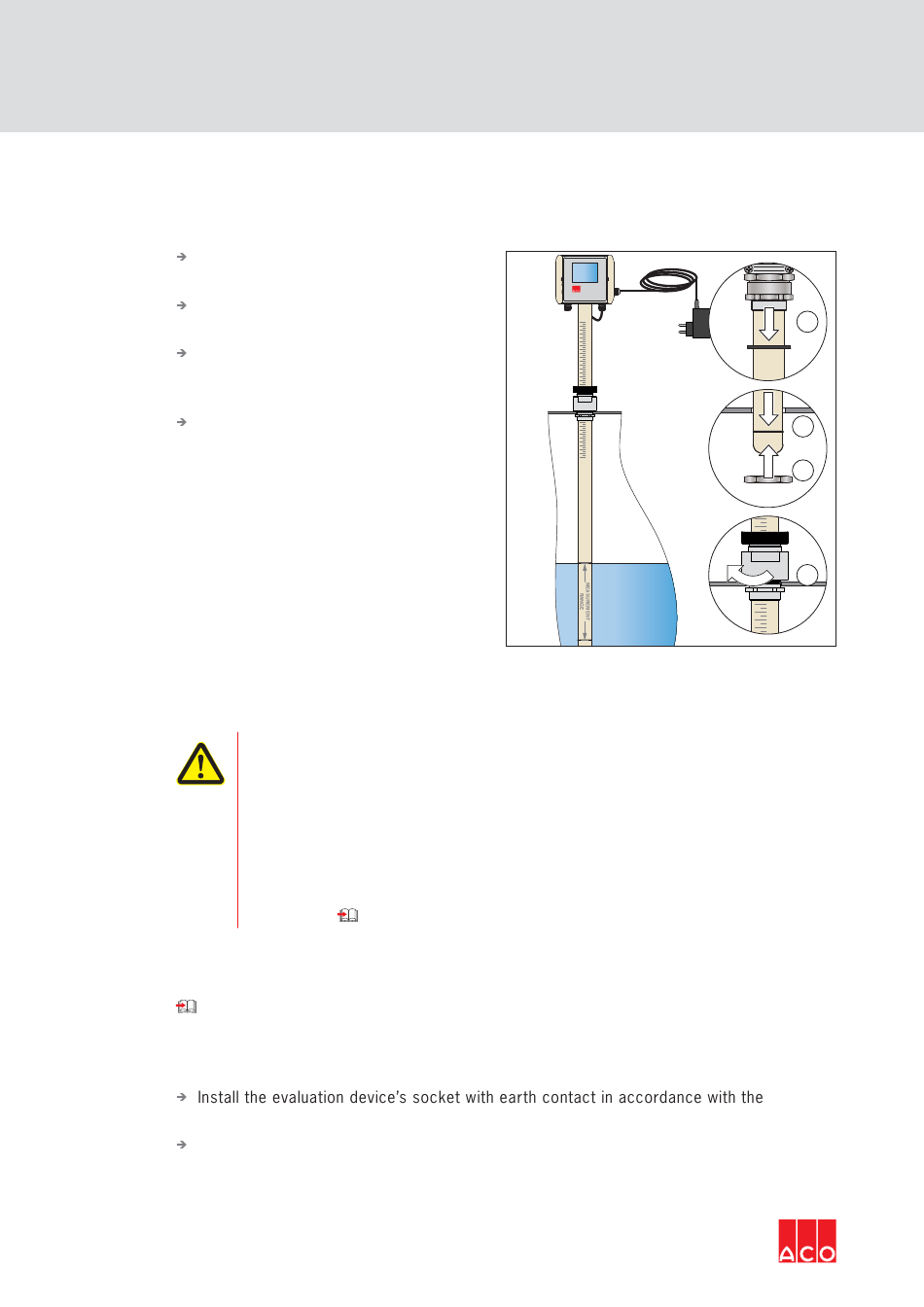

Installation of free-standing separators
3.3.3 Oval and round shape–stainless steel (material grade
Release the counter-nut from the thread
of the compression fitting.
Insert the measuring scale through the
assembly opening (2).
Push the counter-nut over the inspection
opening from the inside over the
measuring scale (3).
Create the screw connection, tighten the
counter-nut and the compression fitting
with the pipe wrench until hand tight (4).

3.4 Electrical installation

3.4.1 Electrical data

Chapter 8.1 "Characteristic data of the evaluation device".
3.4.2 Electrical installation
manufacturer's instructions.
Set up group alarm. The evaluation device has three isolated contacts for the
transmission of two operation signals (pre- and full alarm) and a group alarm. For
onward transmission a conduit must be connected to the evaluation device.
52/ 72
316)
WARNING
Risk of electric shock due to live parts
The evaluation device must not be connected to the power supply until the
■
assembly work and electrical installation have been completed.
Work on electrical connections must be carried out by qualified electricians
■
only.
Electrical connections must be carried out in accordance with the circuit
■
diagram, Chapter 8.4 "Circuit diagram".
