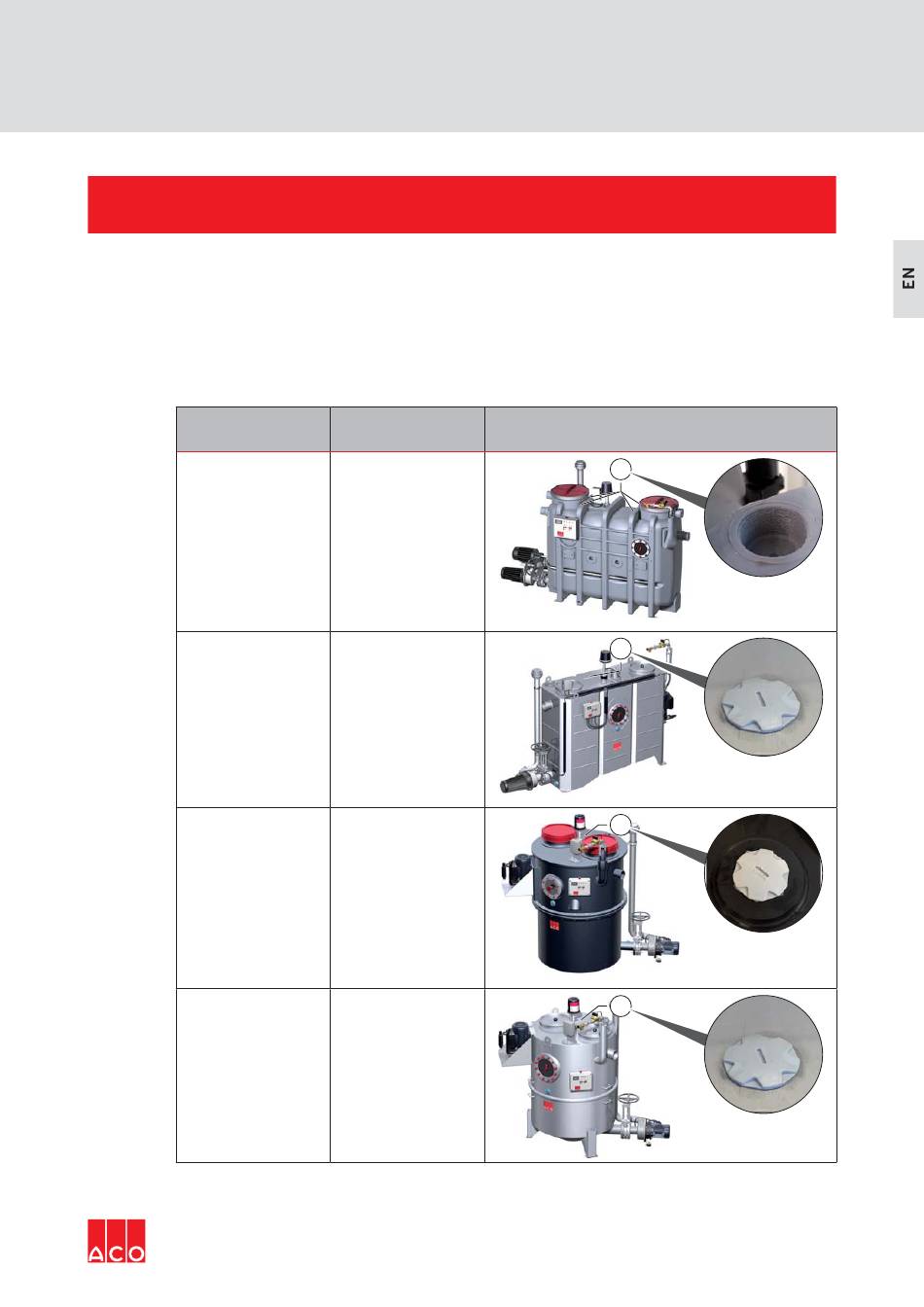

Installation of free-standing separators

3.1 Connection openings

ACO grease separators are normally delivered with an installation opening for the Multi Control
grease layer thickness measuring device.
Grease separator
type
Oval shape - Polyethylene
(PE-HD)
e.g. Hydrojet OAE
Oval shape – stainless
steel (material grade
316)
e.g. Lipurat OAE
Round shape -
Polyethylene (PE-HD)
e.g. Hydrojet OAE
Round shape – stainless
steel (material grade
316)
e.g. Lipurat OAE
Grease layer thickness measuring device Multi Control
Installation of free-standing separators
Version
Thread size M 40x1.5,
bottom must be drilled
out
Bore hole Ø41 mm,
seal with plug
Thread size M 40x1.5,
seal with plug
Bore hole Ø41 mm,
seal with plug
Layout
4x
1x
1x
1x
