Attachment of Accessories (A2111 Tri-Star Swivel Adaptor)
1. Position base unit Swivel Adaptor to desired position.
2. Insert the XR2 TriStar Swivel Adaptor retaining screw into the Link Arm Locking Knob and rotate
knob clockwise.
3. When the XR2 TriStar Swivel Adaptor is set to the desired position, engage starburst teeth and
turn the Link Arm Locking Knob clockwise to secure.
NOTE: Refer to the Tri-Star Swivel Adaptor Instruction For Use manual for proper use and care.
XR2 TriStar
Swivel
Adaptor

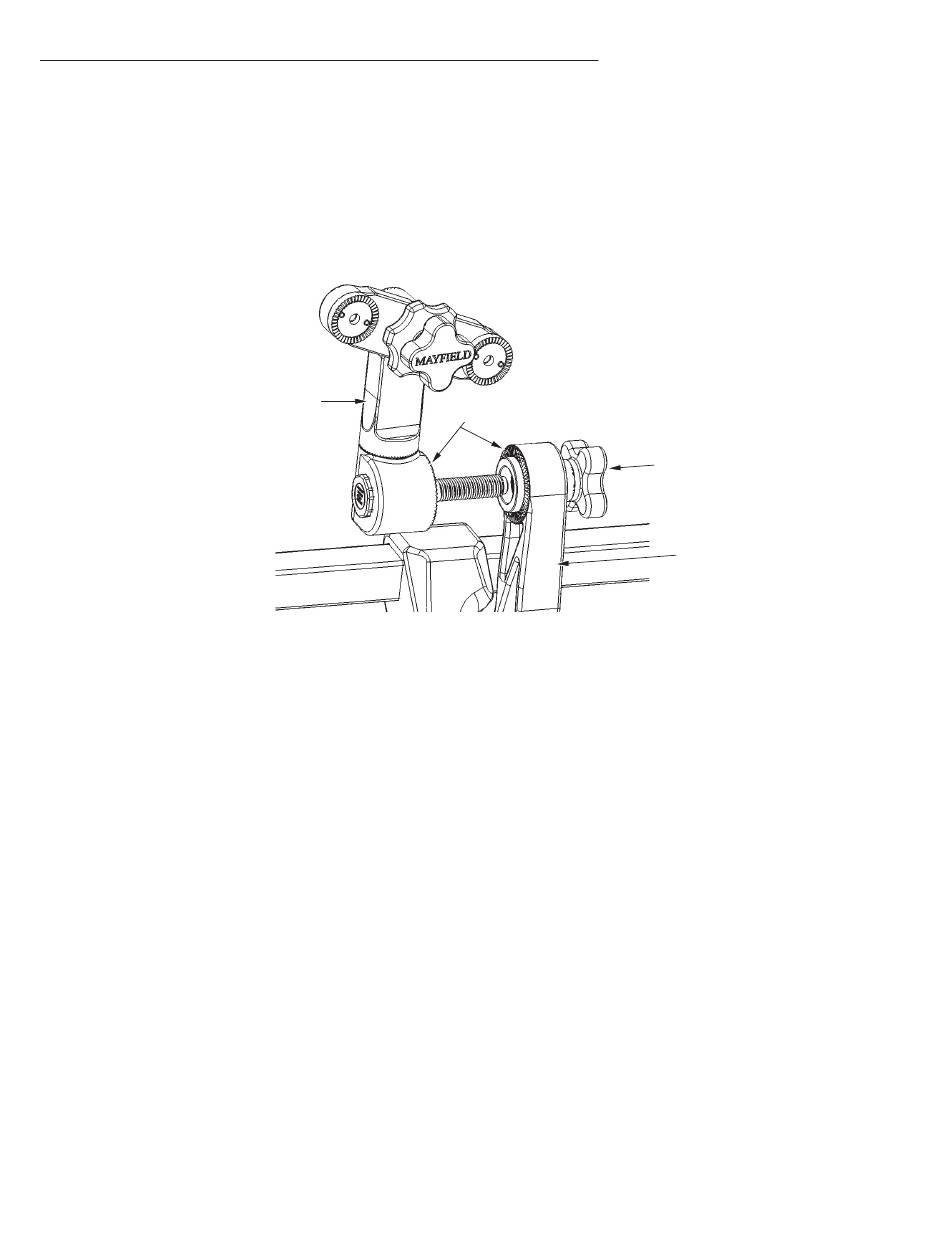

Figure 6 Mounting XR2 Tri-Star Swivel Adaptor
Starburst Teeth
Page 9
Link
Arm
Locking
Knob
Link
Arm
