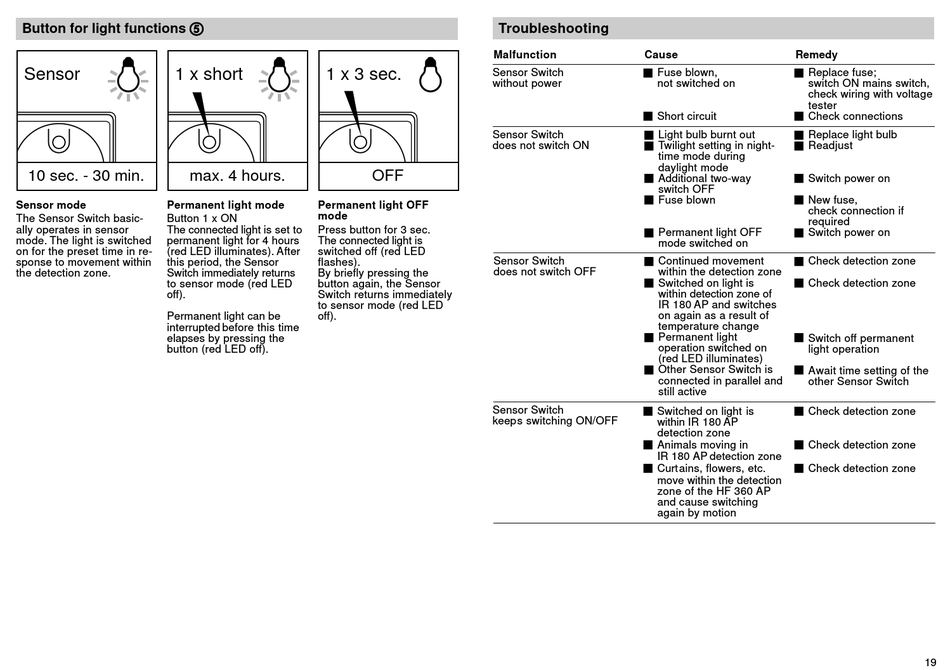

Button for light functions
Sensor 1 x short
10 sec. - 30 min. max. 4 hours.
Sensor mode Permanent light mode
The Sensor Switch basic- Button 1 x ON
ally operates in sensor The connected light is set to
mode. The light is switched permanent light for 4 hours
on for the preset time in re- (red LED illuminates). After
sponse to movement within this period, the Sensor
the detection zone. Switch immediately returns
to sensor mode (red LED
off).
Permanent light can be
interrupted before this time
elapses by pressing the
button (red LED off).
18
Malfunction
1 x 3 sec.
Sensor Switch
without power
Sensor Switch
does not switch ON
OFF
Permanent light OFF
mode
Press button for 3 sec.
The connected light is
switched off (red LED
Sensor Switch
flashes).
does not switch OFF
By briefly pressing the
button again, the Sensor
Switch returns immediately
to sensor mode (red LED
off).
Sensor Switch
keeps switching ON/OFF

Troubleshooting

Cause
Fuse blown,
a
not switched on
Short circuit
a
Light bulb burnt out
a
Twilight setting in night-
a
time mode during
daylight mode
Additional two-way
a
switch OFF
Fuse blown
a
Permanent light OFF
a
mode switched on
Continued movement
a
within the detection zone
Switched on light is
a
within detection zone of
IR 180 AP and switches
on again as a result of
temperature change
Permanent light
a
operation switched on
(red LED illuminates)
Other Sensor Switch is
a
connected in parallel and
still active
Switched on light is
a
within IR 180 AP
detection zone
Animals moving in
a
IR 180 AP detection zone
Curtains, flowers, etc.
a
move within the detection
zone of the HF 360 AP
and cause switching
again by motion
Remedy
Replace fuse;
a
switch ON mains switch,
check wiring with voltage
tester
Check connections
a
Replace light bulb
a
Readjust
a
Switch power on
a
New fuse,
a
check connection if
required
Switch power on
a
Check detection zone
a
Check detection zone
a
Switch off permanent
a
light operation
Await time setting of the
a
other Sensor Switch
Check detection zone
a
Check detection zone
a
Check detection zone
a
