Lenord + Bauer

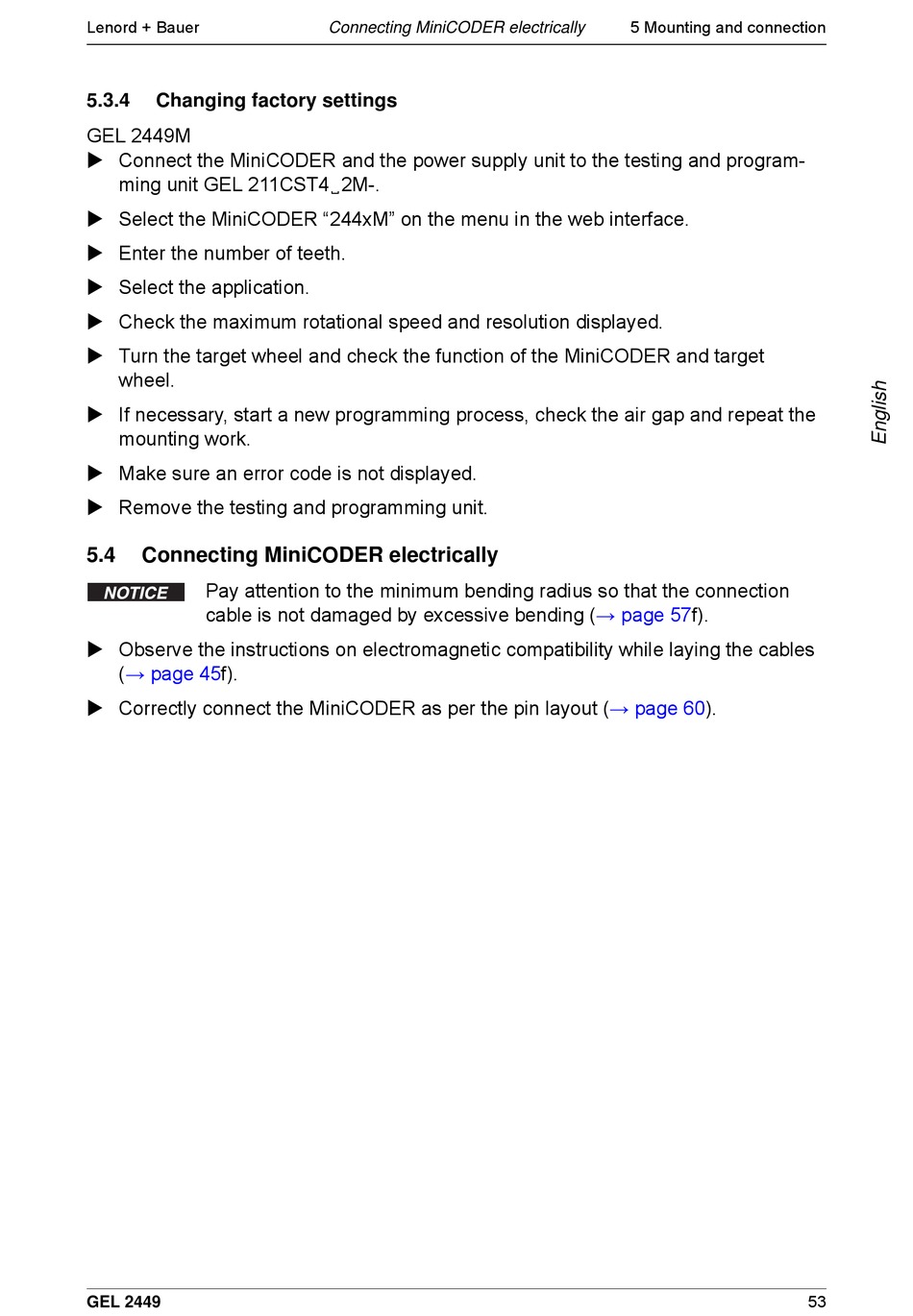

5.3.4

Changing factory settings

GEL 2449M
 Connect the MiniCODER and the power supply unit to the testing and program-
ming unit GEL 211CST4␣2M-.
 Select the MiniCODER "244xM" on the menu in the web interface.
 Enter the number of teeth.
 Select the application.
 Check the maximum rotational speed and resolution displayed.
 Turn the target wheel and check the function of the MiniCODER and target
wheel.
 If necessary, start a new programming process, check the air gap and repeat the
mounting work.
 Make sure an error code is not displayed.
 Remove the testing and programming unit.
5.4

Connecting MiniCODER electrically

Pay attention to the minimum bending radius so that the connection
cable is not damaged by excessive bending
 Observe the instructions on electromagnetic compatibility while laying the cables
(→ page 45f).
 Correctly connect the MiniCODER as per the pin layout
GEL 2449
Connecting MiniCODER electrically
5 Mounting and connection
(→ page 57f).
(→ page 60).
53
