Lenord + Bauer
5.2

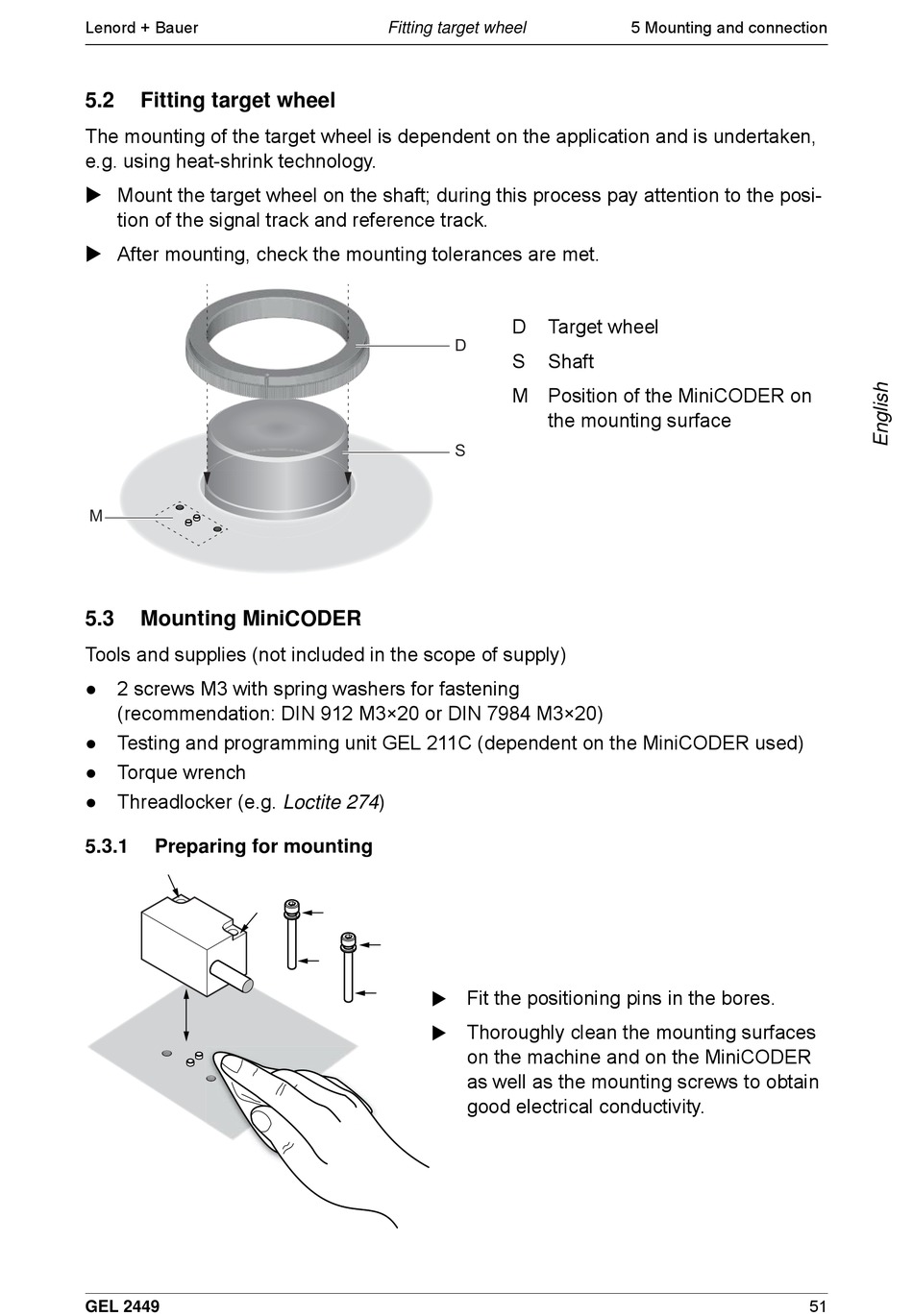

Fitting target wheel

The mounting of the target wheel is dependent on the application and is undertaken,
e.g. using heat-shrink technology.
 Mount the target wheel on the shaft; during this process pay attention to the posi-
tion of the signal track and reference track.
 After mounting, check the mounting tolerances are met.
M
5.3

Mounting MiniCODER

Tools and supplies (not included in the scope of supply)
● 2 screws M3 with spring washers for fastening
(recommendation: DIN 912 M3×20 or DIN 7984 M3×20)
● Testing and programming unit GEL 211C (dependent on the MiniCODER used)
● Torque wrench
● Threadlocker (e.g. Loctite 274)
5.3.1

Preparing for mounting

GEL 2449
Fitting target wheel
D Target wheel
D
S Shaft
M Position of the MiniCODER on
the mounting surface
S
Fit the positioning pins in the bores.
Thoroughly clean the mounting surfaces
on the machine and on the MiniCODER
as well as the mounting screws to obtain
good electrical conductivity.
5 Mounting and connection
51
