Cleaning the Scanner

Regular maintenance of your scanner can help to ensure continual optimal performance.
Using a soft, lint-free cloth, wipe down all plastic surfaces on the scanner.

Cleaning the Automatic Document Feeder

You may need to clean the ADF feed mechanism if documents do not feed easily into the ADF, or
several feed in at the same time.
To clean the ADF:
1. Wet a soft cloth with some Isopropyl alcohol (rubbing alcohol).

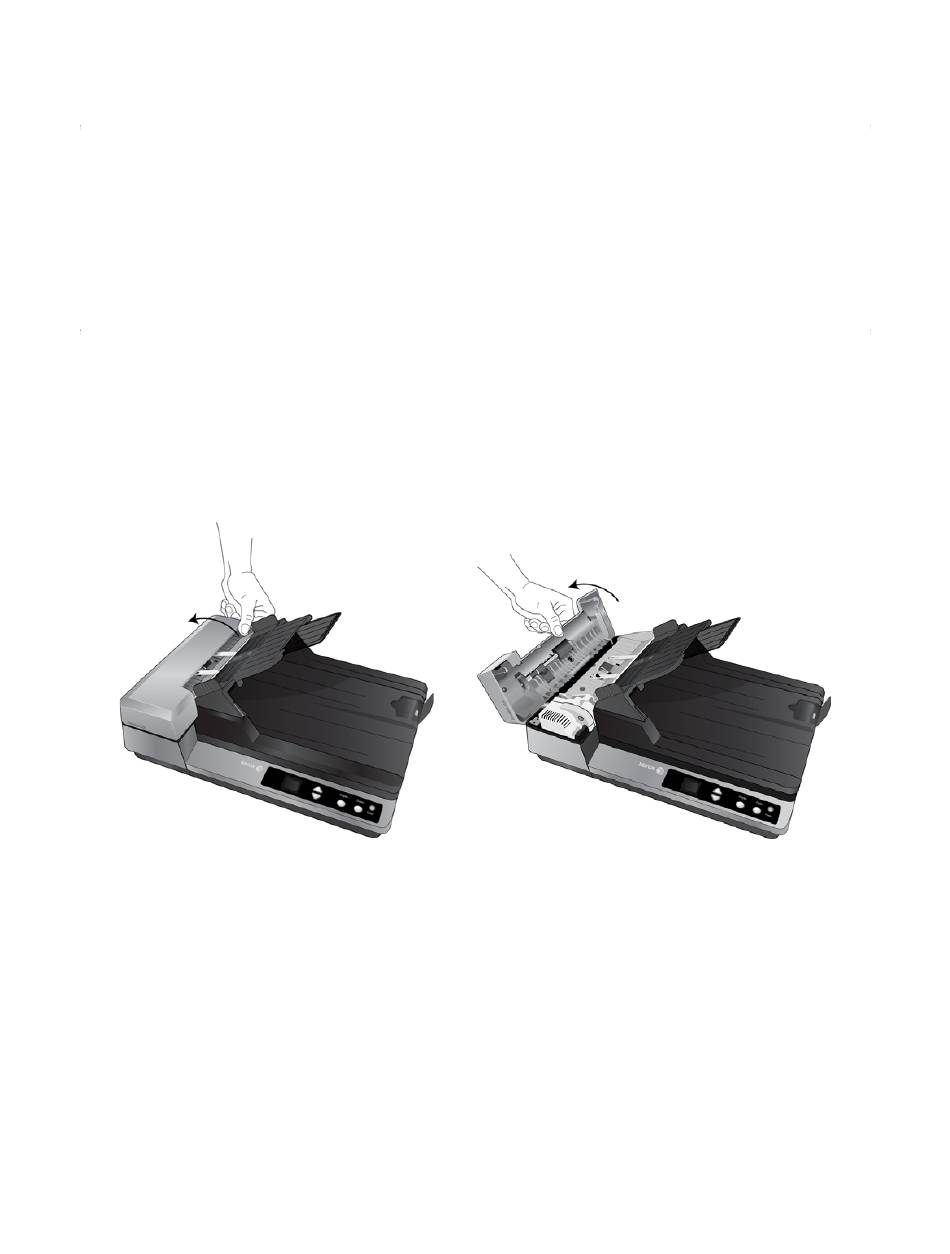

2. Pull on the ADF cover to open the scanner.
3. Wipe the feed roller from side to side. Rotate the roller to clean its entire surface.
The feed roller is located in the underside of the ADF door.
Please be careful when cleaning the roller. The roller is designed to rotate in one direction only.
NOTE:
As you're cleaning the roller, make sure it rotates easily, and continue rotating it in that direction while
wiping it clean. Do NOT force the roller to rotate in the opposite direction. Forcing the roller to rotate
will damage it, and may cause the scanner to feed pages incorrectly.
4. Wipe the ADF pad from top to bottom. Be careful not to snag the cloth on the springs on either
side of the pad.
The ADF pad is located on the top of the duplex lamp module.
