Maintenance
To Replace the roller assembly:

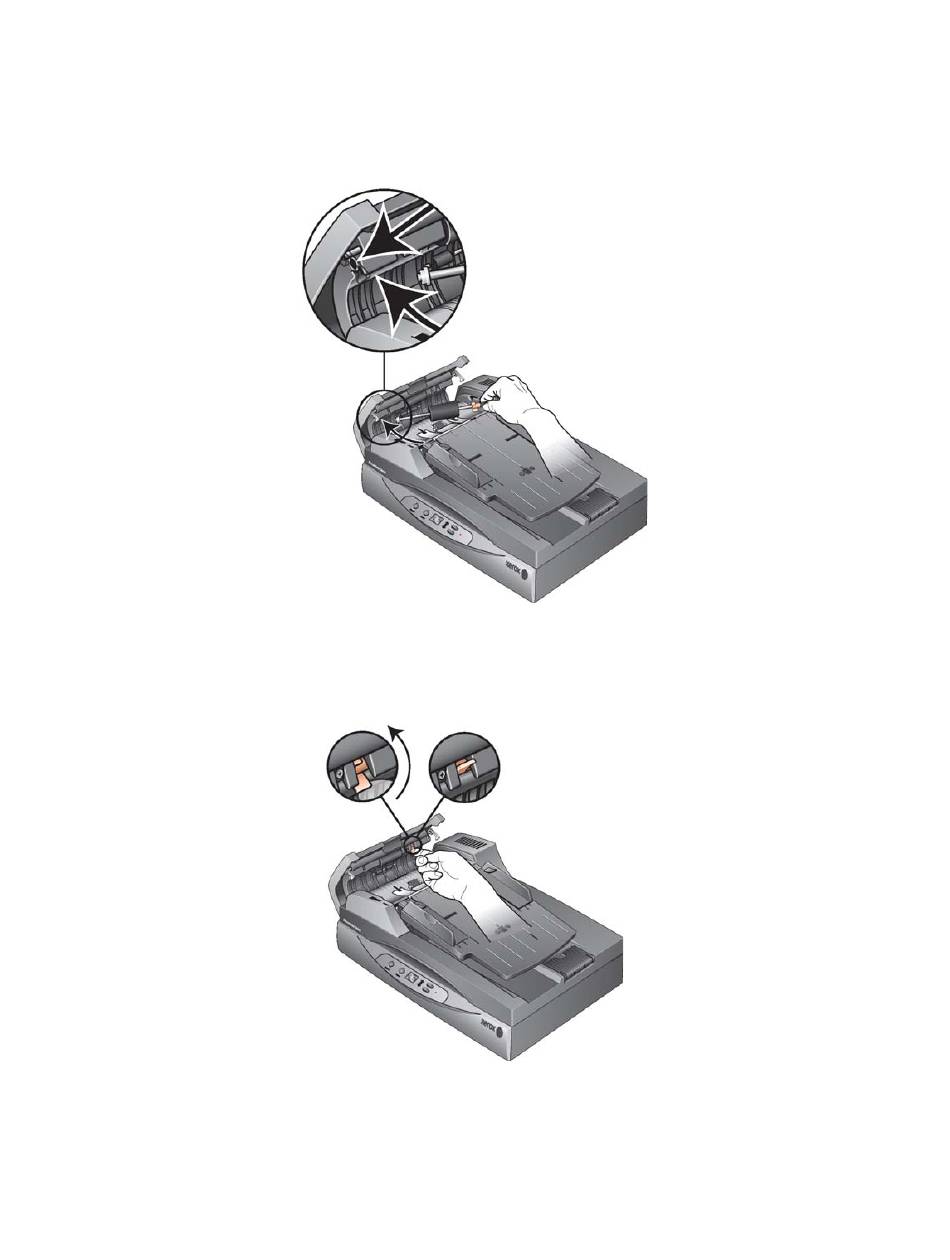

1. Hold the roller by its right hand side and slide the left hand side into its housing. Make sure the
small wheel on the left end of the roller seats properly into its housing.
2. Angle the roller up and into its channel. Make sure the wheel on the left hand side remains seated
in its housing.
3. Push the locking flange up to lock the roller in place.
4. Close the ADF cover.
Your scanner is now ready to scan with its new roller assembly.
