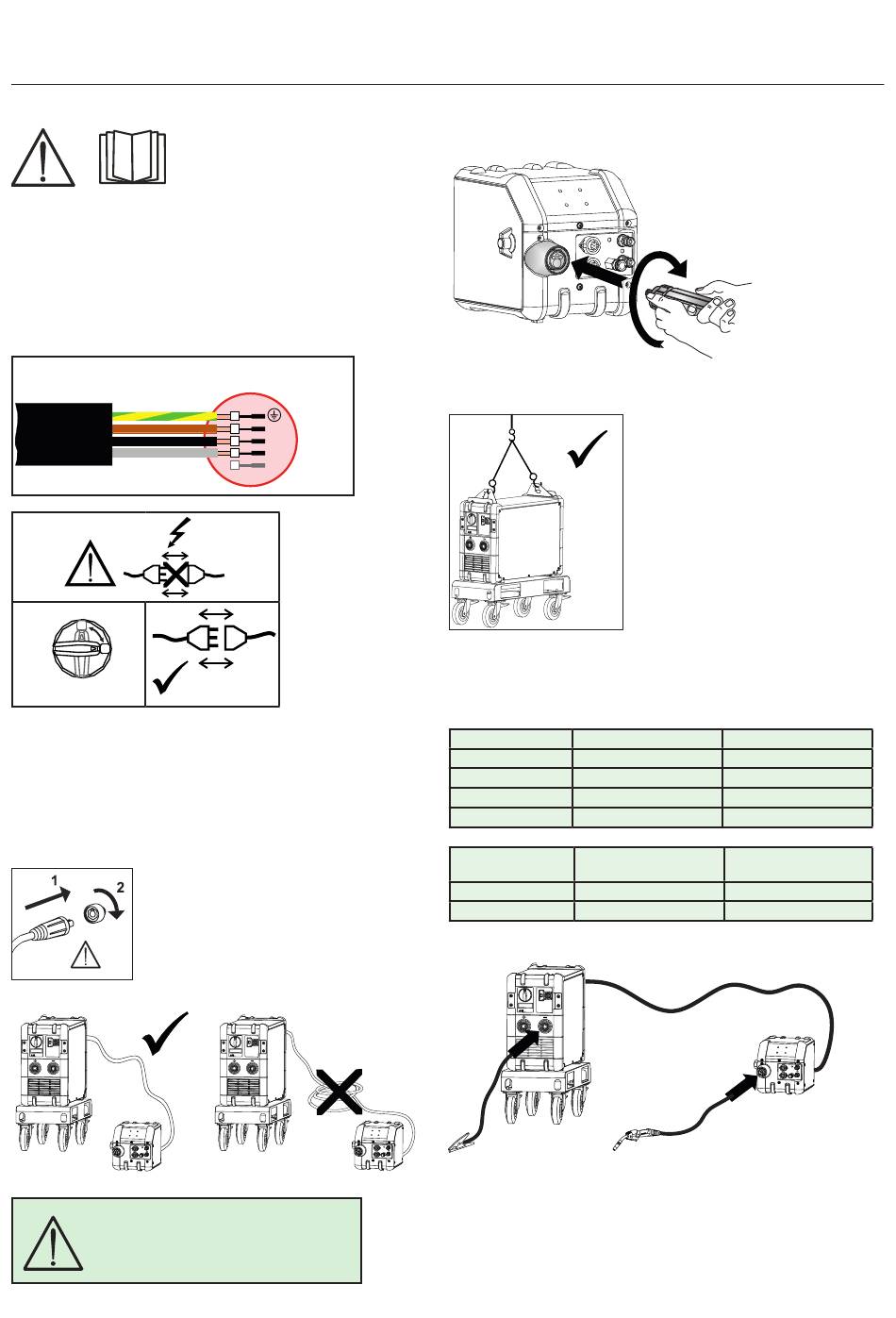

Connection and operation

Warning
Read warning notice and instruction
manual carefully prior to initial
operation and save the information
for later use.
Permissible installation
Mains connection
Connect the machine to the correct mains supply. Please read
the type plate (U ) on the rear side of the machine.
1
yellow/green
brown
black
grey
0
1
1
Connection of shielding gas
Connect the gas hose, which branches off from the back panel
of the welding machine (3), to a gas supply with pressure
regulator (2-6 bar). (Note: Some types of pressure regulators
require an output pressure of more than 2 bar to function
optimally).
Important!
In order to avoid destruction of plugs and
cables, good electric contact is required
when connecting earth cables and welding
hoses to the machine.
WARNING
When you activate the torch trigger,
there is voltage applied to the welding
wire and electrode.
3x400V
3x208-440V (boost)
L1
L2
L3
N
2
Connection of welding hose
Recommended cable dimensions
Welding current DC
200 A 35 mm²
300 A 50 mm²
400 A 95 mm² / 2x50 mm²
550 A 2x70 mm²
Welding process Distance to work piece
MIG - IAC and pulse 10 m
MIG - non pulse 30 m
c
11
Lift instructions
(Lifting kit no. 78857054)
PULSE
35 mm²
70 mm²
95 mm² / 2x50 mm²
2x70 mm²
Total cable length in
(a+b) welding circuit (a+b+c)
20 m
60 m
a
b
