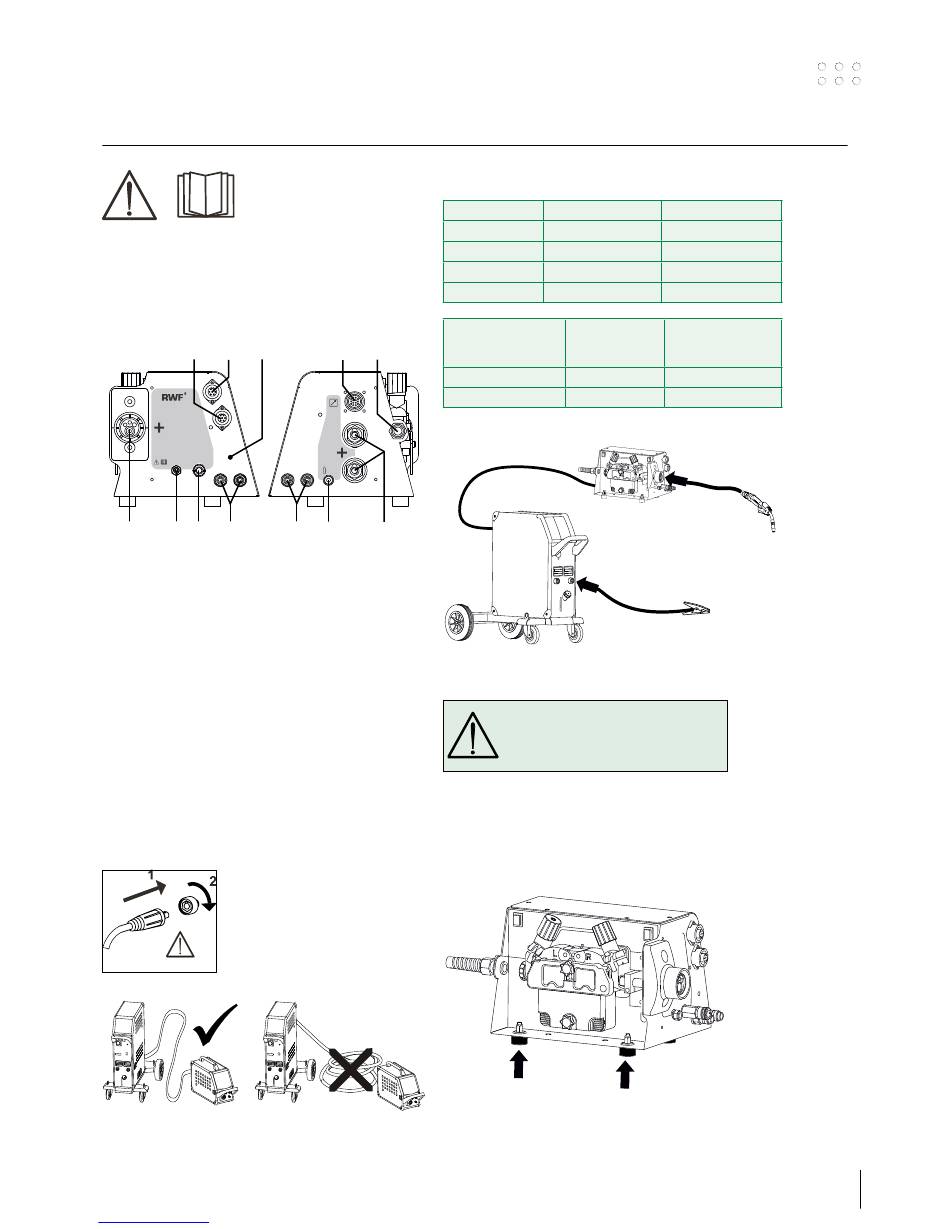

Connection and operation
Connection
AIR Clean
Max.8 bar
9
2
1.
Compressed air connection - (not all models)
AIR Clean (max 8 bar) – Inlet
2.
Compressed air connection - (not all models)
AIR Clean (max 8 bar) – Outlet
3.
CAN-plug
4.
Gas connection
5.
Power +
6.
Torch cooling connection (not all models)
7.
Status indicator
8.
Wire inlet
9.
Torch connection
10. Collision protection signal to robot controller
11. Torch collision protection and touch sense
connection
Downloaded from
www.Manualslib.com
Warning
Read warning notice and
instruction manual carefully
prior to initial operation and
save the information for later
use.
11
10
7
3
Min 2 bar
Max 6 bar
1
6
6
4
Important!
In order to avoid destruction
of plugs and cables, good
electric contact is required
when connecting earth cables
and intermediary cables to the
machine.
manuals search engine
Cable dimensions
Welding current DC
200 A
35 mm²
300 A
50 mm²
400 A
95 mm² / 2x50 mm²
500 A
2x70 mm²
Welding process
8
MIG - IAC and pulse
MIG - non pulse
a
5
WARNING
When you activate the torch trigger,
there is voltage applied to the
welding wire.
Note!
Use rubber feet (45070026) as galvanic separator
between the RWF² casing and the unit on which it is
mounted.
PULSE
35 mm²
70 mm²
95 mm² / 2x50 mm²
2x70 mm²
Distance to
Total cable length
work piece
in welding circuit
(a+b)
(a+b+c)
10 m
20 m
30 m
60 m
b
c
7
